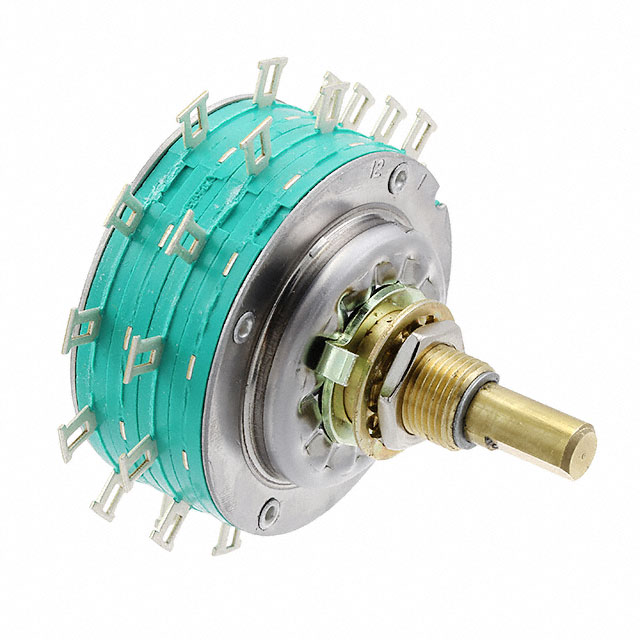

C7D0212 Series
Manufacturer: Electroswitch
Beta
⌘K
SWITCH ROTARY 12POS 500MA 125V
| Part | Panel Cutout Dimensions [diameter] | Termination Style | Number of Positions | Contact Timing | Contact Finish | Voltage Rating - AC | Index Stops | Actuator Type | Actuator Length [x] | Number of Decks | Number of Poles per Deck | Current Rating (Amps) | Circuit per Deck | Angle of Throw | Contact Material | Depth Behind Panel [z] | Voltage Rating - DC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 9.78 mm | Solder Lug | 12 | Non-Shorting (BBM) | Silver | 125 V | Continuous | Flatted (6.35mm Dia) | 14.29 mm | 2 | 1 | 1 A 500 mA | SP12T | 30 ° | Brass | 32.49 mm | 28 V | Panel Mount |
 Electroswitch | 9.78 mm | Solder Lug | 12 | Shorting (MBB) | Silver | 125 V | Fixed | Flatted (6.35mm Dia) | 14.29 mm | 2 | 1 | 1 A 500 mA | SP12T | 30 ° | Brass | 32.49 mm | 28 V | Panel Mount |
 Electroswitch | 9.78 mm | Solder Lug | 12 | Non-Shorting (BBM) | Silver | 125 V | Fixed | Flatted (6.35mm Dia) | 14.29 mm | 2 | 1 | 1 A 500 mA | SP12T | 30 ° | Brass | 32.49 mm | 28 V | Panel Mount |
