QLC260 Series

Catalog

CONN RCPT 260POS PCB

Part	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions Loaded	Features	Pitch	Pitch	Connector Type	Mounting Type	Connector Usage
ITT Cannon, LLC QLC260R1-M01	0.5 A	85 °C	-50 °C	260	Gold	40 Áin	1.02 Ám	Solder	All	Actuating Camshaft Shielding Cup Zero Insertion Force (ZIF)	0.8 mm	0.031 in	Receptacle Female Sockets	Through Hole

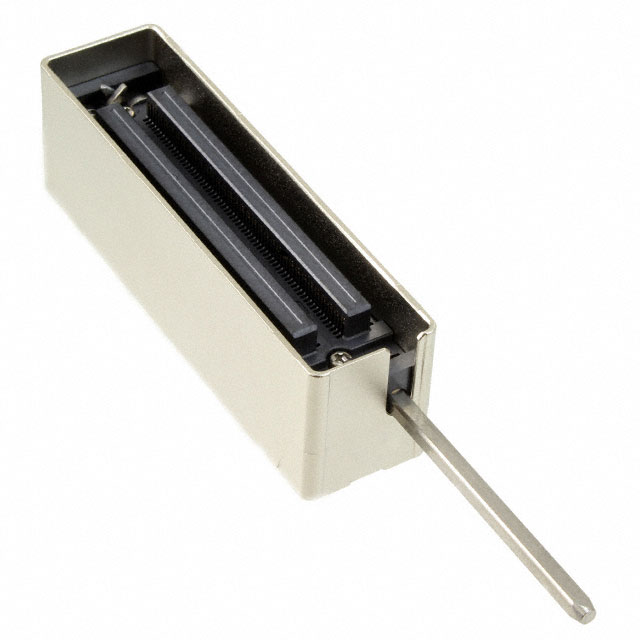

ITT Cannon, LLC QLC260R	0.5 A	85 °C	-50 °C	260	Gold	40 Áin	1.02 Ám	Solder	All	Actuating Camshaft Shielding Cup Zero Insertion Force (ZIF)	0.8 mm	0.031 in	Receptacle Female Sockets	Through Hole
ITT Cannon, LLC QLC260R-PF	0.5 A	85 °C	-50 °C	260	Gold	40 Áin	1.02 Ám	Solder	All	Actuating Camshaft Shielding Cup Zero Insertion Force (ZIF)	0.8 mm	0.031 in	Receptacle Female Sockets	Through Hole
ITT Cannon, LLC QLC260R PARKING	0.5 A	85 °C	-50 °C	260	Gold	40 Áin	1.02 Ám	Solder	All	Actuating Camshaft Shielding Cup Zero Insertion Force (ZIF)	0.8 mm	0.031 in	Receptacle Female Sockets	Through Hole

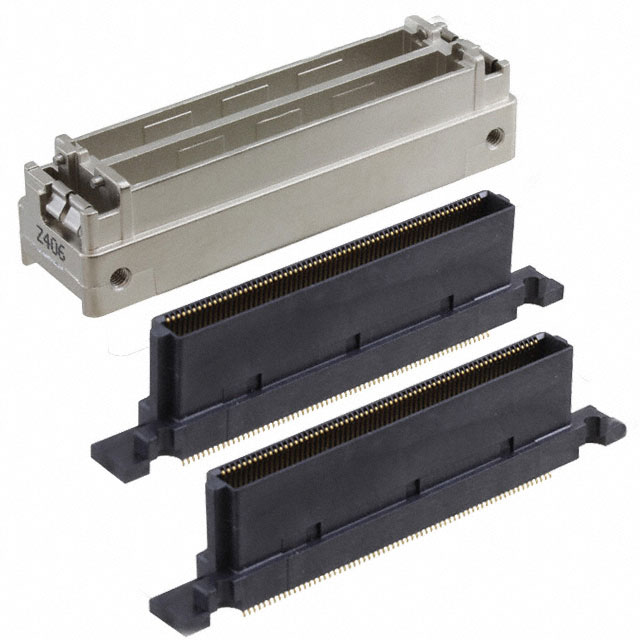

ITT Cannon, LLC QLC260P	0.5 A	85 °C	-55 C	260	Gold	40 Áin	1.02 Ám	Solder	All	Actuating Camshaft Socket Shielding Zero Insertion Force (ZIF)	0.8 mm	0.031 in	Plug Male Pins		Daughtercard
ITT Cannon, LLC QLC260R1	0.5 A	85 °C	-50 °C	260	Gold	40 Áin	1.02 Ám	Solder	All	Actuating Camshaft Shielding Cup Zero Insertion Force (ZIF)	0.8 mm	0.031 in	Receptacle Female Sockets	Through Hole
