ALCOSWITCH MTG Series

Catalog

SWITCH TOGGLE (ON) OFF (ON) SPDT SHORT LEVER WIRE LUG 6A 250VAC 28VDC PANEL MOUNT WITH THREADS

Part	Switch Function	Features	Current Rating (Amps)	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Mounting Type	Circuit	Actuator Length [x]	Voltage Rating - DC	Bushing Thread	Voltage Rating - AC	Actuator Type	Actuator Material	Electrical Life	Panel Cutout Dimensions [diameter]

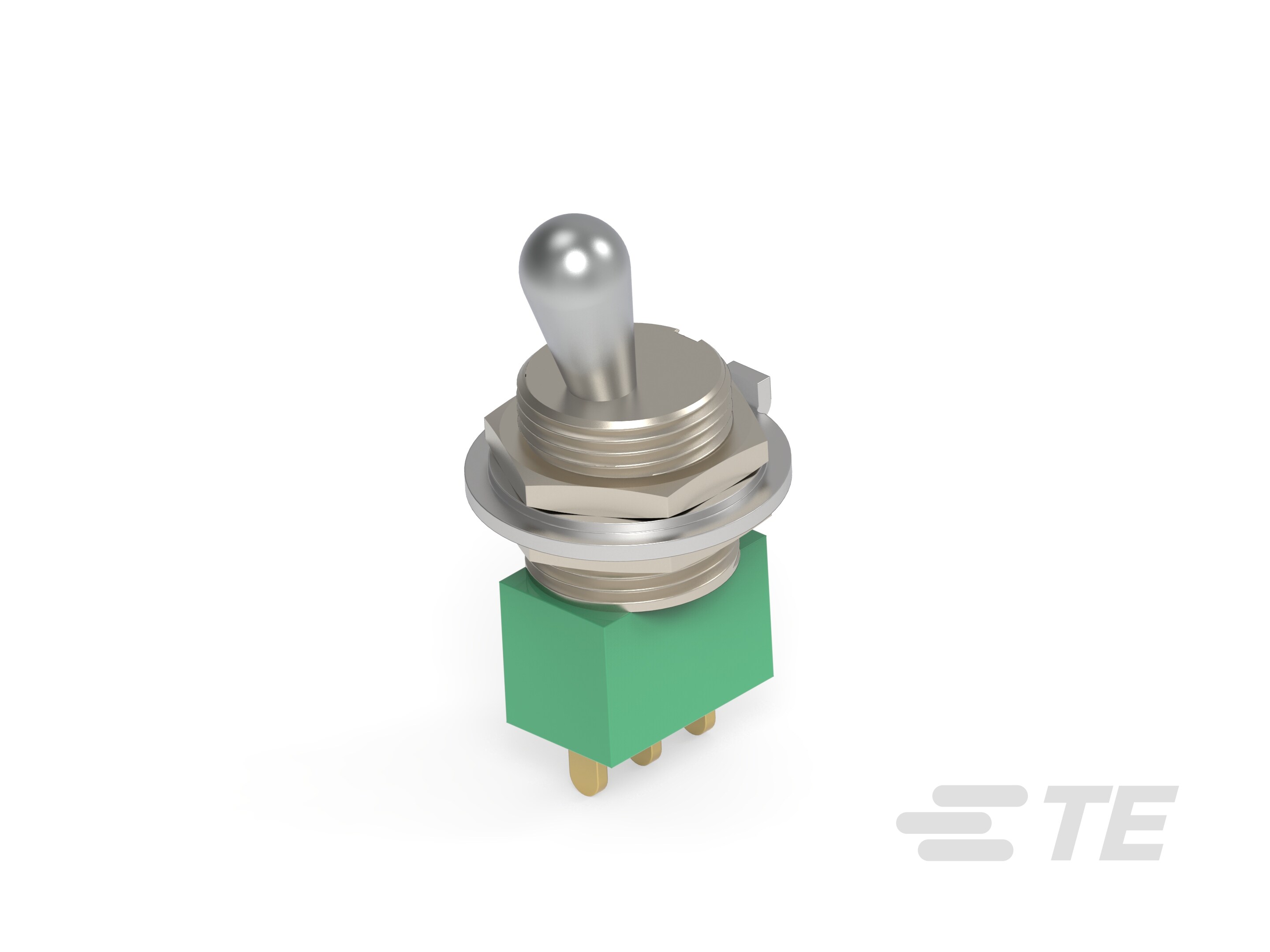

TE Connectivity AMP Connectors MTG106G	Mom-Off-Mom	Epoxy Sealed Terminals	4 A 6 A	Solder Lug	80 °C	-20 ░C	Non-Illuminated	Panel Mount	SPDT	11.5 mm	28 V	15/32-32	125 V	Standard Round
TE Connectivity AMP Connectors MTG206P	On-Off-On	Epoxy Sealed Terminals	4 A 6 A	Solder Lug	80 °C	-20 ░C	Non-Illuminated	Panel Mount	DPDT	11.5 mm	28 V	15/32-32	125 V	Standard Round
TE Connectivity AMP Connectors MTG306D	On-On	Epoxy Sealed Terminals	4 A 6 A	Solder Lug	80 °C	-20 ░C	Non-Illuminated	Panel Mount	3PDT	11.5 mm	28 V	15/32-32	125 V	Standard Round	Brass Nickel Plated

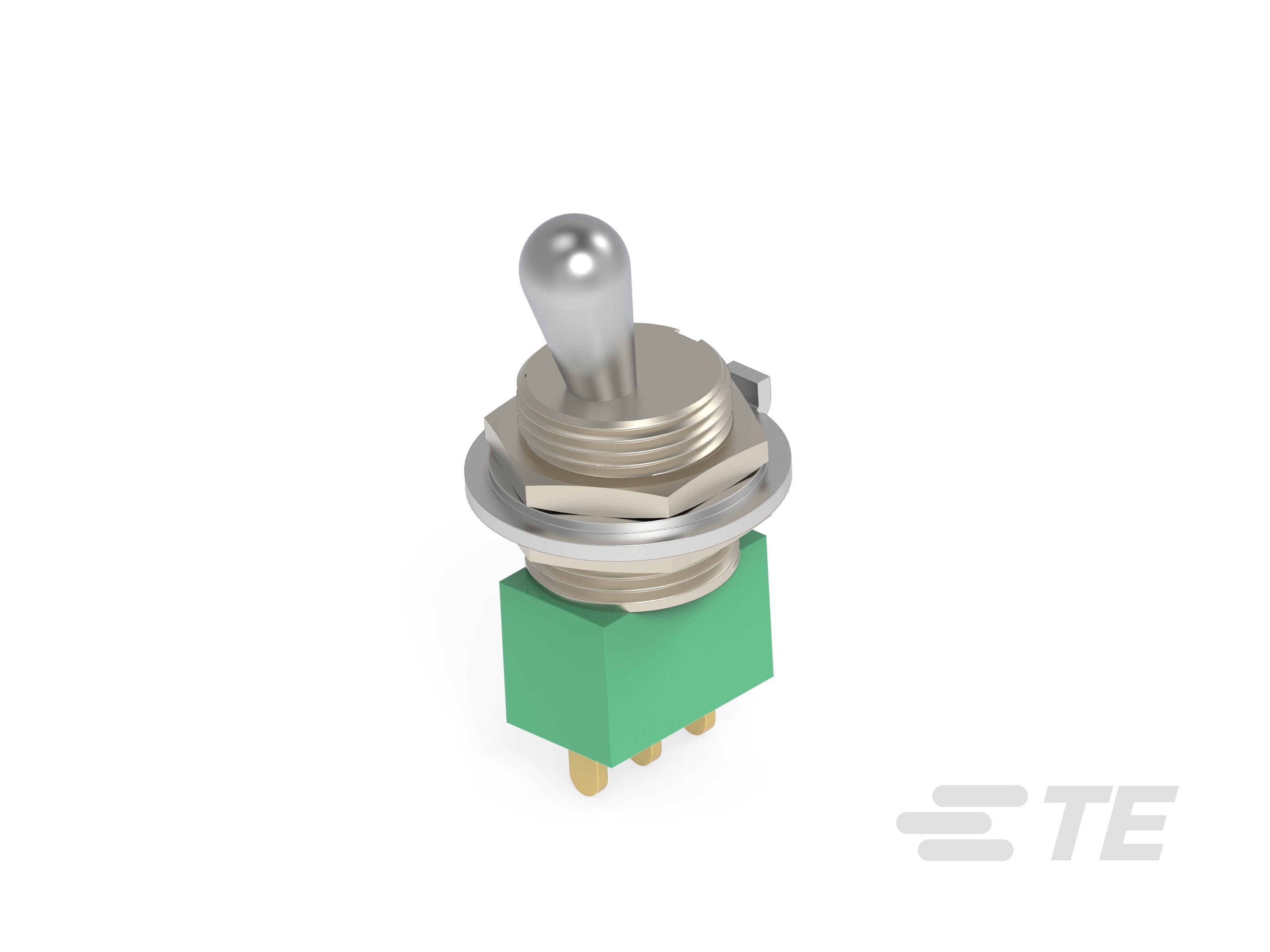

TE Connectivity AMP Connectors MTG106F	On-Mom	Epoxy Sealed Terminals	4 A 6 A	Solder Lug	80 °C	-20 ░C	Non-Illuminated	Panel Mount	SPDT	11.5 mm	28 V	15/32-32	125 V	Standard Round	Brass Nickel Plated

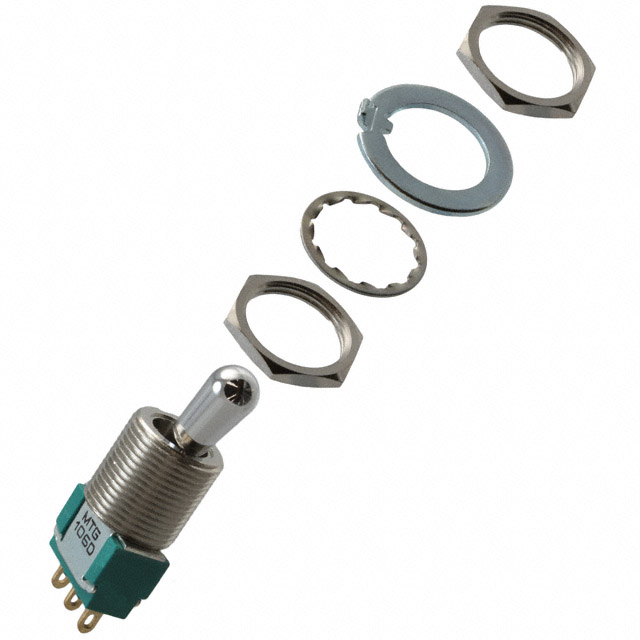

TE Connectivity AMP Connectors MTG106D	On-On	Epoxy Sealed Terminals	4 A 6 A	Solder Lug	80 °C	-20 ░C	Non-Illuminated	Panel Mount	SPDT	11.5 mm	28 V	15/32-32	125 V	Standard Round	Copper Alloy Chrome Plated	80000 Cycles	11.94 mm
TE Connectivity AMP Connectors MTG206N	On-On	Epoxy Sealed Terminals	4 A 6 A	Solder Lug	80 °C	-20 ░C	Non-Illuminated	Panel Mount	DPDT	11.5 mm	28 V	15/32-32	125 V	Standard Round			11.94 mm
