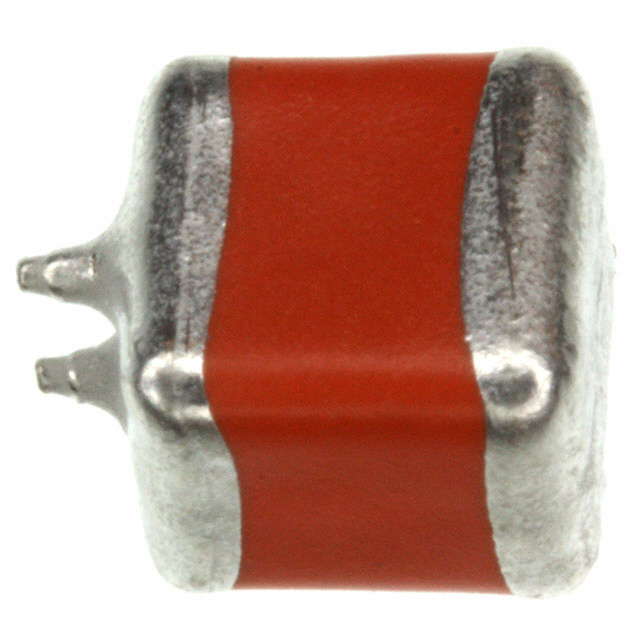

597D Series

Catalog

SURFACE MOUNT TANTALUM CAPACITOR, TANTAMOUNTR, 597D SERIES, 470 F, 20%, 4 V, 3017 [7543 METRIC]

Part	Operating Temperature (Max)	Operating Temperature (Min)	Capacitance	Package / Case	Features	Mounting Type	Manufacturer Size Code	Tolerance	ESR (Equivalent Series Resistance)	Height - Seated (Max)	Type	Size / Dimension Width	Size / Dimension Length	Voltage - Rated
Vishay Dale 597D477X0004V2T	125 °C	-55 °C	470 µF	2917 (7343 Metric)	General Purpose	Surface Mount	V	20 %	30 mOhm	0.079 in	Conformal Coated	0.173 in	0.299 in	4 V
Vishay Dale 597D687X9016H2T	125 °C	-55 °C	680 µF	Nonstandard	General Purpose	Surface Mount	D	10 %	80 mOhm	0.138 in	Conformal Coated	0.173 in	0.299 in	16 V
Vishay Dale 597D337X0010E2T	125 °C	-55 °C	330 µF	2917 (7343 Metric)	General Purpose	Surface Mount	E	20 %	35 mOhm	0.173 in	Conformal Coated	0.173 in	0.299 in	10 V
Vishay Dale 597D336X0050F2T	125 °C	-55 °C	33 µF	2924 (7361 Metric)	General Purpose	Surface Mount	F	20 %	150 mOhm	0.203 in	Conformal Coated	0.236 in	0.299 in	50 V
Vishay Dale 597D477X96R3E2T	125 °C	-55 °C	470 µF	2917 (7343 Metric)	General Purpose	Surface Mount	E	10 %	30 mOhm	0.173 in	Conformal Coated	0.173 in	0.299 in	6.3 V
Vishay Dale 597D337X9016F2T
Vishay Dale 597D108X0004E2T	125 °C	-55 °C	1000 µF	3017 (7644 Metric)	General Purpose	Surface Mount	E	20 %	20 mOhm	0.173 in	Conformal Coated	0.173 in	0.299 in	4 V
