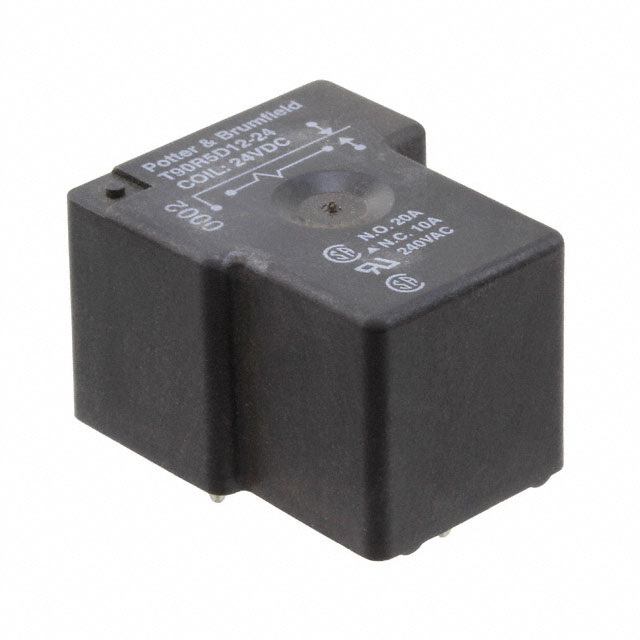

T90R5 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY PWR 277V
| Part | Coil Resistance | Contact Material | Must Operate Voltage | Contact Form | Coil Insulation | Coil Type | Release Time | Switching Voltage [Max] | Must Release Voltage | Operate Time | Contact Rating (Current) | Mounting Type | Coil Current | Approval Agency | Coil Voltage | Load - Max Switching | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 660 Ohms | Silver Cadmium Oxide (AgCdO) | 18 VDC | SPDT (1 Form C) | Class F | Non Latching | 15 ms | 277 VAC | 2.4 VDC | 15 ms | 30 A | Through Hole | 36.4 mA | CSA UR | 24 VDC | 4155 VA | PC Pin | -55 C | 85 °C | General Purpose |
