FI-S8 Series

Catalog

CONN HEADER SMD R/A 8POS 1.25MM

Part	Voltage Rating	Material Flammability Rating	Number of Positions Loaded	Shrouding	Termination	Mounting Type	Current Rating (Amps)	Contact Shape	Contact Material	Contact Finish - Mating	Contact Finish - Post	Connector Type	Contact Type	Fastening Type	Features	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Style	Insulation Height	Insulation Height	Note	Pitch	Pitch	Color	Insulation Material	Contact Termination
JAE Electronics FI-S8P-HFE-E1500	200 V	UL94 V-0	All	Shrouded - 4 Wall	Solder	Right Angle Surface Mount	1 A	Square	Copper Alloy	Gold	Tin Tin-Alloy	Receptacle	Male Pin	Friction Lock	Solder Retention	Beige	0.049 in	1.25 mm	8	1	80 °C	-40 C	Board to Cable/Wire	1.8 mm	0.071 in

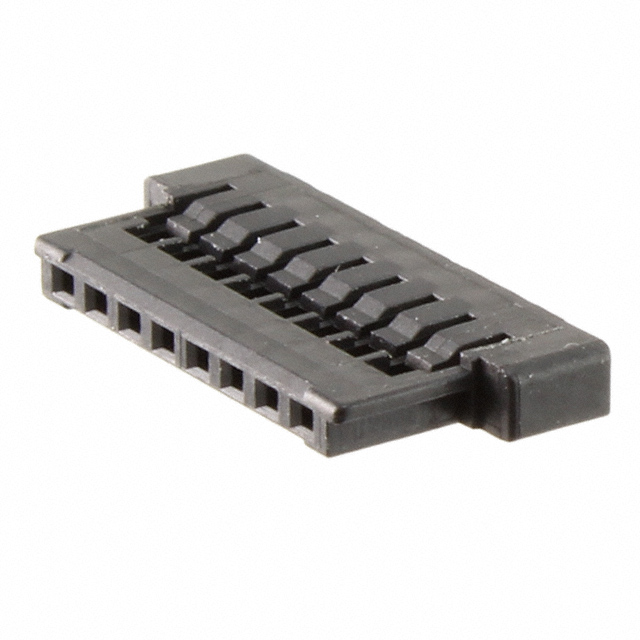

JAE Electronics FI-S8S						Free Hanging (In-Line)						Plug	Female Socket	Friction Lock					8	1						Contacts Not Included	0.049 in	1.25 mm	Black	Glass Filled Nylon 6/6 Polyamide (PA66)	Crimp

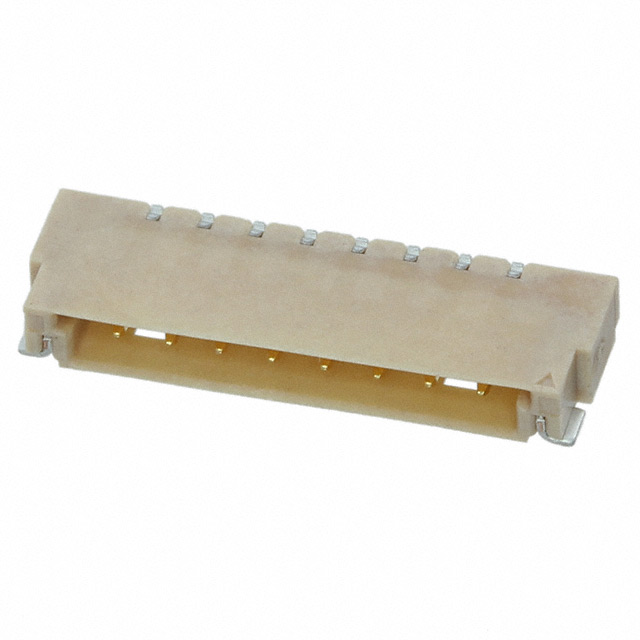

JAE Electronics FI-S8P-HFE	200 V	UL94 V-0	All	Shrouded - 4 Wall	Solder	Right Angle Surface Mount	1 A	Square	Copper Alloy	Gold	Tin Tin-Alloy	Receptacle	Male Pin	Friction Lock	Solder Retention	Beige	0.049 in	1.25 mm	8	1	80 °C	-40 C	Board to Cable/Wire	1.8 mm	0.071 in
