MS3102R22 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT FMALE 5P SILV SLDR CUP

Part	Termination	Ingress Protection	Shell Size - Insert Length	Shell Size - Insert Width	Contact Material	Fastening Type	Color	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Orientation	Mounting Type	Connector Type	Insert Material	Shell Finish	Shell Material	Grade	Mounting Feature	Primary Material	Number of Positions	Cable Opening	Contact Finish - Mating	Shielding	Qualification	Current Rating
Amphenol Aerospace Operations MS3102R22-12S	Solder Cup	Environment Resistant	22 mm	12 mm	Copper Alloy	Threaded	Olive Drab	125 °C	-55 °C	Marine Military	N (Normal)	Panel Mount	Female Sockets Receptacle	Neoprene	Cadmium Olive Drab Chromate	Aluminum Alloy	Military	Flange	Metal	5	1.25 in	Silver	Unshielded	MIL-DTL-5015

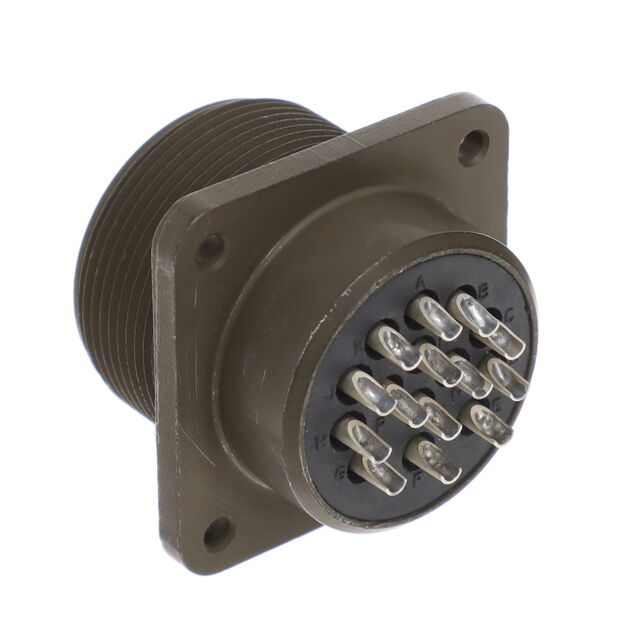

Amphenol Aerospace Operations MS3102R22-19S	Solder Cup	Environment Resistant	22 mm	19 mm	Copper Alloy	Threaded	Olive Drab	125 °C	-55 °C	Marine Military	N (Normal)	Panel Mount	Female Sockets Receptacle	Neoprene	Cadmium Olive Drab Chromate	Aluminum Alloy	Military	Flange	Metal	14		Silver	Unshielded	MIL-DTL-5015	13 A
Amphenol Aerospace Operations MS3102R22-19P	Solder Cup	Environment Resistant	22 mm	19 mm	Copper Alloy	Threaded	Olive Drab	125 °C	-55 °C	Marine Military	N (Normal)	Panel Mount	Male Pins Receptacle	Neoprene	Cadmium Olive Drab Chromate	Aluminum Alloy	Military	Flange	Metal	14		Silver	Unshielded	MIL-DTL-5015	13 A
Amphenol Aerospace Operations MS3102R22-15S
Amphenol Aerospace Operations MS3102R22-15P
Amphenol Aerospace Operations MS3102R22-10PX	Solder Cup	Environment Resistant	22 mm	10 mm	Copper Alloy	Threaded	Olive Drab	125 °C	-55 °C	Marine Military	X	Panel Mount	Male Pins Receptacle	Neoprene	Cadmium Olive Drab Chromate	Aluminum Alloy	Military	Flange	Metal	4	1.25 in	Silver	Unshielded	MIL-DTL-5015
Amphenol Aerospace Operations MS3102R22-2P	Solder Cup	Environment Resistant	22 mm	2 mm	Copper Alloy	Threaded	Olive Drab	125 °C	-55 °C	Marine Military	N (Normal)	Panel Mount	Male Pins Receptacle	Neoprene	Cadmium Olive Drab Chromate	Aluminum Alloy	Military	Flange	Metal	3	1.25 in	Silver	Unshielded	MIL-DTL-5015
Amphenol Aerospace Operations MS3102R22-16P
Amphenol Aerospace Operations MS3102R22-5S
Amphenol Aerospace Operations MS3102R22-6P
