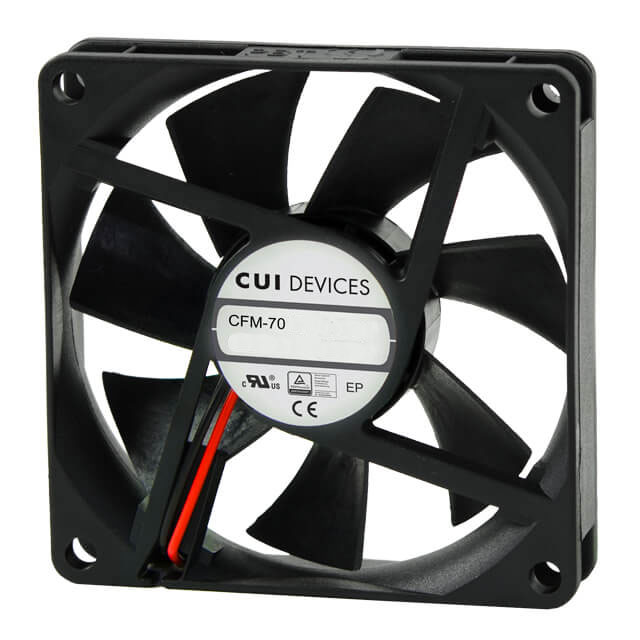

CFM-7015 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

FAN AXIAL 70X15MM 12VDC WIRE

Part	Features	Width [y]	Static Pressure	Static Pressure	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Fan Type	Material - Blade	RPM	Noise	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Weight	Weight	Current Rating (Amps)	Termination	Lifetime @ Temp.
Same Sky (Formerly CUI Devices) CFM-7015V-128-265-20	Auto Restart Speed Sensor (Tach)	15 mm	0.09 in H2O	22.4 Pa	0.644 m³/min	23 CFM	4.5 V	13.8 VDC	12 VDC	Tubeaxial	Polybutylene Terephthalate (PBT)	2800 RPM	26.5 dB	70 mm	70 mm	CE cURus TUV	70 °C	-10 °C	1.04 W	0.091 lb	41.28 g	0.086 A	3 Wire Leads	70000 Hrs
Same Sky (Formerly CUI Devices) CFM-7015V-128-265	Auto Restart	15 mm	0.09 in H2O	22.4 Pa	0.644 m³/min	23 CFM			12 VDC	Tubeaxial		2800 RPM	26.5 dB	70 mm	70 mm	CE cURus TUV	70 °C	-10 °C	1.04 W	0.091 lb	41.28 g		2 Wire Leads
Same Sky (Formerly CUI Devices) CFM-7015V-128-265-11	Auto Restart	15 mm	0.09 in H2O	22.4 Pa	0.644 m³/min	23 CFM	4.5 V	13.8 VDC	12 VDC	Tubeaxial	Polybutylene Terephthalate (PBT)	2800 RPM	26.5 dB	70 mm	70 mm	CE cURus TUV	70 °C	-10 °C	1.04 W	0.091 lb	41.28 g	0.086 A	3 Wire Leads	70000 Hrs
Same Sky (Formerly CUI Devices) CFM-7015V-123-215-20	Auto Restart Speed Sensor (Tach)	15 mm	0.07 in H2O	17.4 Pa	0.532 m³/min	19 CFM	6 VDC	13.8 VDC	12 VDC	Tubeaxial	Polybutylene Terephthalate (PBT)	2300 RPM	21.5 dB(A)	70 mm	70 mm	CE cURus TUV	70 °C	-10 °C	660 mW	0.091 lb	41.28 g	0.055 A	3 Wire Leads	70000 Hrs
Same Sky (Formerly CUI Devices) CFM-7015V-128-265	Auto Restart	15 mm	0.09 in H2O	22.4 Pa	0.644 m³/min	23 CFM	4.5 V	13.8 VDC	12 VDC	Tubeaxial	Polybutylene Terephthalate (PBT)	2800 RPM	26.5 dB	70 mm	70 mm	CE cURus TUV	70 °C	-10 °C	1.04 W	0.091 lb	41.28 g	0.086 A	2 Wire Leads	70000 Hrs
Same Sky (Formerly CUI Devices) CFM-7015V-123-215-20	Auto Restart Speed Sensor (Tach)	15 mm	0.07 in H2O	17.4 Pa	0.532 m³/min	19 CFM			12 VDC	Tubeaxial		2300 RPM	21.5 dB(A)	70 mm	70 mm	CE cURus TUV	70 °C	-10 °C	660 mW	0.091 lb	41.28 g		3 Wire Leads
Same Sky (Formerly CUI Devices) CFM-7015V-133-315-20	Auto Restart Speed Sensor (Tach)	15 mm	0.11 in H2O	27.4 Pa	0.756 m³/min	27 CFM			12 VDC	Tubeaxial		3300 RPM	31.5 dB	70 mm	70 mm	CE cURus TUV	70 °C	-10 °C	1.56 W	0.091 lb	41.28 g		3 Wire Leads
Same Sky (Formerly CUI Devices) CFM-7015V-128-265-11	Auto Restart	15 mm	0.09 in H2O	22.4 Pa	0.644 m³/min	23 CFM			12 VDC	Tubeaxial		2800 RPM	26.5 dB	70 mm	70 mm	CE cURus TUV	70 °C	-10 °C	1.04 W	0.091 lb	41.28 g		3 Wire Leads
Same Sky (Formerly CUI Devices) CFM-7015V-128-265-20	Auto Restart Speed Sensor (Tach)	15 mm	0.09 in H2O	22.4 Pa	0.644 m³/min	23 CFM			12 VDC	Tubeaxial		2800 RPM	26.5 dB	70 mm	70 mm	CE cURus TUV	70 °C	-10 °C	1.04 W	0.091 lb	41.28 g		3 Wire Leads
Same Sky (Formerly CUI Devices) CFM-7015V-133-315	Auto Restart	15 mm	0.11 in H2O	27.4 Pa	0.756 m³/min	27 CFM			12 VDC	Tubeaxial		3300 RPM	31.5 dB	70 mm	70 mm	CE cURus TUV	70 °C	-10 °C	1.56 W	0.091 lb	41.28 g		2 Wire Leads
