DPP120 Series

Catalog

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 120 W, 24 VDC, 5 A

Part	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Approval Agency	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Voltage - Isolation	Features	Number of Outputs	Power (Watts)	Input Type	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Current - Output (Max) [Max]
TDK Corporation DPP120-24-3	ITE (Commercial)	-40 °C	71 °C	5 A	CE	24 V	4.88 in	118.9 mm	4.68 "	124 mm	2.92 "	74.2 mm	87 %	3000 V	Adjustable Output Load Sharing	1	120 W	AC	340 VAC	575 VAC

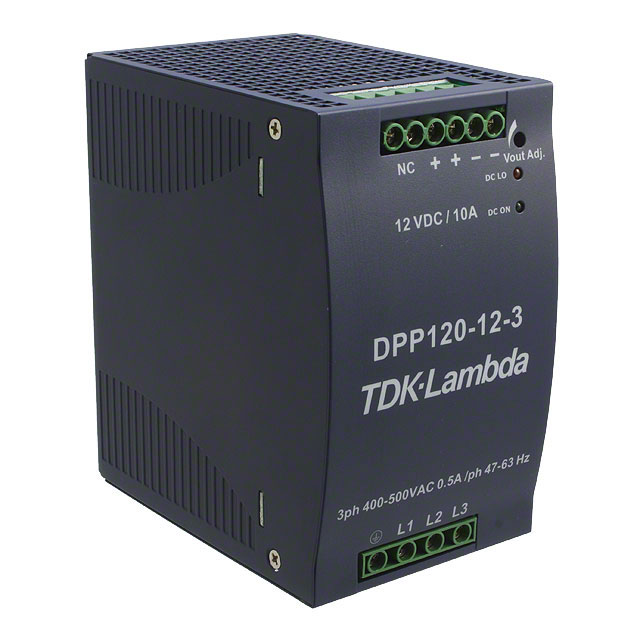

TDK Corporation DPP120-12-3	ITE (Commercial)	-40 °C	71 °C		CE	12 V	4.88 in	118.9 mm	4.68 "	124 mm	2.92 "	74.2 mm	87 %	3000 V	Adjustable Output Load Sharing	1	120 W	AC	340 VAC	575 VAC	10 A
TDK Corporation DPP120-48-1	ITE (Commercial)	-40 °C	71 °C		CE	48 V	4.92 in	116.6 mm	4.59 in	125 mm	2.5 "	63.5 mm	87 %	3000 V	Adjustable Output Load Sharing	1	120 W	AC	85 VAC 176 VAC	132 VAC 264 VAC	2.5 A
TDK Corporation DPP120-24-1	ITE (Commercial)	-40 °C	71 °C	5 A	CE	24 V	4.92 in	116.6 mm	4.59 in	125 mm	2.5 "	63.5 mm	86 %	3000 V	Adjustable Output Load Sharing	1	120 W	AC	85 VAC 176 VAC	132 VAC 264 VAC
TDK Corporation DPP120-12-1	ITE (Commercial)	-40 °C	71 °C		CE	12 V	4.92 in	116.6 mm	4.59 in	125 mm	2.5 "	63.5 mm	84 %	3000 V	Adjustable Output Load Sharing	1	120 W	AC	85 VAC 176 VAC	132 VAC 264 VAC	10 A
