ABM2 Series
Manufacturer: Abracon LLC
Beta
⌘K

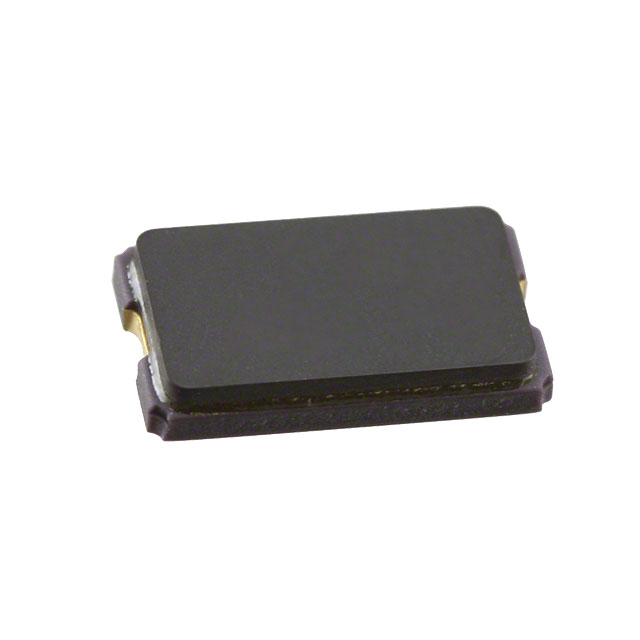

CRYSTAL, 25MHZ, 18PF, SMD, 8MM X 4.5MM ROHS COMPLIANT: YES
| Part | Type | Operating Temperature [Max] | Operating Temperature [Min] | Operating Mode | Frequency Stability | Supplier Device Package | Frequency | Height - Seated (Max) | Height - Seated (Max) [Max] | Package / Case | Load Capacitance | Mounting Type | Frequency Tolerance | ESR (Equivalent Series Resistance) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | MHz Crystal | 85 °C | -40 C | Fundamental | 30 ppm | 2-SMD (8x4.5) | 25 MHz | 1.8 mm | 0.081 " | 2-SMD No Lead | 18 pF | Surface Mount | 30 ppm | 50 Ohms | 4.5 mm | 0.177 " | 8 mm | 0.315 in |
