QPS3480 Series
Manufacturer: NetPower
Beta
⌘K

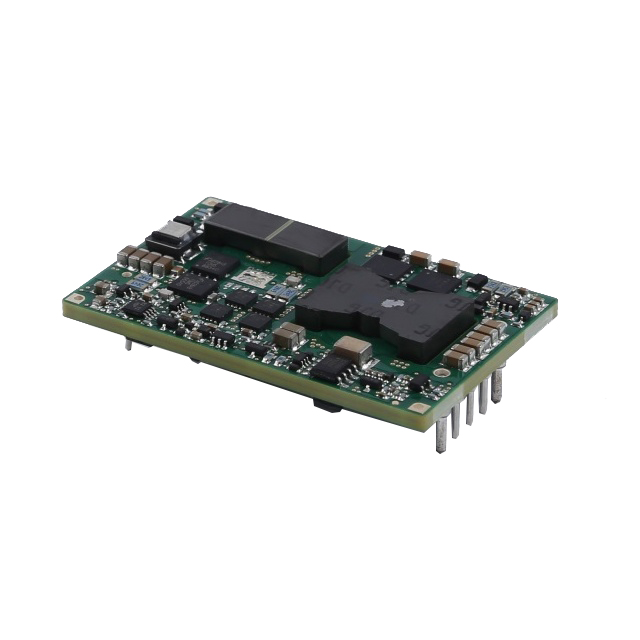

DC DC CONVERTER 48V 96W
| Part | Features | Package / Case | Mounting Type | Applications | Supplier Device Package | Voltage - Isolation | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Number of Outputs | Efficiency | Type | Voltage - Input (Min) [Min] | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NetPower | Adjustable Output Remote On/Off Remote Sense | Quarter Brick | Through Hole | ITE (Commercial) | Quarter Brick | 2250 VDC | 96 W | 85 °C | -40 C | 2 A | 75 V | 1 | 90.5 % | Isolated Module | 18 V | 48 V | 10.4 mm | 0.41 in | 57.9 mm | 1.45 in | 36.8 mm | 2.28 " |
