SBA120 Series

Catalog

EXTREME LOW VF SCHOTTKY RECTIFIE

Part	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Speed	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Average Rectified (Io)	Mounting Type	Package / Case	Qualification	Grade
Panjit International Inc. SBA120CH_R1_00001	SOD-323HE	100 µA	450 mV	20 V	Schottky	200 mA 500 ns	-55 °C	150 °C	1 A	Surface Mount	SC-90 SOD-323F
Panjit International Inc. SBA120CS-AU_R1_000A1	SOD-323	100 µA	450 mV	20 V	Schottky	200 mA 500 ns	-55 °C	150 °C	1 A	Surface Mount	SC-90 SOD-323F	AEC-Q101	Automotive
Panjit International Inc. SBA120CS_R1_00001	SOD-323	100 µA	450 mV	20 V	Schottky	200 mA 500 ns	-55 °C	150 °C	1 A	Surface Mount	SC-90 SOD-323F
Panjit International Inc. SBA120AS-AU_R1_000A1	SOD-123	100 µA	450 mV	20 V	Schottky	200 mA 500 ns	-55 °C	150 °C	1 A	Surface Mount	SOD-123	AEC-Q101	Automotive
Panjit International Inc. SBA120AS_R1_00001	SOD-123	100 µA	450 mV	20 V	Schottky	200 mA 500 ns	-55 °C	150 °C	1 A	Surface Mount	SOD-123

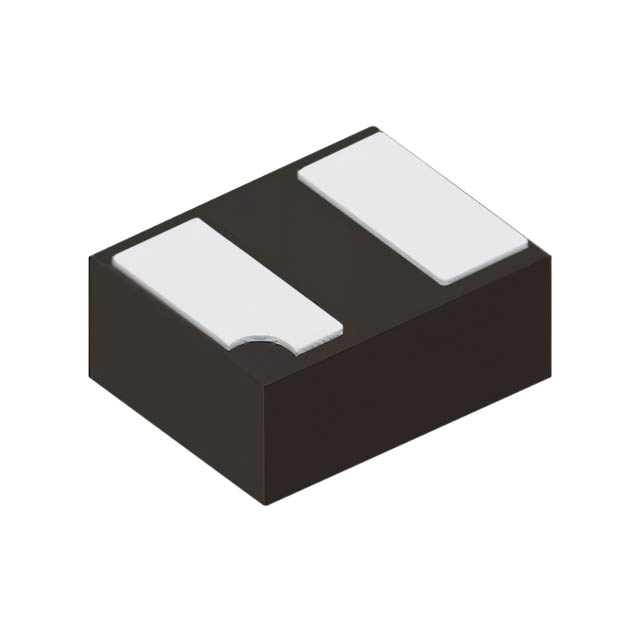

Panjit International Inc. SBA120Q_R1_00001	DFN1610-2	100 µA	450 mV	20 V	Schottky	200 mA 500 ns	-55 °C	150 °C	1 A	Surface Mount	2-UDFN
