V23061 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

V23061-C2003-A802

Part	Coil Resistance	Operate Time	Seal Rating	Mounting Type	Must Release Voltage	Switching Voltage [Max]	Termination Style	Contact Form	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Approval Agency	Load - Max Switching [Max]	Must Operate Voltage	Relay Type	Coil Current	Coil Insulation	Contact Rating (Current)	Coil Type	Coil Voltage	Load - Max Switching

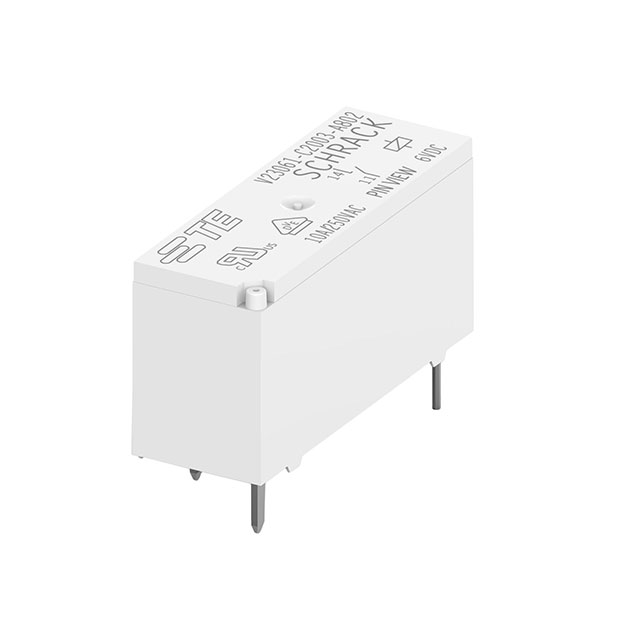

TE Connectivity AMP Connectors 5-1416200-5	165 Ohms	10 ms	Sealed - Flux Protection	Through Hole	0.6 VDC	400 VAC	PC Pin	SPST-NO (1 Form A)	5 ms	85 °C	-40 C	Silver Nickel (AgNi)	cURus VDE	4000 VA	4.1 VDC	General Purpose	36.4 mA	Class F	10 A	Non Latching

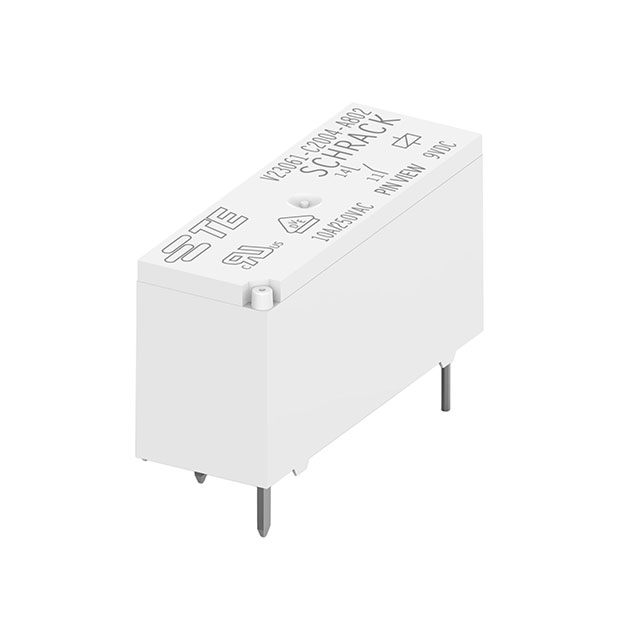

TE Connectivity AMP Connectors 5-1416200-6	364 Ohms	10 ms	Sealed - Flux Protection	Through Hole	0.9 VDC	400 VAC	PC Pin	SPST-NO (1 Form A)	5 ms	85 °C	-40 C	Silver Nickel (AgNi)	cURus VDE	4000 VA	6.1 VDC	General Purpose	24.7 mA		10 A	Non Latching	9 VDC
TE Connectivity AMP Connectors 1-1393222-7	364 Ohms	6 ms		Through Hole	0.9 VDC	400 VAC	PC Pin	SPST-NO (1 Form A)	2.5 ms	85 °C	-40 C	Silver Nickel (AgNi)	cURus VDE		6.1 VDC	General Purpose	24.7 mA		8 A	Non Latching	9 VDC	3200 VA
TE Connectivity AMP Connectors 5-1416200-8	2.27 kOhms	10 ms	Sealed - Flux Protection	Through Hole	2.4 VDC	400 VAC	PC Pin	SPST-NO (1 Form A)	5 ms	85 °C	-40 C	Silver Nickel (AgNi)	cURus VDE	2000 VA 4000 VA	16.3 VDC	General Purpose	10.6 mA	Class F	10 A	Non Latching	24 VDC

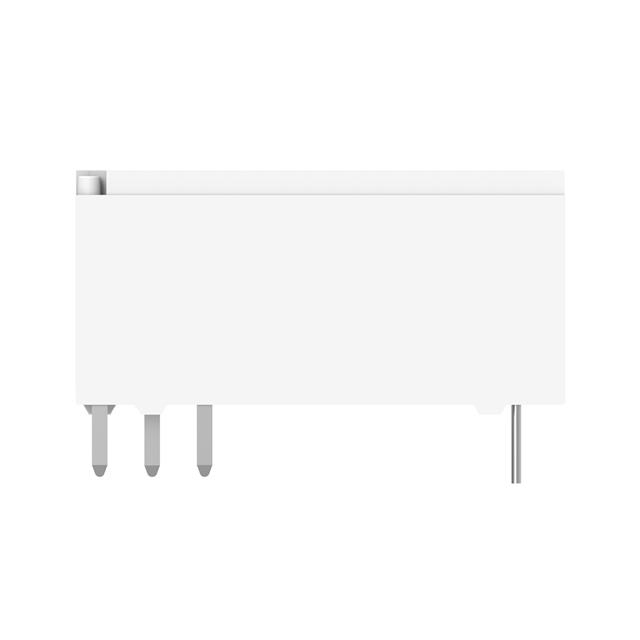

TE Connectivity AMP Connectors 6-1416200-5	364 Ohms	10 ms	Sealed - Flux Protection	Through Hole	0.9 VDC	400 VAC	PC Pin	SPDT (1 Form C)	5 ms	85 °C	-40 C	Silver Nickel (AgNi)	cURus VDE	4000 VA	6.1 VDC	General Purpose	24.7 mA	Class F	10 A	Non Latching	9 VDC
TE Connectivity AMP Connectors 3-1416200-1	652 Ohms	6 ms	Sealed - Flux Protection	Through Hole	1.2 VDC	400 VAC	PC Pin	SPDT (1 Form C)	2.5 ms	85 °C	-40 C	Silver Cadmium Oxide (AgCdO)	cURus VDE		8.2 VDC	General Purpose	18.4 mA		8 A	Non Latching	12 VDC	3200 VA
TE Connectivity AMP Connectors V23061A1005A602	652 Ohms	6 ms		Through Hole	1.2 VDC	400 VAC	PC Pin	SPST-NO (1 Form A)	2.5 ms	85 °C	-40 C		cURus VDE		8.2 VDC	General Purpose	18.4 mA		8 A	Non Latching	12 VDC	3200 VA
TE Connectivity AMP Connectors V23061A1007A602	2.27 kOhms	6 ms		Through Hole	2.4 VDC	400 VAC	PC Pin	SPST-NO (1 Form A)	2.5 ms	85 °C	-40 C		cURus VDE		16.3 VDC	General Purpose	10.6 mA		8 A	Non Latching	24 VDC	3200 VA
