RB85P12C Series
Manufacturer: Serpac
Beta
⌘K

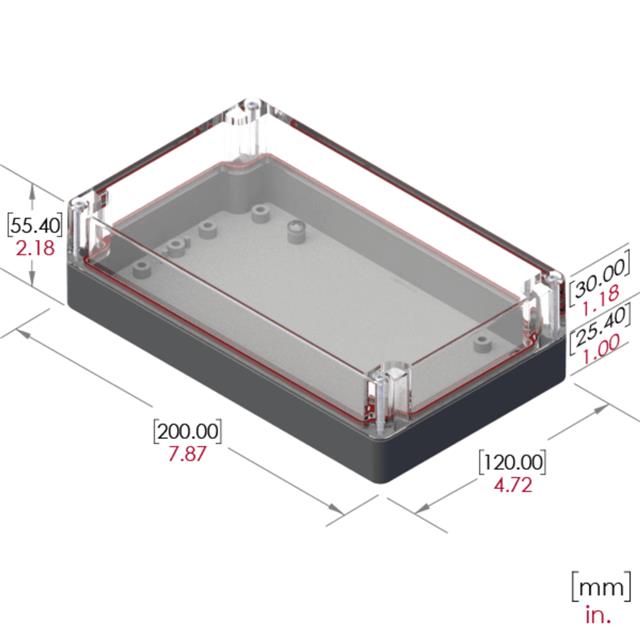

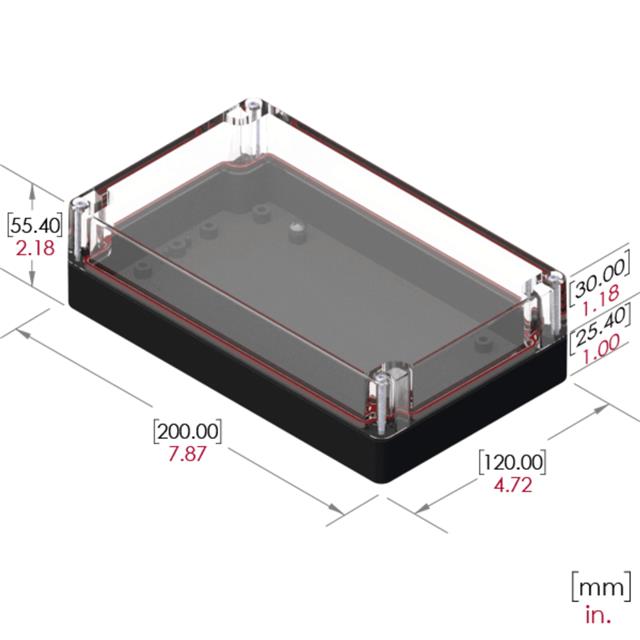

PLASTIC ENCLOSURE, WATERTIGHT, JUNCTION BOX, POLYCARBONATE, 55.4 MM, 120 MM, 200 MM, IP67
| Part | Color | Container Type | Thickness | Thickness | Design | Ratings | Area (L x W) | Area (L x W) | Height [custom] | Height [custom] | Material Flammability Rating | Material | Height [z] | Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Serpac | Clear | Box | 3.05 mm | 0.12 " | Cover Included | IP67 NEMA 4 | 37.1 in² | 239 cm² | 55.37 mm | 2.18 in | UL94 V-0 | Plastic Polycarbonate | ||
 Serpac | Clear Cover/Door Gray | Box | 3.05 mm | 0.12 " | Cover Included | IP67 NEMA 4 | 37.1 in² | 239 cm² | 55.37 mm | 2.18 in | UL94 V-0 | Plastic Polycarbonate | ||
 Serpac | Black Clear Cover/Door | Box | 3.05 mm | 0.12 " | Cover Included | IP67 NEMA 4 | 37.1 in² | 239 cm² | 55.37 mm | 2.18 in | UL94 V-0 | Plastic Polycarbonate | ||

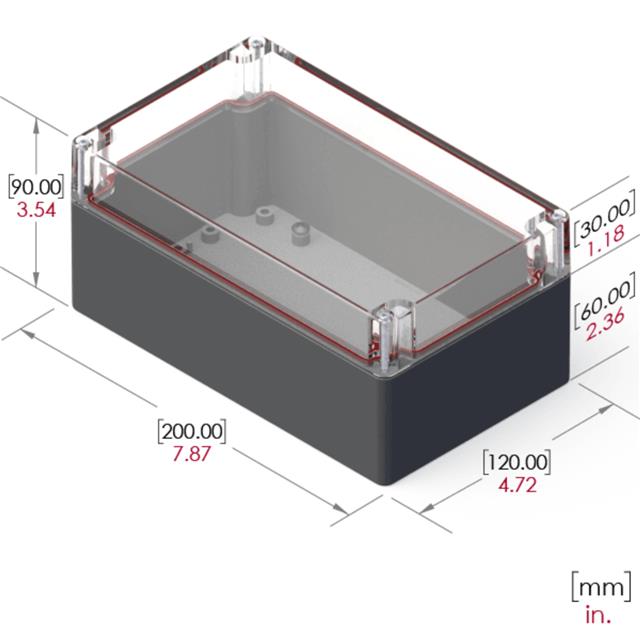

 Serpac | Clear Cover/Door Gray | Box | 3.05 mm | 0.12 " | Cover Included | IP67 NEMA 4 | 37.1 in² | 239 cm² | UL94 V-0 | Plastic Polycarbonate | 3.54 " | 89.92 mm |
