DE11XRA Series

Catalog

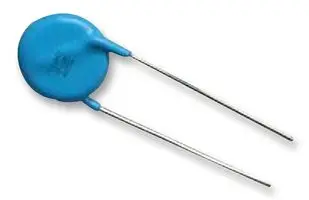

CAP CER 68PF 1.5KV SL RADIAL

Part	Mounting Type	Tolerance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Voltage - Rated	Voltage - Rated	Temperature Coefficient	Capacitance	Ratings [custom]	Ratings [custom]	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Style	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Murata Electronics DE11XRA680KJ4BP01F	Through Hole	10 %	Disc Radial	11 mm	0.433 in	0.394 in	10 mm	1.5 kV	1500 V	SL	68 pF	X1	Y1	0.315 in	8 mm	Straight	125 °C	-40 C	Safety
Murata Electronics DE11XRA150KN4AQ01F	Through Hole	10 %	Disc Radial			0.394 in	10 mm		500 VAC/DC	SL	15 pF	X1	Y1	0.236 in	6 mm	Straight	125 °C	-40 C	Safety	9 mm	0.354 in
Murata Electronics DE11XRA100KA4BN01F	Through Hole	10 %	Disc Radial			0.394 in	10 mm		250 VAC	SL	10 pF	X1	Y1	0.276 in	7 mm	Straight	125 °C	-40 C	Safety	10 mm	0.394 in
Murata Electronics DE11XRA470KA4BQ01F	Through Hole	10 %	Disc Radial			0.394 in	10 mm		500 VAC/DC	SL	47 pF	X1	Y1	0.315 in	8 mm	Straight	125 °C	-40 C	Safety	5 mm	0.197 in
Murata Electronics DE11XRA220KJ4BQ01F
Murata Electronics DE11XRA330KN4AQ01F	Through Hole	10 %	Disc Radial			0.394 in	10 mm		500 VAC/DC	SL	33 pF	X1	Y1	0.276 in	7 mm	Straight	125 °C	-40 C	Safety	10 mm	0.394 in
Murata Electronics DE11XRA220KN4AP01F	Through Hole	10 %	Disc Radial			0.394 in	10 mm	1.5 kV	1500 V	SL	22 pF	X1	Y1	0.236 in	6 mm	Straight	125 °C	-40 C	Safety	9 mm	0.354 in
Murata Electronics DE11XRA330KN4AP01F	Through Hole	10 %	Disc Radial			0.394 in	10 mm	1.5 kV	1500 V	SL	33 pF	X1	Y1	0.276 in	7 mm	Straight	125 °C	-40 C	Safety	10 mm	0.394 in
Murata Electronics DE11XRA680KN4AQ01F	Through Hole	10 %	Disc Radial			0.394 in	10 mm		500 VAC/DC	SL	68 pF	X1	Y1	0.354 in	9 mm	Straight	125 °C	-40 C	Safety		0.472 in	12 mm
Murata Electronics DE11XRA220KJ4BP01F	Through Hole	10 %	Disc Radial			0.394 in	10 mm	1.5 kV	1500 V	SL	22 pF	X1	Y1	0.236 in	6 mm	Straight	125 °C	-40 C	Safety	9 mm	0.354 in
