2K Series

Manufacturer: LEMO

Catalog

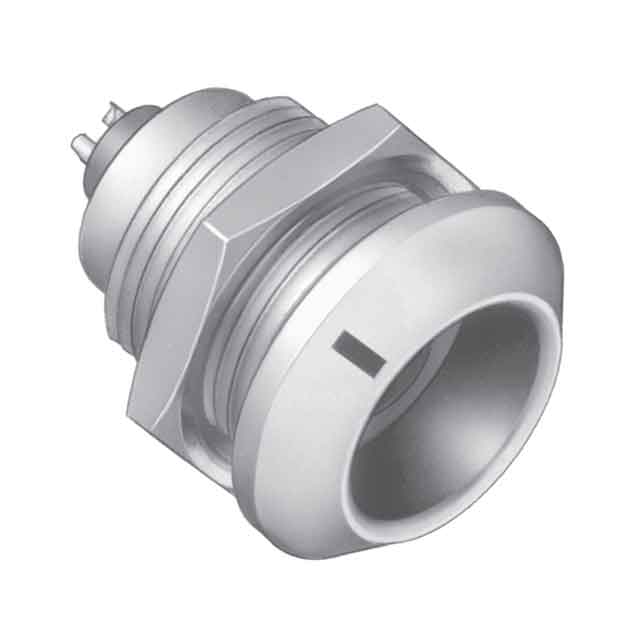

CIRCULAR PUSH PULL CONNECTORS STRAIGHT RECEPTACLE

Part	Insert Material	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Shell Material	Shell Size - Insert	Orientation	Number of Positions	Shielding	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Color	Contact Finish - Mating	Primary Material	Mounting Type	Mounting Feature	Shell Finish	Ingress Protection	Material Flammability Rating	Orientation [custom]	Termination	Backshell Material, Plating	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Features	Accessory Type	Material	For Use With/Related Products	Shell Size - Insert [custom]
LEMO EGA.2K.310.CLL	Polyetheretherketone (PEEK)	Bronze	1.5 Ám	59 Áin	Receptacle Female Sockets	Brass	310	A	10	Shielded	8 A	200 °C	-55 C	Push-Pull	Silver	Gold	Metal	Panel Mount	Bulkhead - Rear Side Nut	Chrome	IP66 IP68	UL94 V-0
LEMO EGG.2K.314.CYM	Polyetheretherketone (PEEK)	Bronze	1.5 Ám	59 Áin	Receptacle Female Sockets	Brass	314		14	Shielded	6.5 A	200 °C	-55 C	Push-Pull	Silver	Gold	Metal	Panel Mount	Bulkhead - Rear Side Nut	Chrome	IP66 IP68	UL94 V-0	G	Crimp
LEMO FGA.2K.310.CLAC60Z	Polyetheretherketone (PEEK)	Brass			Plug Male Pins	Brass	310	A	10	Shielded	8 A	200 °C	-55 C	Push-Pull	Silver	Gold	Metal	Free Hanging (In-Line)		Chrome	IP66 IP68	UL94 V-0			Brass Chrome	0.236 in	0.22 in	6 mm	5.6 mm	39.4 µin	1 µm	Backshell
LEMO FGG.2K.314.CLAK11					Plug Male Pins	Brass	314		14	Shielded	6.5 A	200 °C	-55 C	Push-Pull	Silver	Gold	Metal	Free Hanging (In-Line)		Chrome	IP68 - Dust Tight Waterproof	UL94 V-0	G			0.413 in	0.398 in	10.5 mm	10.1 mm			Backshell
LEMO FHG.2K.310.CYCC85	Polyetheretherketone (PEEK)	Brass			Plug Male Pins	Brass	310		10	Shielded	8 A	200 °C	-55 C	Push-Pull	Silver	Gold	Metal	Free Hanging (In-Line) Right Angle		Chrome	IP66 IP68	UL94 V-0	G	Crimp	Brass Chrome	0.335 in	0.319 in	8.5 mm	8.1 mm	39.4 µin	1 µm	Backshell
LEMO EGG.2K.304.CLL	Polyetheretherketone (PEEK)	Bronze	1.5 Ám	59 Áin	Receptacle Female Sockets	Brass	304		4	Shielded	15 A	200 °C	-55 C	Push-Pull	Silver	Gold	Metal	Panel Mount	Bulkhead - Rear Side Nut	Chrome	IP66 IP68	UL94 V-0	G
LEMO BFG.2K.100.KAS															Black																	Dust Tight Lanyard Waterproof	Cap (Cover)	Brass	2K Series Plug
LEMO FGG.2K.436.CJLC50					Plug Male Pins	Brass	436		6	Shielded		200 °C	-55 C	Push-Pull	Silver	Gold	Metal	Free Hanging (In-Line)		Chrome	IP66 IP68	UL94 V-0	G			0.197 in	0.181 "	5 mm	4.6 mm			Backshell
LEMO FGG.2K.316.CYCC80Z					Plug Male Pins	Brass			16	Shielded	6 A	250 °C	-55 C	Push-Pull	Silver	Gold	Metal	Free Hanging (In-Line)		Chrome	IP50 - Dust Protected	UL94 V-0	G	Crimp		0.315 in	0.299 "	8 mm	7.6 mm			Backshell				316
LEMO FHG.2K.302.CLAC85	Polyetheretherketone (PEEK)	Brass			Plug Male Pins	Brass	302		2	Shielded	25 A	200 °C	-55 C	Push-Pull	Silver	Gold	Metal	Free Hanging (In-Line) Right Angle		Chrome	IP66 IP68	UL94 V-0	G		Brass Chrome	0.335 in	0.319 in	8.5 mm	8.1 mm	39.4 µin	1 µm	Backshell
