628W17W Series

Manufacturer: EDAC Inc.

Catalog

CONN D-SUB RCPT 17P PNL MNT

Part	Voltage Rating	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Color	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Material Flammability Rating	Ingress Protection	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Current Rating (Amps)	Features	Shell Material, Finish	Number of Positions	Connector Style	Mounting Type	Contact Finish	Contact Type	Flange Feature	Contact Finish Thickness	Termination	Current Rating (Amps)
EDAC Inc. 628W17W2122-2NA	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Copper Alloy	Black	Receptacle Female Sockets	B DB	17W2	3	UL94 V-0	IP67 - Dust Tight Waterproof	2	5 µin	0.127 µm	Housing/Shell (M3)	20A 5A	Shielded	Nickel Plated Steel	17	Combo D-Sub	Panel Mount Through Hole	Gold	Signal and Power
EDAC Inc. 628W17W2122-1N2	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Copper Alloy	Black	Receptacle Female Sockets	B DB	17W2	3	UL94 V-0	IP67 - Dust Tight Waterproof	2	5 µin	0.127 µm	Housing/Shell	10A 5A	Shielded	Nickel Plated Steel	17	Combo D-Sub	Panel Mount Through Hole	Gold	Signal and Power	4-40
EDAC Inc. 628W17W2222-2NA	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Copper Alloy	Black	Receptacle Female Sockets	B DB	17W2	3	UL94 V-0	IP67 - Dust Tight Waterproof	2			Housing/Shell (M3)	20A 5A	Shielded	Nickel Plated Steel	17	Combo D-Sub	Panel Mount Through Hole	Gold	Signal and Power		Flash
EDAC Inc. 628W17W2124-2ND	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Copper Alloy	Black	Receptacle Female Sockets	B DB	17W2	3	UL94 V-0	IP67 - Dust Tight Waterproof	2	5 µin	0.127 µm	Board Side (M3)	20A 5A	Board Lock Shielded	Nickel Plated Steel	17	Combo D-Sub	Panel Mount Through Hole	Gold	Signal and Power			Solder

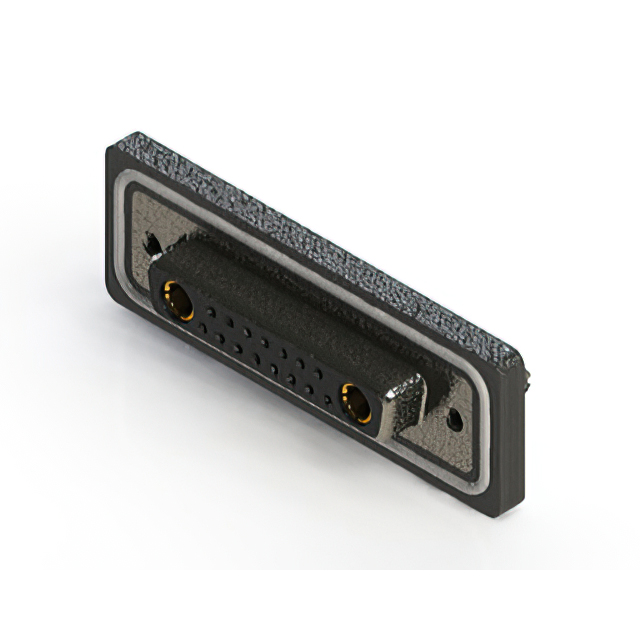

EDAC Inc. 628W17W2124-4ND	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Copper Alloy	Black	Receptacle Female Sockets	B DB	17W2	3	UL94 V-0	IP67 - Dust Tight Waterproof	2	5 µin	0.127 µm	Board Side (M3)		Board Lock Shielded	Nickel Plated Steel	17	Combo D-Sub	Panel Mount Through Hole	Gold	Signal and Power			Solder	5 A 40 A
EDAC Inc. 628W17W2124-3NA	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Copper Alloy	Black	Receptacle Female Sockets	B DB	17W2	3	UL94 V-0	IP67 - Dust Tight Waterproof	2	5 µin	0.127 µm	Housing/Shell (M3)		Shielded	Nickel Plated Steel	17	Combo D-Sub	Panel Mount Through Hole	Gold	Signal and Power			Solder	5 A 30 A

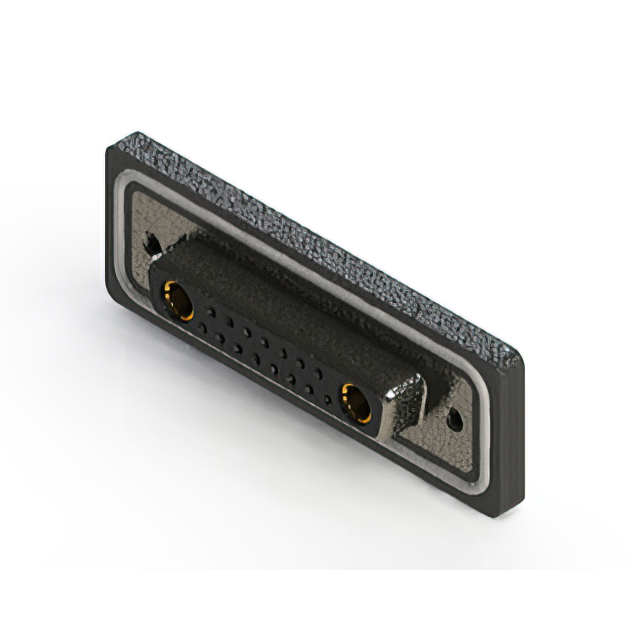

EDAC Inc. 628W17W2124-4NA	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Copper Alloy	Black	Receptacle Female Sockets	B DB	17W2	3	UL94 V-0	IP67 - Dust Tight Waterproof	2	5 µin	0.127 µm	Housing/Shell (M3)		Shielded	Nickel Plated Steel	17	Combo D-Sub	Panel Mount Through Hole	Gold	Signal and Power			Solder	5 A 40 A
EDAC Inc. 628W17W2124-4N5	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Copper Alloy	Black	Receptacle Female Sockets	B DB	17W2	3	UL94 V-0	IP67 - Dust Tight Waterproof	2	5 µin	0.127 µm	Board Side (4-40)		Board Lock Shielded	Nickel Plated Steel	17	Combo D-Sub	Panel Mount Through Hole	Gold	Signal and Power			Solder	5 A 40 A
EDAC Inc. 628W17W2222-3NA	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Copper Alloy	Black	Receptacle Female Sockets	B DB	17W2	3	UL94 V-0	IP67 - Dust Tight Waterproof	2			Housing/Shell (M3)		Shielded	Nickel Plated Steel	17	Combo D-Sub	Panel Mount Through Hole	Gold	Signal and Power		Flash		5 A 30 A

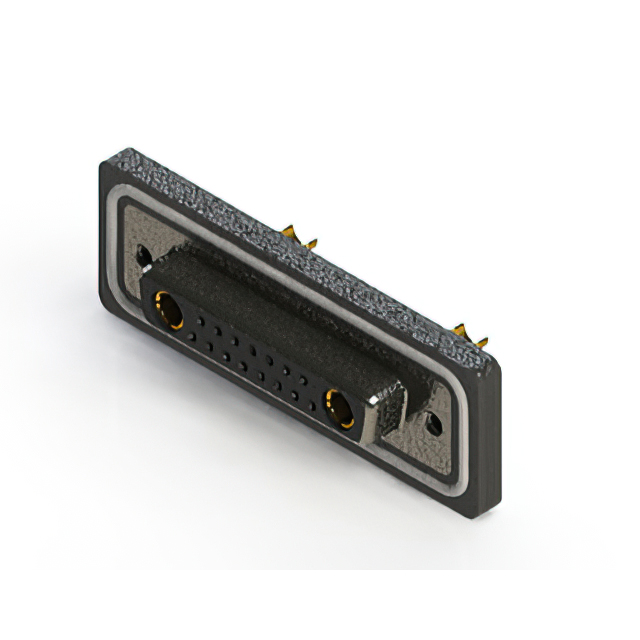

EDAC Inc. 628W17W2122-3N2	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Copper Alloy	Black	Receptacle Female Sockets	B DB	17W2	3	UL94 V-0	IP67 - Dust Tight Waterproof	2	5 µin	0.127 µm	Housing/Shell		Shielded	Nickel Plated Steel	17	Combo D-Sub	Panel Mount Through Hole	Gold	Signal and Power	4-40			5 A 30 A
