BB25AH Series

Catalog

PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON

Part	Electrical Life	Mechanical Life	Current Rating (Amps)	Features	Mounting Type	Actuator Type	Type	Actuator Marking	Circuit	Color - Actuator/Cap	Voltage Rating - DC	Voltage Rating - AC	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function

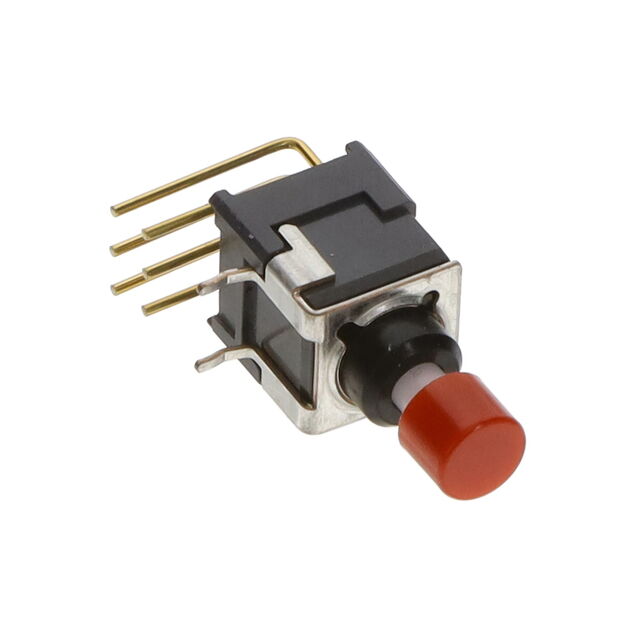

NKK Switches BB25AH-FC	50000 Cycles	50000 Cycles	0.4 VA	Antistatic	Right Angle Through Hole	Button Round	Standard	No Marking	DPDT	Red	28 V	28 V	PC Pin	85 °C	-30 ░C	On-Mom
NKK Switches BB25AH-HC	50000 Cycles	50000 Cycles	0.4 VA	Antistatic	Right Angle Through Hole	Button Round	Standard	No Marking	DPDT	Red	28 V	28 V	PC Pin	85 °C	-30 ░C	On-Mom
NKK Switches BB25AH-FA	50000 Cycles	50000 Cycles	0.4 VA	Antistatic	Right Angle Through Hole	Button Round	Standard	No Marking	DPDT	Black	28 V	28 V	PC Pin	85 °C	-30 ░C	On-Mom
NKK Switches BB25AH-FB	50000 Cycles	50000 Cycles	0.4 VA	Antistatic	Right Angle Through Hole	Button Round	Standard	No Marking	DPDT	White	28 V	28 V	PC Pin	85 °C	-30 ░C	On-Mom

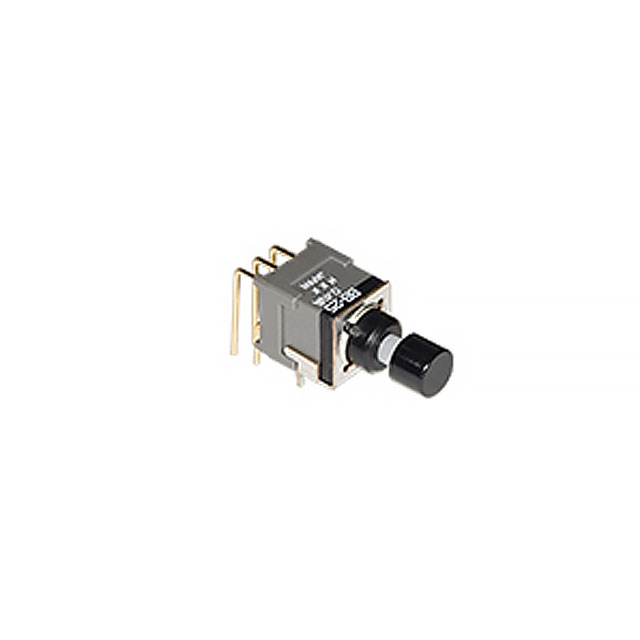

NKK Switches BB25AH-HA	50000 Cycles	50000 Cycles	0.4 VA	Antistatic	Right Angle Through Hole	Button Round	Standard	No Marking	DPDT	Black	28 V	28 V	PC Pin	85 °C	-30 ░C	On-Mom
