CFS-0402 Series

Catalog

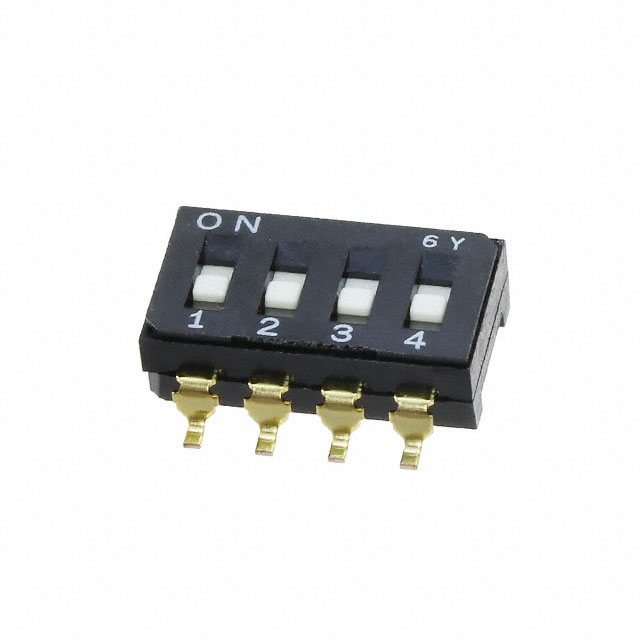

DIP SWITCH, 4PST-NO, 0.1A, 6VDC, SMD ROHS COMPLIANT: YES

Part	Length [custom]	Length	Electrical Life	Body Material	Current Rating (Amps)	Voltage Rating	Contact Material	Height Above Board [z]	Height Above Board [z]	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Termination Style	Mounting Type	Contact Finish	Pitch	Pitch	Actuator Level	Circuit	Height Above Board	Height Above Board
Nidec Components Corporation CFS-0402TA	0.457 in	11.61 mm	1000 Cycles	Polyphenylene Sulfide (PPS)	100 mA	6 V	Copper Alloy	0.177 in	4.5 mm	4	85 °C	-40 C	Slide (Standard)	J Lead	Surface Mount	Gold	2.54 mm	0.1 "	Raised	SPST
Nidec Components Corporation CFS-0402MB	0.457 in	11.61 mm	1000 Cycles	Polyphenylene Sulfide (PPS)	100 mA	6 V	Copper Alloy			4	85 °C	-40 C	Slide (Standard)	Gull Wing	Surface Mount	Gold	2.54 mm	0.1 "	Raised	SPST	0.169 in	4.3 mm
Nidec Components Corporation CFS-0402TB	0.457 in	11.61 mm	1000 Cycles	Polyphenylene Sulfide (PPS)	100 mA	6 V	Copper Alloy			4	85 °C	-40 C	Slide (Standard)	Gull Wing	Surface Mount	Gold	2.54 mm	0.1 "	Raised	SPST	0.169 in	4.3 mm
Nidec Components Corporation CFS-0402MC	0.457 in	11.61 mm	1000 Cycles	Polyphenylene Sulfide (PPS)	100 mA	6 V	Copper Alloy	0.201 in	5.1 mm	4	85 °C	-40 C	Slide (Standard)	PC Pin	Through Hole	Gold	2.54 mm	0.1 "	Raised	SPST
