MAX969 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC COMP SNGL ECL W/LE 16SOIC

Part	Type	Propagation Delay (Max) [Max]	Supplier Device Package	Output Type	CMRR, PSRR (Typ)	Package / Case	Package / Case	Package / Case	Mounting Type	Current - Input Bias (Max) [Max]	Voltage - Input Offset (Max)	Number of Elements	Current - Output (Typ)	Current - Quiescent (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input Offset (Max) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Hysteresis	Current - Input Bias (Max)	Package / Case [x]	Package / Case [y]	Function	Supplied Contents	Utilized IC / Part	Primary Attributes	Secondary Attributes	Secondary Attributes
Analog Devices Inc./Maxim Integrated MAX9692ESE+	with Latch	1.8 ns	16-QSOP	Complementary ECL	60 dB 80 dB	0.154 in	16-SSOP	3.9 mm	Surface Mount	20 µA	6.5 mV	1	50 mA	26 mA	85 °C	-40 °C
Analog Devices Inc./Maxim Integrated MAX9691ESA+G077
Analog Devices Inc./Maxim Integrated MAX969EEE+T	with Voltage Reference	20 µs	16-QSOP	Open-Drain Rail-to-Rail	56.48 dB 80 dB	0.154 in	16-SSOP	3.9 mm	Surface Mount			4		22 µA	85 °C	-40 °C	10 mV	1.6 V	5.5 V	±1mV	0.05 µA
Analog Devices Inc./Maxim Integrated MAX9693EEE+
Analog Devices Inc./Maxim Integrated MAX969ESE-T	with Voltage Reference	20 µs	16-SOIC	Open-Drain Rail-to-Rail	56.48 dB 80 dB		16-SOIC		Surface Mount			4		22 µA	85 °C	-40 °C	7 mV	1.6 V	5.5 V	±1mV	0.05 µA	0.154 in	3.9 mm
Analog Devices Inc./Maxim Integrated MAX969EEE-T	with Voltage Reference	20 µs	16-QSOP	Open-Drain Rail-to-Rail	56.48 dB 80 dB	0.154 in	16-SSOP	3.9 mm	Surface Mount			4		22 µA	85 °C	-40 °C	10 mV	1.6 V	5.5 V	±1mV	0.05 µA
Analog Devices Inc./Maxim Integrated MAX9696ETG+
Analog Devices Inc./Maxim Integrated MAX969ESE+	with Voltage Reference	20 µs	16-SOIC	Open-Drain Rail-to-Rail	56.48 dB 80 dB		16-SOIC		Surface Mount			4		22 µA	85 °C	-40 °C	7 mV	1.6 V	5.5 V	±1mV	0.05 µA	0.154 in	3.9 mm
Analog Devices Inc./Maxim Integrated MAX969EEE	with Voltage Reference	20 µs	16-QSOP	Open-Drain Rail-to-Rail	56.48 dB 80 dB	0.154 in	16-SSOP	3.9 mm	Surface Mount			4		22 µA	85 °C	-40 °C	10 mV	1.6 V	5.5 V	±1mV	0.05 µA

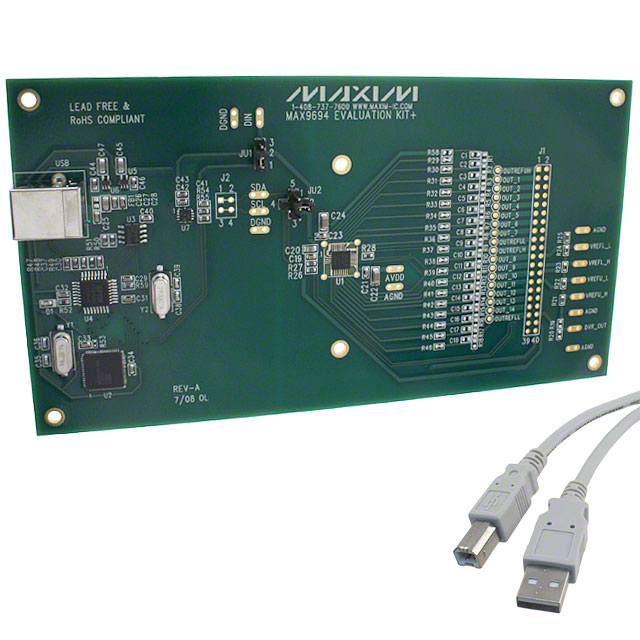

Analog Devices Inc./Maxim Integrated MAX9694EVKIT+	Video																							Amplifier Single	Board(s) Cable(s)	MAX9694	Gamma Correction for TFT-LCD Panels	14	8-Bit DAC Outputs
