PA0036 Series
Manufacturer: Chip Quik Inc.
Beta
⌘K

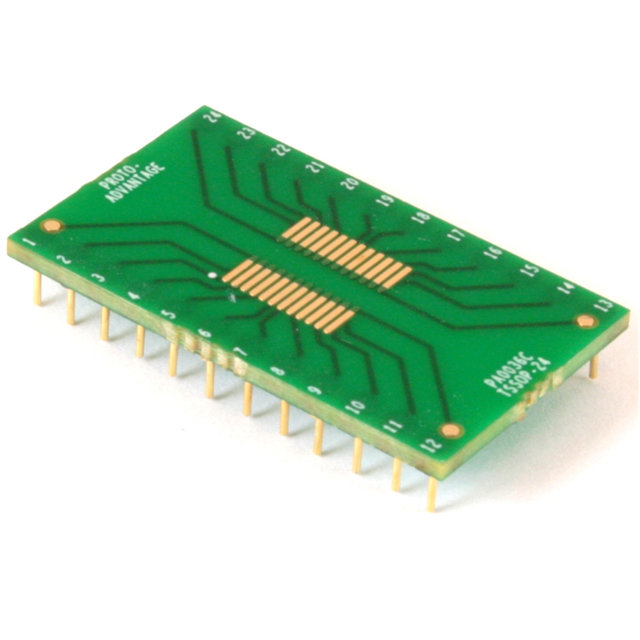

TSSOP-24 TO DIP-24 SMT ADAPTER (
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Package Accepted | Board Thickness | Board Thickness | Number of Positions | Material | Proto Board Type | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Chip Quik Inc. | 0.7 in | 17.78 mm | 30.48 mm | 1.2 in | TSSOP | 0.063 in | 1.6 mm | 24 | FR4 Epoxy Glass | SMD to DIP | 0.65 mm | 0.026 in |
