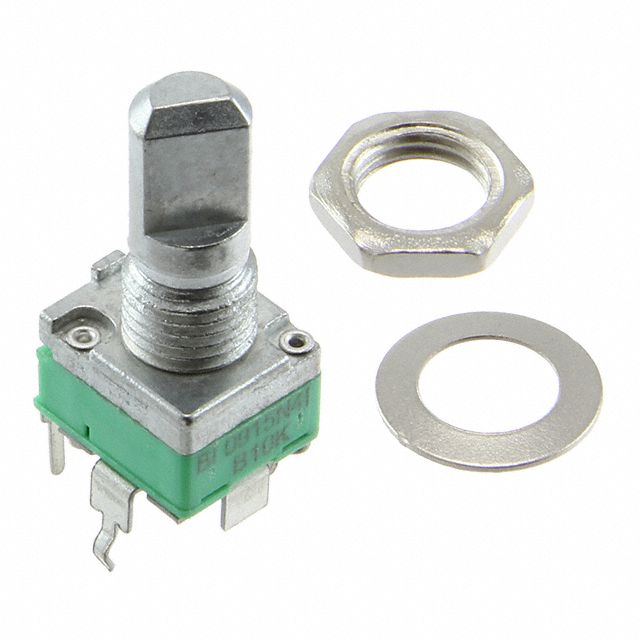

P0915N Series
Manufacturer: TT Electronics/BI
Beta
⌘K
POT 50K OHM 1/20W PLASTIC LINEAR
| Part | Size - Body [y] | Size - Body [y] | Size - Body [x] | Size - Body [x] | Adjustment Type | Tolerance | Actuator Type | Mounting Type | Termination Style | Rotation | Number of Turns | Taper | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Power (Watts) | Power (Watts) | Resistance (Ohms) [custom] | Built in Switch | Actuator Length [x] | Actuator Length [x] | Number of Gangs | Bushing Thread | Resistive Material | Resistance (Ohms) | Power (Watts) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | Top Adjustment | 20 % | Knurled and Slotted | Panel Mount | Board Locks PC Pins | 300 ░ | 1 | Linear | 6 mm | 0.236 in | 0.05 W | 50 mW | 50 kOhms | None | 15 mm | 0.591 in | 1 | M7 x 0.75 | Conductive Plastic | |||
TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | Top Adjustment | 20 % | Flatted | Panel Mount | Board Locks PC Pins | 300 ░ | 1 | Linear | 6 mm | 0.236 in | 0.05 W | 50 mW | 50 kOhms | None | 20 mm | 0.787 in | 1 | M7 x 0.75 | Conductive Plastic | |||
 TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | Top Adjustment | 20 % | Slotted | Panel Mount | Board Locks PC Pins | 300 ░ | 1 | Linear | 6 mm | 0.236 in | 0.05 W | 50 mW | None | 15 mm | 0.591 in | 1 | M7 x 0.75 | Conductive Plastic | 100k | |||
TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | Top Adjustment | 20 % | Flatted | Panel Mount | Board Locks PC Pins | 30 ° 300 ░ | 1 | Logarithmic | 6 mm | 0.236 in | 25 mW | 50 kOhms | None | 15 mm | 0.591 in | 1 | M7 x 0.75 | Conductive Plastic | 1/40 | |||
 TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | Top Adjustment | 20 % | Slotted | Panel Mount | Board Locks PC Pins | 300 ░ | 1 | Linear | 6 mm | 0.236 in | 0.05 W | 50 mW | None | 15 mm | 0.591 in | 1 | M7 x 0.75 | Conductive Plastic | 2 kOhms | |||
 TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | Top Adjustment | 20 % | Flatted | Panel Mount | Board Locks PC Pins | 300 ░ | 1 | Linear | 6 mm | 0.236 in | 0.05 W | 50 mW | None | 20 mm | 0.787 in | 1 | M7 x 0.75 | Conductive Plastic | 10k | |||
TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | Top Adjustment | 20 % | Knurled and Slotted | Panel Mount | Board Locks PC Pins | 300 ░ | 1 | Logarithmic | 6 mm | 0.236 in | 25 mW | None | 15 mm | 0.591 in | 1 | M7 x 0.75 | Conductive Plastic | 1/40 | 500 kOhms | |||
 TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | Top Adjustment | 20 % | Knurled and Slotted | Panel Mount | Board Locks PC Pins | 300 ░ | 1 | Linear | 6 mm | 0.236 in | 0.05 W | 50 mW | None | 20 mm | 0.787 in | 1 | M7 x 0.75 | Conductive Plastic | 5 kOhms | |||
TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | Top Adjustment | 20 % | Knurled and Slotted | Panel Mount | Board Locks PC Pins | 300 ░ | 1 | Linear | 6 mm | 0.236 in | 0.05 W | 50 mW | 50 kOhms | None | 20 mm | 0.787 in | 1 | M7 x 0.75 | Conductive Plastic | |||
 TT Electronics/BI | 9.5 mm | 0.374 " | 0.447 " | 11.35 mm | Top Adjustment | 20 % | Flatted | Panel Mount | Board Locks PC Pins | 30 ° 300 ░ | 1 | Linear | 6 mm | 0.236 in | 0.05 W | 50 mW | None | 15 mm | 0.591 in | 1 | M7 x 0.75 | Conductive Plastic | 10k |
