2314813 Series

Catalog

16P,2MM,B-B,REC,DRVT,2.0,0.38AU,

Part	Insulation Color	Connector Type	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Voltage Rating	Features	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Mounting Type	Contact Finish - Mating	Insulation Material	Number of Positions Loaded	Fastening Type	Insulation Height	Insulation Height	Material Flammability Rating	Contact Finish - Post	Number of Positions

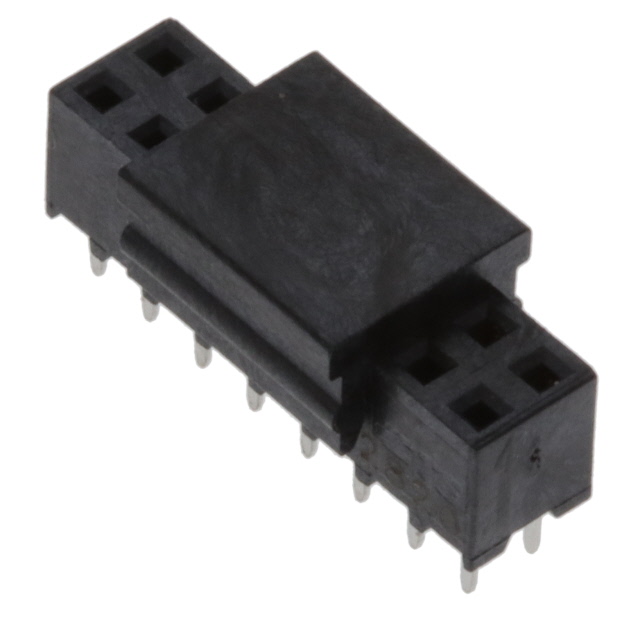

TE Connectivity Raychem Cable Protection 1-2314813-6	Black	Receptacle	2 A	0.079 in	2 mm	15 µin	0.38 µm	0.079 "	2 mm	Phosphor Bronze	0.079 in	2 mm	Female Socket	Square	125 °C	-40 °C	2	125 VDC	Pick and Place	Solder	0.3 µm	12 µin	16	Through Hole	Gold	Liquid Crystal Polymer (LCP)	All	Push-Pull	0.177 in	4.5 mm	UL94 V-0	Tin
TE Connectivity Raychem Cable Protection 1-2314813-4	Black	Receptacle	2 A	0.079 in	2 mm	15 µin	0.38 µm	0.079 "	2 mm	Phosphor Bronze	0.079 in	2 mm	Female Socket	Square	125 °C	-40 °C	2	125 VDC	Pick and Place	Solder	3 µm	118.1 µin		Through Hole	Gold	Liquid Crystal Polymer (LCP)	All	Push-Pull	0.177 in	4.5 mm	UL94 V-0	Tin	14
