N3030 Series

Catalog

PUSHBUTTON FULL BOOT RED

Part	Mounting Feature	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Min)	Operating Temperature (Max)	Thread Pitch (TPI)	Thread Size (Class)	Thread Size (Nominal)	Size / Dimension Height	Actuator Diameter	Color	Material	Type	For Use With/Related Products	Features
APM Hexseal N3030 44	Front of Panel	Dust Tight Water Resistant Waterproof	IP66 IP68	-70 °C	204 °C	32 TPI	NS-2B	0.46875 in	0.547 in	0.422 in	Red	Silicone Rubber	Full Boot Pushbutton	Multiple Series

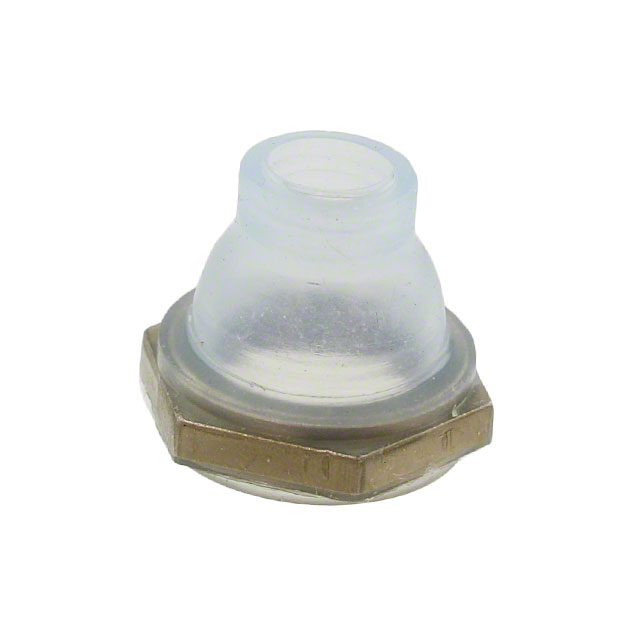

APM Hexseal N3030B 4	Front of Panel	Dust Tight Water Resistant Waterproof	IP66 IP68	-70 °C	204 °C	32 TPI	NS-2B	0.46875 in	0.547 in	6.35 mm	Clear	Silicone Rubber	Half Boot Pushbutton	Multiple Series
APM Hexseal N3030 45	Front of Panel	Dust Tight Water Resistant Waterproof	IP66 IP68	-70 °C	204 °C	32 TPI	NS-2B	0.46875 in	0.547 in	0.422 in	Green	Silicone Rubber	Full Boot Pushbutton	Multiple Series
APM Hexseal N3030 RFI 2	Front of Panel	Dust Tight Water Resistant Waterproof	IP66 IP68	-70 °C	204 °C	32 TPI	NS-2B	0.46875 in	0.547 in	0.422 in	Gray	Silicone Rubber	Full Boot Pushbutton	Multiple Series	Shielded
APM Hexseal N3030 65	Front of Panel	Dust Tight Water Resistant Waterproof	IP66 IP68	-70 °C	204 °C	32 TPI	NS-2B	0.46875 in	0.547 in	0.422 in	Yellow	Silicone Rubber	Full Boot Pushbutton	Multiple Series
APM Hexseal N3030 2	Front of Panel	Dust Tight Water Resistant Waterproof	IP66 IP68	-70 °C	204 °C	32 TPI	NS-2B	0.46875 in	0.547 in	0.422 in	Gray	Silicone Rubber	Full Boot Pushbutton	Multiple Series
