9401-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

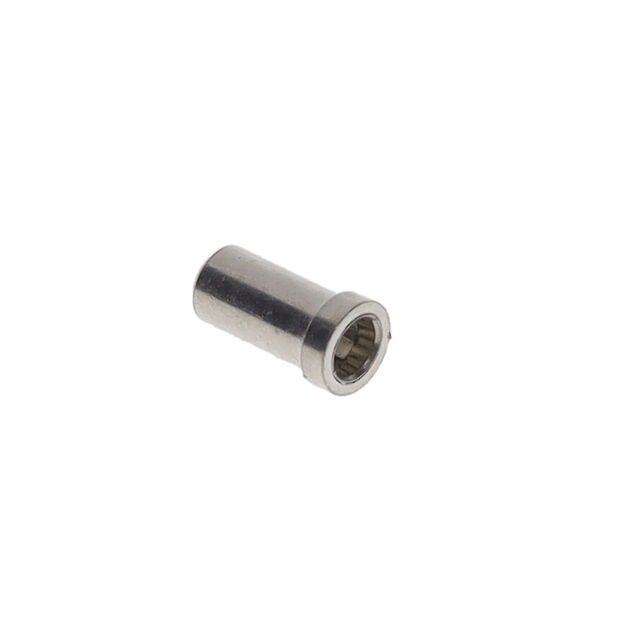

CONN RECEPT PIN .045-.065" .230"
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Contact Material | Termination | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Accepts Pin Diameter [Min] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Min] [diameter] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Tail Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.12 in | 3.05 mm | 2.24 mm | 0.088 " | Beryllium Copper | Solder | 0.102 in | 2.59 mm | 0.045 " | 1.65 mm | 0.065 " | 1.14 mm | Tin-Lead | 200 Áin | 5.08 Ám | No Tail |
