16982-6P Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

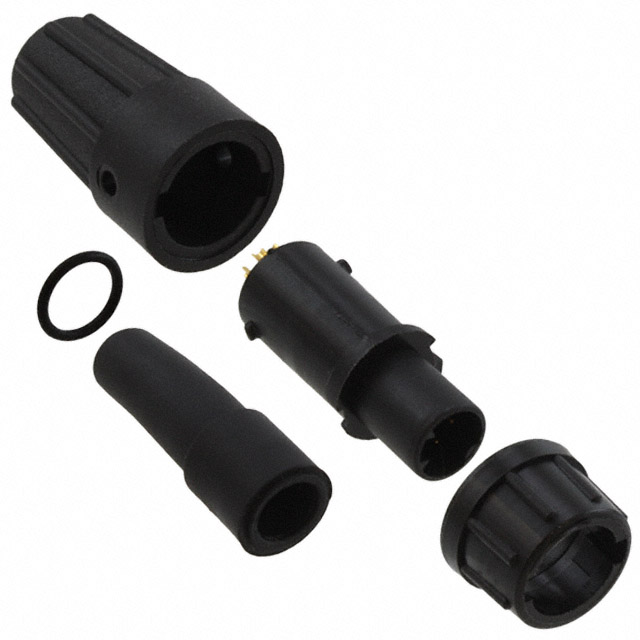

CIRCULAR CONNECTOR, MICRO-CON-X SERIES, CABLE MOUNT PLUG, 6 CONTACTS, SOLDER PIN, BAYONET
| Part | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Orientation | Features | Number of Positions | Backshell Material, Plating | Current Rating (Amps) | Voltage Rating | Applications | Fastening Type | Shielding | Color | Mounting Type | Material Flammability Rating | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Ingress Protection | Contact Finish - Mating | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 5.59 mm | 5.84 mm | 0.23 in | 0.22 in | A | Backshell | 6 | Thermoplastic | 4 A | 600 VAC | Data Industrial Instrumentation Medical | Bayonet Lock | Unshielded | Black | Free Hanging (In-Line) | UL94 HB | Plastic | 85 °C | -40 C | Copper Alloy | IP67 - Dust Tight Waterproof | Gold | Plug Male Pins |
