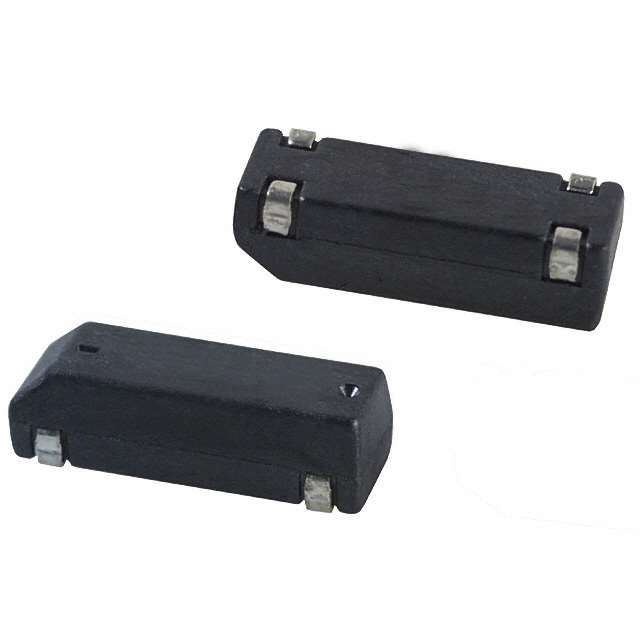

ECX-3SX Series

Manufacturer: ECS Inc.

Catalog

CRYSTALS CRYSTAL 29.4912MHZ 18PF SMD

Part	Frequency Tolerance	Height - Seated (Max)	Height - Seated (Max)	Mounting Type	Package / Case	Package / Case	Load Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Operating Mode	ESR (Equivalent Series Resistance)	Type	Frequency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Frequency Stability
ECS Inc. ECS-294.9-18-7SX-TR	30 ppm	3.7 mm	0.146 in	Surface Mount	4-SOJ	9.4 mm	18 pF	70 °C	-10 °C	Fundamental	50 Ohms	MHz Crystal	29.4912 MHz	0.492 "	12.5 mm	0.181 in	4.6 mm	50 ppm
ECS Inc. ECS-122.8-20-7SX-TR	30 ppm	3.7 mm	0.146 in	Surface Mount	4-SOJ	9.4 mm	20 pF	70 °C	-10 °C	Fundamental	50 Ohms	MHz Crystal	12.288 MHz	0.492 "	12.5 mm	0.181 in	4.6 mm	50 ppm
ECS Inc. ECS-480-18-7SX-TR	30 ppm	3.7 mm	0.146 in	Surface Mount	4-SOJ	9.4 mm	18 pF	70 °C	-10 °C	3rd Overtone	100 Ohms	MHz Crystal	48 MHz	0.492 "	12.5 mm	0.181 in	4.6 mm	50 ppm
ECS Inc. ECS-147.4-20-7SX-TR	30 ppm	3.7 mm	0.146 in	Surface Mount	4-SOJ	9.4 mm	20 pF	70 °C	-10 °C	Fundamental	50 Ohms	MHz Crystal	14.7456 MHz	0.492 "	12.5 mm	0.181 in	4.6 mm	50 ppm
ECS Inc. ECS-125-18-7SX-TR	30 ppm	3.7 mm	0.146 in	Surface Mount	4-SOJ	9.4 mm	18 pF	70 °C	-10 °C	Fundamental	50 Ohms	MHz Crystal	12.5 MHz	0.492 "	12.5 mm	0.181 in	4.6 mm	50 ppm
ECS Inc. ECS-251.75-18-7SX-TR	30 ppm	3.7 mm	0.146 in	Surface Mount	4-SOJ	9.4 mm	18 pF	70 °C	-10 °C	Fundamental	50 Ohms	MHz Crystal	25.175 MHz	0.492 "	12.5 mm	0.181 in	4.6 mm	50 ppm
ECS Inc. ECS-120-20-7SX-TR	30 ppm	3.7 mm	0.146 in	Surface Mount	4-SOJ	9.4 mm	20 pF	70 °C	-10 °C	Fundamental	50 Ohms	MHz Crystal	12 MHz	0.492 "	12.5 mm	0.181 in	4.6 mm	50 ppm
ECS Inc. ECS-143-18-7SX-TR	30 ppm	3.7 mm	0.146 in	Surface Mount	4-SOJ	9.4 mm	18 pF	70 °C	-10 °C	Fundamental	50 Ohms	MHz Crystal	14.31818 MHz	0.492 "	12.5 mm	0.181 in	4.6 mm	50 ppm
