566010 Series
Manufacturer: Boyd Laconia, LLC
Beta
⌘K

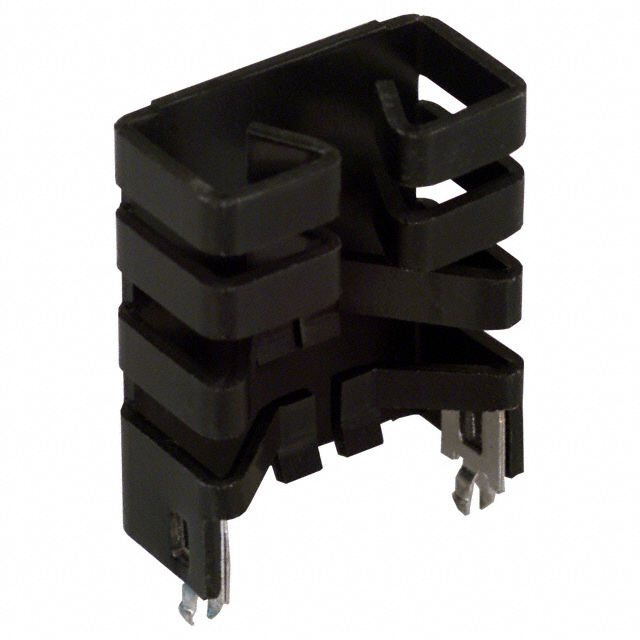

HEATSINK TO-220 CLIP-ON W/TABS
| Part | Material | Thermal Resistance @ Natural | Package Cooled | Type | Power Dissipation @ Temperature Rise | Fin Height | Fin Height | Material Finish | Attachment Method | Thermal Resistance @ Forced Air Flow | Shape [custom] | Shape [custom] | Length [x] | Length [x] | Width [x] | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Boyd Laconia, LLC | Aluminum | 11.5 °C/W | Multiwatt SIP | Board Level Vertical | 2 W | 0.5 " | 12.7 mm | Black Anodized | Clip and Board Locks | 5 °C/W | Rectangular | Fins | 30.99 mm | 1.22 in | 25.4 mm | 1 in |
