MCL Series

RF Inductors - SMD 1.5 NH 20%

Manufacturer: Eaton - Electronics Division

Catalog

RF Inductors - SMD 1.5 NH 20%

Catalog

RF Inductors - SMD 1.5 NH 20%

...

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Inductance Frequency - Test	Type	Tolerance	Inductance	Current Rating (Amps)	Package / Case	Mounting Type	Supplier Device Package	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)	Height - Seated (Max) [Max]	Size / Dimension [y]	Package / Case	Q @ Freq
Eaton - Electronics Division MCL2012V1-R390-R	0.079 in	0.047 in	1.2 mm	2 mm	85 °C	-40 C	Unshielded	1 MHz	Multilayer	20 %	390 nH	0.25 A	0805	Surface Mount	0805	300 mOhm	135 MHz	0.043 "	1.1 mm
Eaton - Electronics Division MCL1005-1R1-R	0.039 "	0.02 in	0.5 mm	1 mm	125 °C	-55 C	Unshielded	100 MHz	Multilayer	0.3 nH	1.1 nH	400 mA	0402 (1005 Metric)	Surface Mount	0402		1 GHz	0.65 mm		8	100 MHz	100 mOhm	0.026 in
Eaton - Electronics Division MCL1608V2-1R5-R	0.063 "	0.031 in		1.6 mm	85 °C	-40 C	Unshielded	100 MHz	Multilayer	0.3 nH	1.5 nH	0.5 A	0603	Surface Mount			6 GHz	1 mm		8	100 MHz	100 mOhm	0.039 in	0.8 mm	1608 Metric

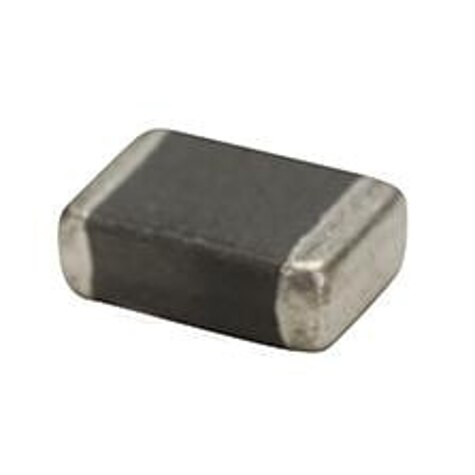

Eaton - Electronics Division MCL2012V2-1R5-R	0.079 in	0.047 in	1.2 mm	2 mm	85 °C	-40 C	Unshielded	100 MHz	Multilayer	0.3 nH	1.5 nH	0.5 A	0805	Surface Mount	0805		6 GHz	0.043 "	1.1 mm			100 mOhm				10 100 MHz
Eaton - Electronics Division MCL2012V2-1R8-R	0.079 in	0.047 in	1.2 mm	2 mm	85 °C	-40 C	Unshielded	100 MHz	Multilayer	0.3 nH	1.8 nH	0.5 A	0805	Surface Mount	0805		6 GHz	0.043 "	1.1 mm			100 mOhm				10 100 MHz
Eaton - Electronics Division MCL1608V1-1R2-R	0.063 "	0.031 in		1.6 mm	85 °C	-40 C	Unshielded	1 MHz	Multilayer	20 %	1.2 µH	150 mA	0603	Surface Mount		300 mOhm	65 MHz	1 mm					0.039 in	0.8 mm	1608 Metric
Eaton - Electronics Division MCL1608V1-2R7-R	0.063 "	0.031 in		1.6 mm	85 °C	-40 C	Unshielded	1 MHz	Multilayer	20 %	2.7 µH	100 mA	0603	Surface Mount			45 MHz	1 mm					0.039 in	0.8 mm	1608 Metric

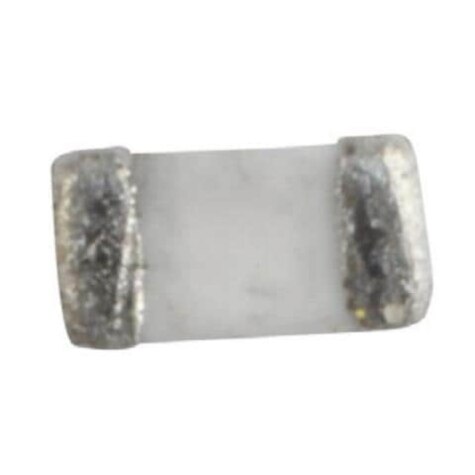

Eaton - Electronics Division MCL1005-6R8-R	0.039 "	0.02 in	0.5 mm	1 mm	125 °C	-55 C	Unshielded	100 MHz	Multilayer	5 %	6.8 nH	0.3 A	0402 (1005 Metric)	Surface Mount	0402	300 mOhm	3.9 GHz	0.65 mm		8	100 MHz		0.026 in
Eaton - Electronics Division MCL1005-221-R	0.039 "	0.02 in	0.5 mm	1 mm	125 °C	-55 C	Unshielded	100 MHz	Multilayer	5 %	220 nH	100 mA	0402 (1005 Metric)	Surface Mount	0402	4 Ohm	450 MHz	0.65 mm		8	100 MHz		0.026 in
Eaton - Electronics Division MCL2012V1-1R5-R	0.079 in	0.047 in	1.2 mm	2 mm	85 °C	-40 C	Unshielded	1 MHz	Multilayer	20 %	1.5 µH	0.18 A	0805	Surface Mount	0805	300 mOhm	60 MHz	0.043 "	1.1 mm
