TBL001 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
TERMINAL BLOCK, SCREWLESS, 5.00,
| Part | Mounting Type | Number of Levels | Color | Voltage | Pitch | Pitch | Features | Wire Termination | Mating Orientation | Current | Wire Gauge [Min] | Wire Gauge [Max] | Positions Per Level | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating [custom] | Contact Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

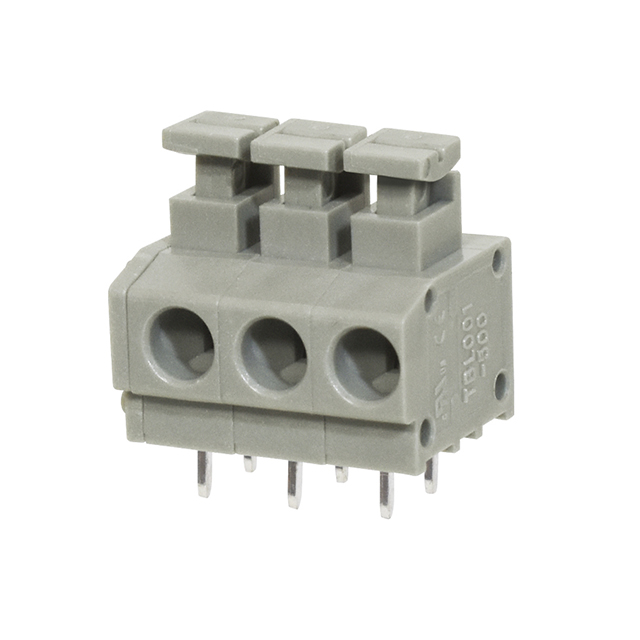

 Same Sky (Formerly CUI Devices) | Through Hole | 1 | Gray | 300 VDC | 0.197 in | 5 mm | Interlocking (Side) Push Button Actuated | Screwless - Push Button Clamp | Horizontal with Board | 5 A | 17.5 AWG | 20 AWG | 4 | ||||

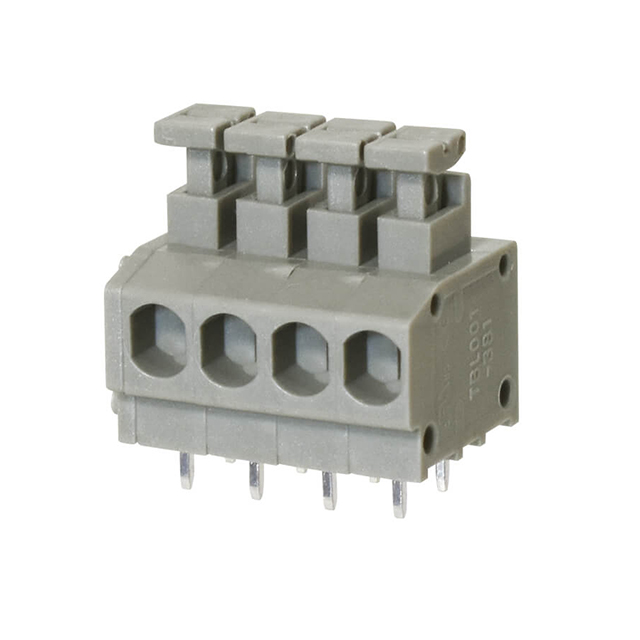

 Same Sky (Formerly CUI Devices) | Through Hole | 1 | Gray | 300 VDC | 0.15 in | 3.81 mm | Interlocking (Side) Push Button Actuated | Screwless - Push Button Clamp | Horizontal with Board | 5 A | 17.5 AWG | 20 AWG | 4 | ||||
 Same Sky (Formerly CUI Devices) | Through Hole | 1 | Gray | 300 VDC | 0.197 in | 5 mm | Interlocking (Side) Push Button Actuated | Screwless - Push Button Clamp | Horizontal with Board | 5 A | 17.5 AWG | 20 AWG | 12 | ||||
 Same Sky (Formerly CUI Devices) | Through Hole | 1 | Gray | 300 VDC | 0.197 in | 5 mm | Interlocking (Side) Push Button Actuated | Screwless - Push Button Clamp | Horizontal with Board | 5 A | 17.5 AWG | 20 AWG | 3 | ||||
 Same Sky (Formerly CUI Devices) | Through Hole | 1 | Gray | 300 VDC | 0.197 in | 5 mm | Interlocking (Side) Push Button Actuated | Screwless - Push Button Clamp | Horizontal with Board | 5 A | 17.5 AWG | 20 AWG | 5 | -40 C | 105 ░C | Stainless Steel | Copper Alloy - Tin Plated |
Same Sky (Formerly CUI Devices) | Through Hole | 1 | Gray | 300 VDC | 0.15 in | 3.81 mm | Interlocking (Side) Push Button Actuated | Screwless - Push Button Clamp | Horizontal with Board | 5 A | 17.5 AWG | 20 AWG | 4 | -40 C | 105 ░C | Stainless Steel | Copper Alloy - Tin Plated |
 Same Sky (Formerly CUI Devices) | Through Hole | 1 | Gray | 300 VDC | 0.15 in | 3.81 mm | Interlocking (Side) Push Button Actuated | Screwless - Push Button Clamp | Horizontal with Board | 5 A | 17.5 AWG | 20 AWG | 3 | ||||
 Same Sky (Formerly CUI Devices) | Through Hole | 1 | Gray | 300 VDC | 0.197 in | 5 mm | Interlocking (Side) Push Button Actuated | Screwless - Push Button Clamp | Horizontal with Board | 5 A | 17.5 AWG | 20 AWG | 2 | -40 C | 105 ░C | Stainless Steel | Copper Alloy - Tin Plated |
 Same Sky (Formerly CUI Devices) | Through Hole | 1 | Gray | 300 VDC | 0.197 in | 5 mm | Interlocking (Side) Push Button Actuated | Screwless - Push Button Clamp | Horizontal with Board | 5 A | 17.5 AWG | 20 AWG | 6 | -40 C | 105 ░C | Stainless Steel | Copper Alloy - Tin Plated |
Same Sky (Formerly CUI Devices) | Through Hole | 1 | Gray | 300 VDC | 0.197 in | 5 mm | Interlocking (Side) Push Button Actuated | Screwless - Push Button Clamp | Horizontal with Board | 5 A | 17.5 AWG | 20 AWG | 3 | -40 C | 105 ░C | Stainless Steel | Copper Alloy - Tin Plated |
