C146 10G010 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN HOOD SIDE ENTRY SZA10 PG16

Part	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Ingress Protection	Lock Location	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size	Style	Connector Type	Features

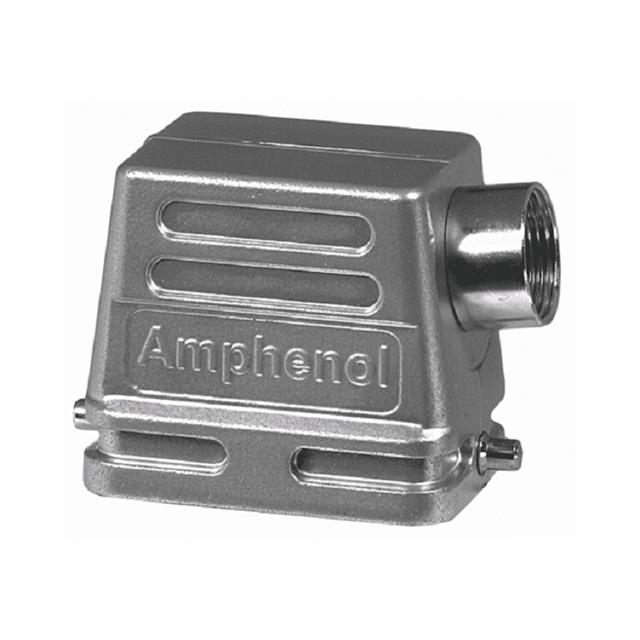

Amphenol Tuchel Industrial C146 10G010 500 4	PG16	-40 C	100 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	2.461 "	2.087 in	62.5 mm	53 mm	29.5 mm	1.161 in	A10	Side Entry	Hood
Amphenol Tuchel Industrial C146 10G010 602 1	PG16	-40 C	100 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood	2.874 "	2.008 "	73 mm	51 mm	43 mm	1.693 "	E10	Top Entry	Hood

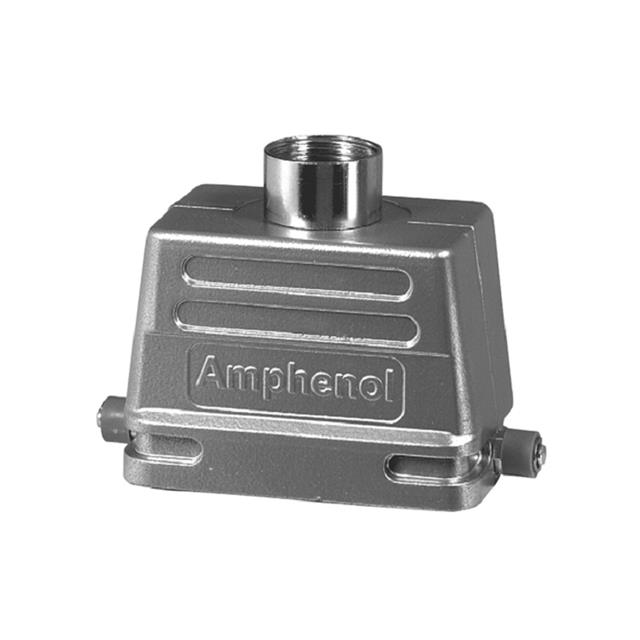

Amphenol Tuchel Industrial C146 10G010 607 1	PG21	-40 C	100 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	2.874 "	2.008 "	73 mm	51 mm	43 mm	1.693 "	E10	Top Entry	Hood
Amphenol Tuchel Industrial C146 10G010 600 1	PG16	-40 C	100 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	2.874 "	2.008 "	73 mm	51 mm	43 mm	1.693 "	E10	Top Entry	Hood

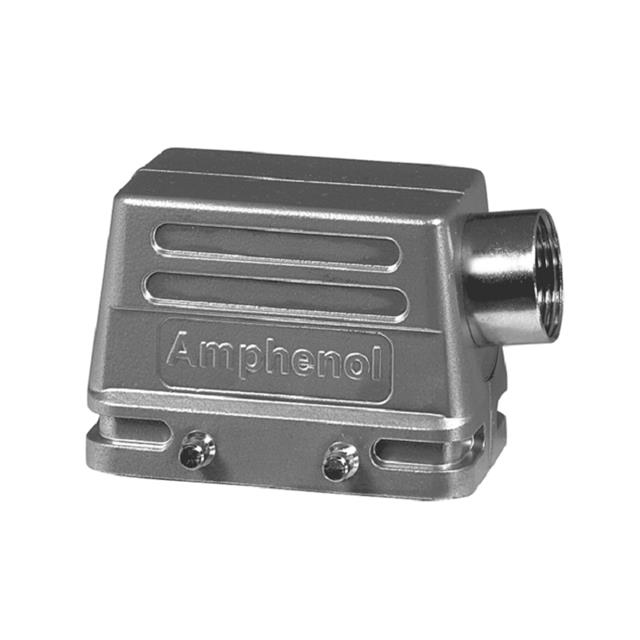

Amphenol Tuchel Industrial C146 10G010 501 1	PG21	-40 C	100 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	2.874 "	2.008 "	73 mm	51 mm	43 mm	1.693 "	E10	Side Entry	Hood

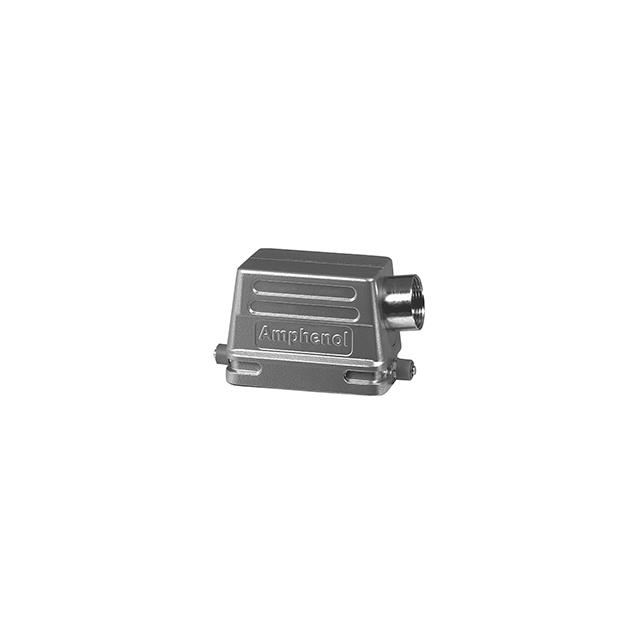

Amphenol Tuchel Industrial C146 10G010 506 1	PG16	-40 C	100 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	2.874 "	2.008 "	73 mm	51 mm	43 mm	1.693 "	E10	Side Entry	Hood

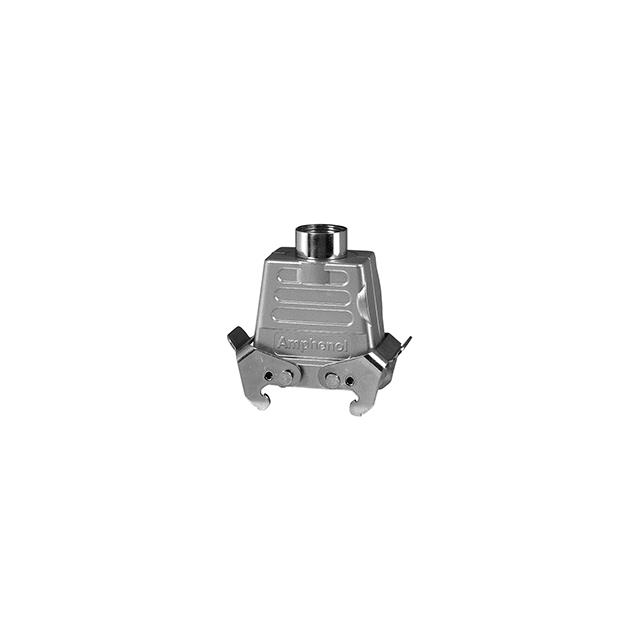

Amphenol Tuchel Industrial C146 10G010 802 8	PG21	-40 C	100 °C	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood Top	2.874 "	2.756 "	73 mm	70 mm	43 mm	1.693 "	E10	Bottom Entry Top or Bottom Entry	Hood - Coupling	Cable to Cable
Amphenol Tuchel Industrial C146 10G010 507 1	PG21	-40 C	100 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	2.874 "	2.008 "	73 mm	51 mm	43 mm	1.693 "	E10	Side Entry	Hood
Amphenol Tuchel Industrial C146 10G010 606 1	PG16	-40 C	100 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	2.874 "	2.008 "	73 mm	51 mm	43 mm	1.693 "	E10	Top Entry	Hood
Amphenol Tuchel Industrial C146 10G010 803 8	PG29	-40 C	100 °C	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood Top	2.874 "	2.756 "	73 mm	70 mm	43 mm	1.693 "	E10	Bottom Entry Top or Bottom Entry	Hood - Coupling	Cable to Cable
