ASMB-LTD2 Series

Catalog

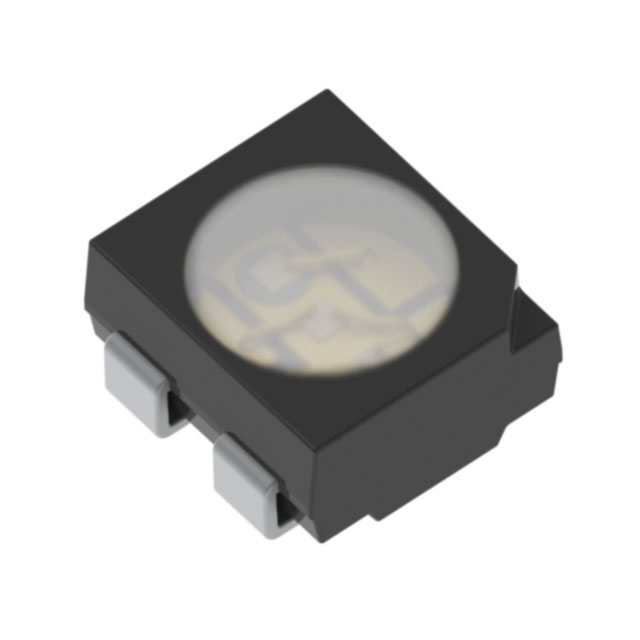

LED RGB DIFFUSED 4PLCC SMD

Part	Lens Size [diameter]	Lens Style	Package / Case	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Mounting Type	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Lens Color	Color	Configuration	Supplier Device Package	Viewing Angle	Height (Max) [Max] [z]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]
Broadcom Limited ASMB-LTD2-0A333	1.6 mm	Round with Flat Top	4-SMD J-Lead	2.9 V	2.1 V	2.9 V	Surface Mount	630 nm	464 nm	516 nm	White	Blue Green Red	Common Anode	4-PLCC	110 °	1.2 mm	190 mcd	390 mcd	870 mcd	468 nm	522 nm	621 nm	Diffused	2.1 mm	2.1 mm	15 mA	10 mA	10 mA
