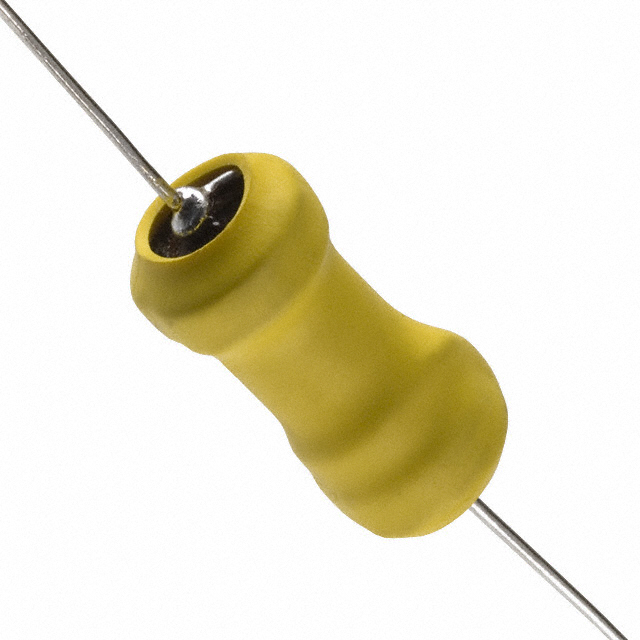

4590/R Series
Manufacturer: Delevan
Beta
⌘K
POWER INDUCTORS - LEADED 12000 UH 10%
| Part | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [diameter] | Material - Core | Mounting Type | Shielding | Type | Current - Saturation (Isat) | Inductance Frequency - Test | Inductance | Current Rating (Amps) | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | DC Resistance (DCR) | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delevan | 11.55 mm | 0.9 in | 22.86 mm | 0.455 " | Ferrite | Through Hole | Unshielded | Drum Core Wirewound | 170 mA | 1 kHz | 12 mH | 0.265 A | Axial | -55 C | 125 °C | 10 % | ||
 Delevan | 11.55 mm | 0.9 in | 22.86 mm | 0.455 " | Ferrite | Through Hole | Unshielded | Drum Core Wirewound | 740 mA | 1 kHz | 560 µH | 1.15 A | Axial | -55 C | 125 °C | 10 % | 504 mOhm | |
 Delevan | 11.55 mm | 0.9 in | 22.86 mm | 0.455 " | Ferrite | Through Hole | Unshielded | Drum Core Wirewound | 5.2 A | 1 kHz | 10 µH | 6.44 A | Axial | -55 C | 125 °C | 5 % | 16 mOhm | |
Delevan | 11.55 mm | 0.9 in | 22.86 mm | 0.455 " | Ferrite | Through Hole | Unshielded | Drum Core Wirewound | 200 mA | 1 kHz | 8.2 mH | 320 mA | Axial | -55 C | 125 °C | 10 % | 6.44 Ohm | |
Delevan | 11.55 mm | 0.9 in | 22.86 mm | 0.455 " | Ferrite | Through Hole | Unshielded | Drum Core Wirewound | 150 mA | 1 kHz | 15 mH | 0.25 A | Axial | -55 C | 125 °C | 10 % | 10.7 Ohm | |
Delevan | 11.55 mm | 0.9 in | 22.86 mm | 0.455 " | Ferrite | Through Hole | Unshielded | Drum Core Wirewound | 4.7 A | 1 kHz | 12 µH | 6.07 A | Axial | -55 C | 125 °C | 5 % | 18 mOhm | |
Delevan | 11.55 mm | 0.9 in | 22.86 mm | 0.455 " | Ferrite | Through Hole | Unshielded | Drum Core Wirewound | 2.1 A | 1 kHz | 68 µH | 3.355 A | Axial | -55 C | 125 °C | 5 % | 59 mOhm | |
Delevan | 11.55 mm | 0.9 in | 22.86 mm | 0.455 " | Ferrite | Through Hole | Unshielded | Drum Core Wirewound | 290 mA | 1 kHz | 3.9 mH | 480 mA | Axial | -55 C | 125 °C | 10 % | 2.84 Ohm | |
Delevan | 11.55 mm | 0.9 in | 22.86 mm | 0.455 " | Ferrite | Through Hole | Unshielded | Drum Core Wirewound | 7.5 A | 1 kHz | 4.7 ÁH | 9.11 A | Axial | -55 C | 125 °C | 10 % | 8 mOhm | |
Delevan | 11.55 mm | 0.9 in | 22.86 mm | 0.455 " | Ferrite | Through Hole | Unshielded | Drum Core Wirewound | 5.2 A | 1 kHz | 10 µH | 6.44 A | Axial | -55 C | 125 °C | 5 % | 16 mOhm |
