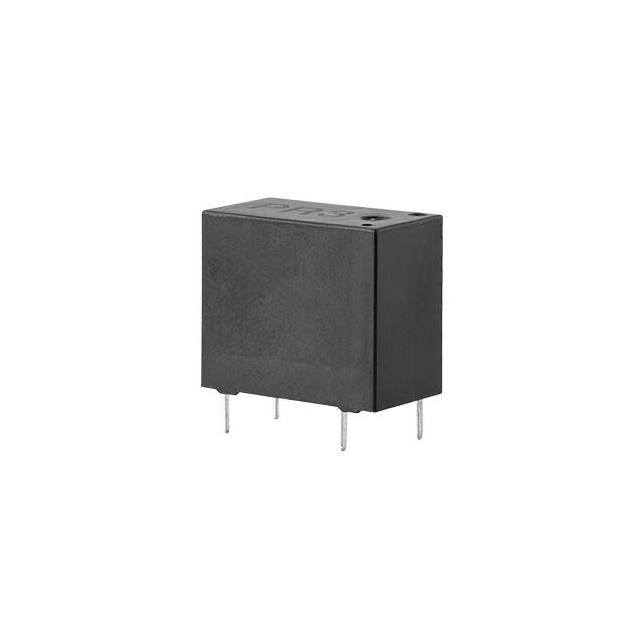

PR3-12V Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
RELAY GEN PURPOSE SPST 10A 12V
| Part | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] | Mounting Type | Termination Style | Contact Material | Contact Form | Coil Voltage | Contact Rating (Current) | Load - Max Switching | Operate Time | Must Release Voltage | Relay Type | Must Operate Voltage | Coil Type | Release Time | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 0.0375 A | 85 °C | -40 C | 28 VDC 250 VAC | Through Hole | PC Pin | Silver Alloy | SPST-NO (1 Form A) | 12 VDC | 10 A | 280 W 2500 VA | 10 ms | 1.2 VDC | General Purpose | 8.4 VDC | Non Latching | 5 ms | |
Same Sky (Formerly CUI Devices) | 0.0375 A | 85 °C | -40 C | 28 VDC 250 VAC | Through Hole | PC Pin | Silver Alloy | SPST-NO (1 Form A) | 12 VDC | 10 A | 280 W 2500 VA | 10 ms | 1.2 VDC | General Purpose | 8.4 VDC | Non Latching | 5 ms | 320 Ohms |
