C7D28 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

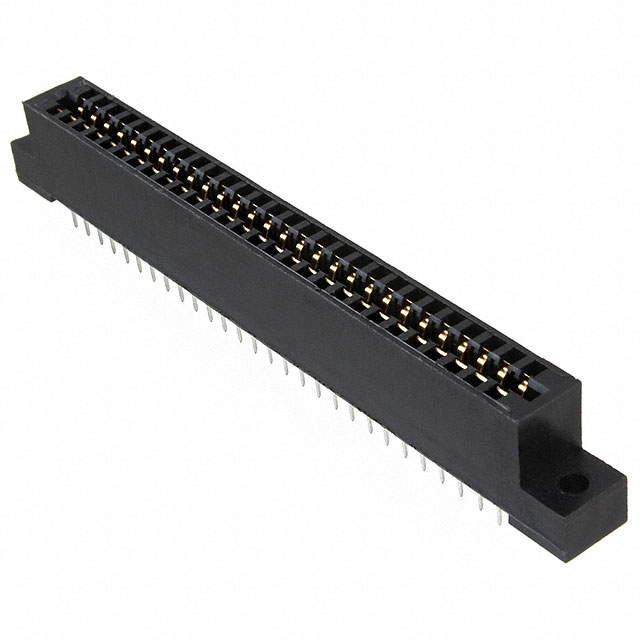

CONN EDGE DUAL FMALE 56POS 0.125
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Type | Contact Material | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Material - Insulation | Gender | Color | Termination | Number of Positions | Number of Rows [custom] | Card Type | Card Thickness [Max] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Read Out |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 125 °C | Through Hole | Cantilever | Copper Alloy | Flush Mount Top Opening Unthreaded | 3.18 mm | 0.125 " | Thermoplastic Glass Filled | Female | Black | Solder | 56 | 2 | Non Specified - Dual Edge | 0.071 in | 1.37 mm | 1.8 mm | 0.054 in | Gold | 30 Áin | 0.76 Ám | 3.18 mm | 0.125 in | Dual |
