13A Series

Catalog

BOARD MOUNT PRESSURE SENSOR 0V TO 0.1V 0PSI TO 5PSI GAGE 8-PIN TO-8

Part	Mounting Type	Supplier Device Package	Termination Style	Pressure Type	Operating Pressure	Operating Pressure	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Output [Max]	Port Style	Applications	Port Size	Port Size	Port Size	Maximum Pressure	Maximum Pressure	Accuracy	Output Type	Features	Maximum Pressure [Max]	Maximum Pressure [Max]
TE Connectivity AMP Connectors 13A-005G	Through Hole	TO-8	PC Pin	Vented Gauge	5 PSI	34.47 kPa	TO-8 Style 12 Leads	125 °C	-40 C	100 mV	Barbless	Board Mount	Male Tube	4.78 mm	0.19 in	137.9 kPa	20 PSI	0.1 %	Wheatstone Bridge	Temperature Compensated
TE Connectivity AMP Connectors 13A-030G	Through Hole	TO-8	PC Pin	Vented Gauge	30 PSI	206.84 kPa	TO-8 Style 12 Leads	125 °C	-40 C	100 mV	Barbless	Board Mount	Male Tube	4.78 mm	0.19 in	620.53 kPa		0.1 %	Wheatstone Bridge	Temperature Compensated	90 PSI
TE Connectivity AMP Connectors 13A-010G	Through Hole	TO-8	PC Pin	Vented Gauge	10 PSI	68.95 kPa	TO-8 Style 12 Leads	125 °C	-40 C	100 mV	Barbless	Board Mount	Male Tube	4.78 mm	0.19 in			0.1 %	Wheatstone Bridge	Temperature Compensated	30 PSI	206.84 kPa

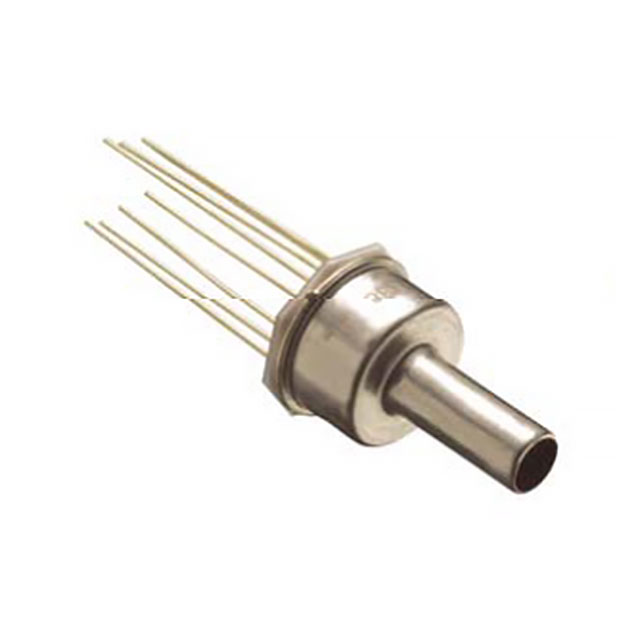

TE Connectivity AMP Connectors 13A-100G	Through Hole	TO-8	PC Pin	Vented Gauge	100 PSI	689.48 kPa	TO-8 Style 12 Leads	125 °C	-40 C	100 mV	Barbless	Board Mount	Male Tube	4.78 mm	0.19 in			0.1 %	Wheatstone Bridge	Temperature Compensated	300 PSI	2068.43 kPa
