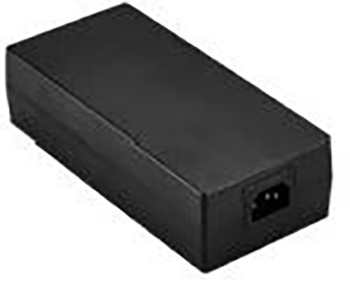

Desktop Power Supply 48V 310 Watt
Desktop Power Supply 48V 310 Watt
| Part | Power (Watts) | Standard Number | Efficiency | Input Connector | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Cord Length | Cord Length | Approval Agency | Region Utilized | Form | No Load Power Consumption | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Output Connector | Output Connector | Input Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | 310 W | 60950-1 | Level VI | IEC 320-C14 | 48 V | 264 VAC | 90 VAC | 47 in | 1.2 m | CB CCC CE cULus FCC TUV | International | Desktop (Class I) | 500 mW | ITE (Commercial) | 0 °C | 60 °C | 6.45 A | Rectangular | 6 Position | Cord (Sold Separately) | 4 " | 2 in | 7.8 in 198.1 mm |
TT Electronics/BI | 250 W | 60950-1 | Level VI | IEC 320-C14 | 15 V | 264 VAC | 90 VAC | 47 in | 1.2 m | CB CCC CE cULus FCC TUV | International | Desktop (Class I) | 500 mW | ITE (Commercial) | 0 °C | 60 °C | 16.66 A | Rectangular | 6 Position | Cord (Sold Separately) | 4 " | 2 in | 7.8 in 198.1 mm |
TT Electronics/BI | 250 W | 60950-1 | Level VI | IEC 320-C14 | 12 V | 264 VAC | 90 VAC | 47 in | 1.2 m | CB CCC CE cULus FCC TUV | International | Desktop (Class I) | 500 mW | ITE (Commercial) | 0 °C | 60 °C | 20.83 A | Rectangular | 6 Position | Cord (Sold Separately) | 4 " | 2 in | 7.8 in 198.1 mm |
TT Electronics/BI | 300 W | 60950-1 | Level VI | IEC 320-C14 | 24 V | 264 VAC | 90 VAC | 47 in | 1.2 m | CB CCC CE cULus FCC TUV | International | Desktop (Class I) | 500 mW | ITE (Commercial) | 0 °C | 60 °C | 12.5 A | Rectangular | 6 Position | Cord (Sold Separately) | 4 " | 2 in | 7.8 in 198.1 mm |
