IRS-5 Series

Manufacturer: Murata Power Solutions Inc.

Catalog

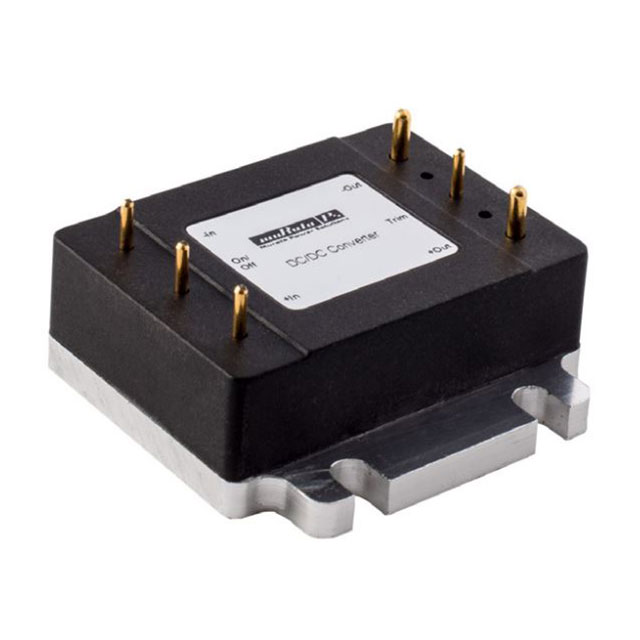

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIXTEENTH BRICK, 4:1, 50 W, 1 OUTPUT, 5 V

Part	Mounting Type	Features	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Type	Power (Watts)	Efficiency	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of Outputs	Voltage - Input (Max) [Max]	Package / Case	Control Features
Murata Power Solutions Inc. IRS-5/10-Q48P-C	Through Hole	OCP OTP OVP SCP UVLO	ITE (Commercial) Railway	1.44 "	36.5 mm	1.04 in	0.5 in	26.3 mm	12.7 mm	5 V	Isolated Module	50 W	91 %	18 V	10 A	85 °C	-40 °C	Sixteenth Brick	1	75 V	1/16 Brick 9-DIP Module
Murata Power Solutions Inc. IRS-5/10-Q48NF-C	Through Hole	OCP OTP OVP SCP UVLO	ITE (Commercial) Railway	1.44 "	36.5 mm	1.5 in	0.5 in	38.1 mm	12.7 mm	5 V	Isolated Module	50 W	91 %	18 V	10 A	85 °C	-40 °C	Sixteenth Brick	1	75 V	1/16 Brick 9-DIP Module
Murata Power Solutions Inc. IRS-5/10-Q48N-C	Through Hole	OCP OTP OVP SCP UVLO	ITE (Commercial) Railway	1.44 "	36.5 mm	1.04 in	0.5 in	26.3 mm	12.7 mm	5 V	Isolated Module	50 W	91 %	18 V	10 A	85 °C	-40 °C	Sixteenth Brick	1	75 V	1/16 Brick 9-DIP Module
Murata Power Solutions Inc. IRS-5/10-Q48PF-C	Through Hole	OCP OTP OVP SCP UVLO	ITE (Commercial) Railway	1.44 "	36.5 mm	1.5 in	0.5 in	38.1 mm	12.7 mm	5 V	Isolated Module	50 W	91 %	18 V	10 A	85 °C	-40 °C	Sixteenth Brick	1	75 V	1/16 Brick 9-DIP Module
Murata Power Solutions Inc. IRS-5/10-Q12PF-C	Through Hole	OTP OVP Remote On/Off SCP	ITE (Commercial)	1.44 "	36.5 mm	1.5 in	0.5 in	38.1 mm	12.7 mm	5 V	Isolated Module	50 W	91 %	9 V	10 A	85 °C	-40 °C	Sixteenth Brick	1	36 V	Sixteenth Brick	Active High Enable
Murata Power Solutions Inc. IRS-5/10-Q12P-C	Through Hole	OTP OVP Remote On/Off SCP	ITE (Commercial)	1.44 "	36.5 mm	1.04 in	0.5 in	26.3 mm	12.7 mm	5 V	Isolated Module	50 W	91 %	9 V	10 A	85 °C	-40 °C	Sixteenth Brick	1	36 V	Sixteenth Brick	Active High Enable
Murata Power Solutions Inc. IRS-5/10-Q12NF-C	Through Hole	OTP OVP Remote On/Off SCP	ITE (Commercial)	1.44 "	36.5 mm	1.5 in	0.5 in	38.1 mm	12.7 mm	5 V	Isolated Module	50 W	91 %	9 V	10 A	85 °C	-40 °C	Sixteenth Brick	1	36 V	Sixteenth Brick	Active Low Enable
