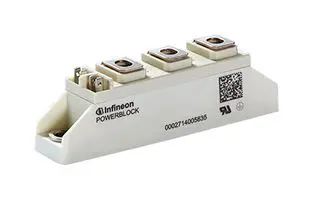

TT60N16 Series
Manufacturer: INFINEON
Beta
⌘K
1600 V, 55 A ECO BLOCK 20 MM THYRISTOR / THYRISTOR PHASE CONTROL MODULES
| Part | Package / Case | Structure | Current - On State (It (AV)) (Max) | Mounting Type | Voltage - Off State | Current - On State (It (RMS)) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Hold (Ih) (Max) [Max] | Number of SCRs, Diodes | Current - Non Rep. Surge 50, 60Hz (Itsm) | Voltage - Gate Trigger (Vgt) (Max) [Max] | Current - Gate Trigger (Igt) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Module | Series Connection - All SCRs | 55 A | Chassis Mount | 1.6 kV | 90 A | 125 °C | -40 C | 250 mA | 2 SCRs | 1500 A | 2.5 V | 100 mA |
