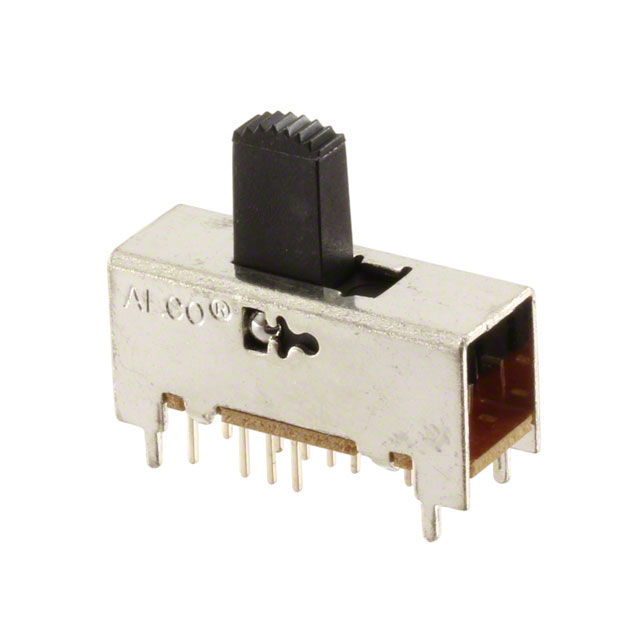

MSSA335 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH SLIDE 3P3T 300MA 125V
| Part | Switch Travel | Mechanical Life | Operating Force | Electrical Life | Actuator Material | Current Rating (Amps) | Contact Timing | Actuator Type | Features | Mounting Type | Termination Style | Actuator Length [x] | Voltage Rating - AC | Circuit | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Switch Function | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2 mm | 15000 Cycles | 470 gf | 15000 Cycles | Polyester | 300 mA | Shorting (MBB) | Standard | Epoxy Sealed Terminals | Through Hole | PC Pin | 10.41 mm | 125 V | 3P3T | Copper Alloy | 85 °C | -20 ░C | Silver | On-On-On | |
 TE Connectivity AMP Connectors | 2 mm | 15000 Cycles | 470 gf | 15000 Cycles | Polyester | 0.4 VA | Shorting (MBB) | Standard | Epoxy Sealed Terminals | Through Hole | PC Pin | 10.41 mm | 20 V | 3P3T | Copper Alloy | 85 °C | -20 ░C | Gold | On-On-On | 20 V |
