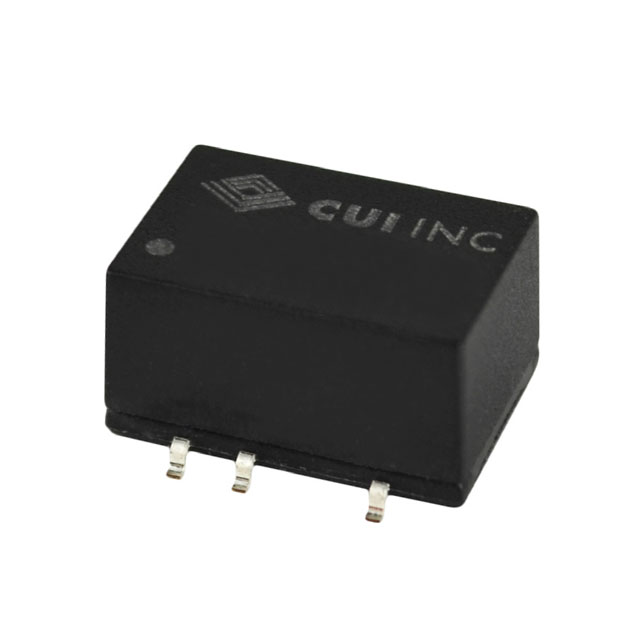

PCN1-S12 Series

Manufacturer: CUI Inc.

Catalog

MODULE DC-DC 12VIN 2-OUT -12V/12V -0.042A/0.042A 1W 6-PIN SMD MODULE T/R

Part	Voltage - Input (Min) [Min]	Mounting Type	Approval Agency	Package / Case	Efficiency	Features	Standard Number	Applications	Number of Outputs	Voltage - Output 2	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Current - Output (Max)	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Current - Output (Max) [Max]	Current - Output (Max) [Min]	Current - Output (Max)	Current - Output (Max)
CUI Inc. PCN1-S12-D12-M-TR	10.8 V	Surface Mount	EN	10-SMD Module 5 Leads	80 %	SCP	55032 Class A	ITE (Commercial)	2	-12 V	1.5 kV	-40 C	100 °C	13.2 V	42 mA	12 V	0.64 "	0.39 in	0.29 in	7.4 mm	16.2 mm	9.8 mm	Isolated Module
CUI Inc. PCN1-S12-D15-M	10.8 V	Surface Mount		10-SMD Module 5 Leads	81 %	SCP		ITE (Commercial)	2	-15 V	1.5 kV	-40 C	100 °C	13.2 V		15 V	0.64 "	0.39 in	0.29 in	7.4 mm	16.2 mm	9.8 mm	Isolated Module	33 mA	33 mA
CUI Inc. PCN1-S12-S15-M	10.8 V	Surface Mount		8-SMD Module 5 Leads	79 %	SCP		ITE (Commercial)	1		1.5 kV	-40 C	100 °C	13.2 V		15 V	0.54 in	0.39 in	0.29 in	7.4 mm	13.7 mm	9.8 mm	Isolated Module	67 mA
CUI Inc. PCN1-S12-D12-S	10.8 V	Through Hole	EN	6-SIP Module 5 Leads	80 %	SCP	55032 Class A	ITE (Commercial)	2	-12 V	1.5 kV	-40 C	100 °C	13.2 V	42 mA	12 V	0.77 in	0.28 in	0.4 "	10.2 mm	19.5 mm	7.2 mm	Isolated Module
CUI Inc. PCN1-S12-D15-S	10.8 V	Through Hole	EN	6-SIP Module 5 Leads	81 %	SCP	55032 Class A	ITE (Commercial)	2	-15 V	1.5 kV	-40 C	100 °C	13.2 V		15 V	0.77 in	0.28 in	0.4 "	10.2 mm	19.5 mm	7.2 mm	Isolated Module	33 mA	33 mA
CUI Inc. PCN1-S12-D5-S	10.8 V	Through Hole	EN	6-SIP Module 5 Leads	77 %	SCP	55032 Class A	ITE (Commercial)	2	-5 V	1.5 kV	-40 C	100 °C	13.2 V		5 V	0.77 in	0.28 in	0.4 "	10.2 mm	19.5 mm	7.2 mm	Isolated Module			100 mA	100 mA
