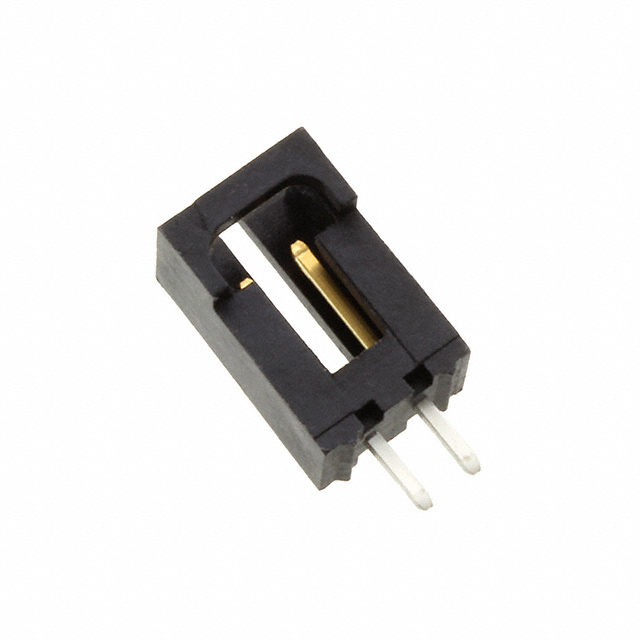

070543 Series

2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 11 Circuits, Tin (Sn) Plating

Manufacturer: Molex

Catalog

2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 11 Circuits, Tin (Sn) Plating

Part	Termination	Number of Positions	Voltage Rating	Contact Length - Mating	Contact Length - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Type	Applications	Contact Material	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Mounting Type	Contact Shape	Shrouding	Connector Type	Insulation Material	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Style	Contact Finish - Post	Fastening Type	Contact Finish - Mating	Insulation Height	Insulation Height	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]
Molex 0705430106	Solder	2	250 VDC	6.1 mm	0.24 in	-40 °C	105 ░C	0.13 in	3.3 mm	11.94 mm	0.47 "	Male Pin	Automotive General Purpose Industrial Medical	Phosphor Bronze	Black	74.8 Áin	1.9 Ám	UL94 V-0	Through Hole	Square	Shrouded - 4 Wall	Header	Polyester Glass Filled	All	0.1 in	2.54 mm	30 Áin	0.76 Ám	1	Board to Cable/Wire	Tin	Latch Holder	Gold	0.465 in	11.8 mm
Molex 0705430079	Solder	10	250 VDC	6.1 mm	0.24 in	-40 °C	105 ░C				12.45 mm	Male Pin	Automotive General Purpose Industrial Medical	Phosphor Bronze	Black	150 Áin	3.81 Ám	UL94 V-0	Through Hole	Square	Shrouded - 4 Wall	Header	Polyester Glass Filled	All	0.1 in	2.54 mm	150 Áin	3.81 Ám	1	Board to Cable/Wire	Tin	Latch Holder		0.465 in	11.8 mm	0.49 "	0.15 in	3.81 mm
Molex 0705430038	Solder	4	250 VDC	6.1 mm	0.24 in	-40 °C	105 ░C	0.13 in	3.3 mm	11.94 mm	0.47 "	Male Pin	Automotive General Purpose Industrial Medical	Phosphor Bronze	Black	150 Áin	3.81 Ám	UL94 V-0	Through Hole	Square	Shrouded - 4 Wall	Header	Polyester Glass Filled	All	0.1 in	2.54 mm	150 Áin	3.81 Ám	1	Board to Cable/Wire	Tin	Latch Holder		0.465 in	11.8 mm
Molex 0705430275	Solder		250 VDC	6.1 mm	0.24 in	-40 °C	105 ░C	0.16 in	4.06 mm		12.7 mm	Male Pin	Automotive General Purpose Industrial Medical	Phosphor Bronze	Black	74.8 Áin	1.9 Ám	UL94 V-0	Through Hole	Square	Shrouded - 4 Wall	Header	Polyester Glass Filled	All	0.1 in	2.54 mm	15 µin	0.38 µm	1	Board to Cable/Wire	Tin	Latch Holder	Gold	0.465 in	11.8 mm	0.5 "
Molex 0705430166	Solder		250 VDC	6.1 mm	0.24 in	-40 °C	105 ░C				12.45 mm	Male Pin	Automotive General Purpose Industrial Medical	Phosphor Bronze	Black	74.8 Áin	1.9 Ám	UL94 V-0	Through Hole	Square	Shrouded - 4 Wall	Header	Polyester Glass Filled	All	0.1 in	2.54 mm	30 Áin	0.76 Ám	1	Board to Cable/Wire	Tin	Latch Holder	Gold	0.465 in	11.8 mm	0.49 "	0.15 in	3.81 mm
Molex 0705430117	Solder	13	250 VDC	6.1 mm	0.24 in	-40 °C	105 ░C	0.13 in	3.3 mm	11.94 mm	0.47 "	Male Pin	Automotive General Purpose Industrial Medical	Phosphor Bronze	Black	74.8 Áin	1.9 Ám	UL94 V-0	Through Hole	Square	Shrouded - 4 Wall	Header	Polyester Glass Filled	All	0.1 in	2.54 mm	30 Áin	0.76 Ám	1	Board to Cable/Wire	Tin	Latch Holder	Gold	0.465 in	11.8 mm

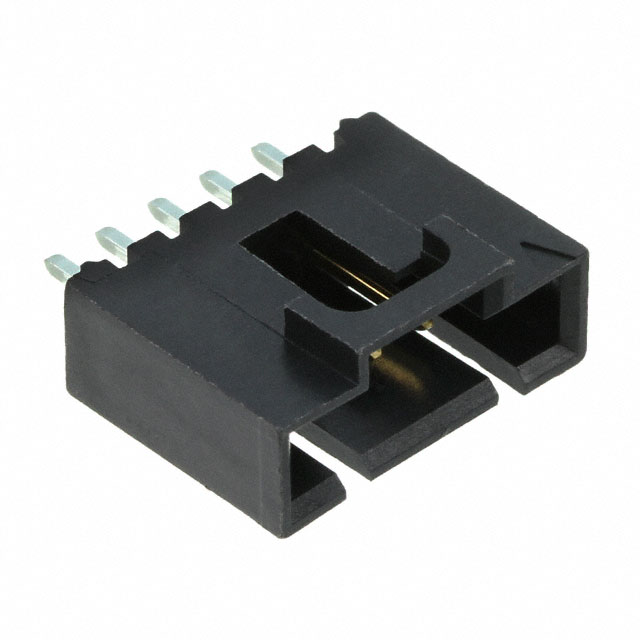

Molex 0705430004	Solder		250 VDC	6.1 mm	0.24 in	-40 °C	105 ░C	0.13 in	3.3 mm	11.94 mm	0.47 "	Male Pin	Automotive General Purpose Industrial Medical	Phosphor Bronze	Black	74.8 Áin	1.9 Ám	UL94 V-0	Through Hole	Square	Shrouded - 4 Wall	Header	Polyester Glass Filled	All	0.1 in	2.54 mm	15 µin	0.38 µm	1	Board to Cable/Wire	Tin	Latch Holder	Gold	0.465 in	11.8 mm
Molex 0705430012	Solder	13	250 VDC	6.1 mm	0.24 in	-40 °C	105 ░C	0.13 in	3.3 mm	11.94 mm	0.47 "	Male Pin	Automotive General Purpose Industrial Medical	Phosphor Bronze	Black	74.8 Áin	1.9 Ám	UL94 V-0	Through Hole	Square	Shrouded - 4 Wall	Header	Polyester Glass Filled	All	0.1 in	2.54 mm	15 µin	0.38 µm	1	Board to Cable/Wire	Tin	Latch Holder	Gold	0.465 in	11.8 mm

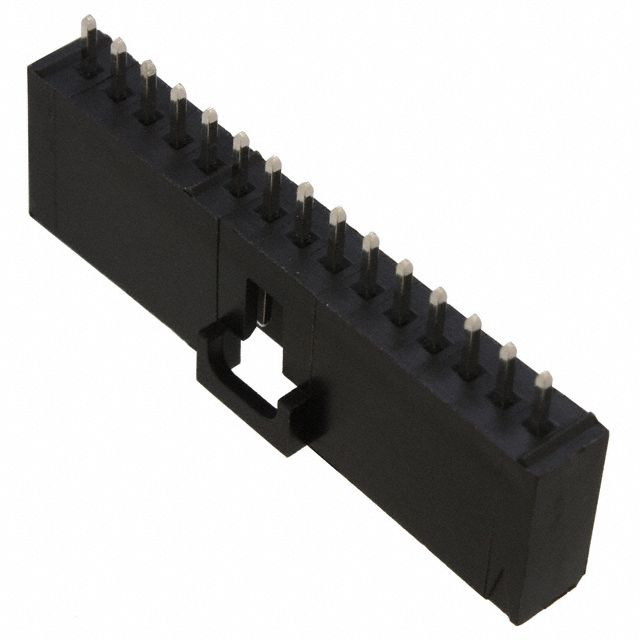

Molex 0705430049	Solder	15	250 VDC	6.1 mm	0.24 in	-40 °C	105 ░C	0.13 in	3.3 mm	11.94 mm	0.47 "	Male Pin	Automotive General Purpose Industrial Medical	Phosphor Bronze	Black	150 Áin	3.81 Ám	UL94 V-0	Through Hole	Square	Shrouded - 4 Wall	Header	Polyester Glass Filled	All	0.1 in	2.54 mm	150 Áin	3.81 Ám	1	Board to Cable/Wire	Tin	Latch Holder		0.465 in	11.8 mm

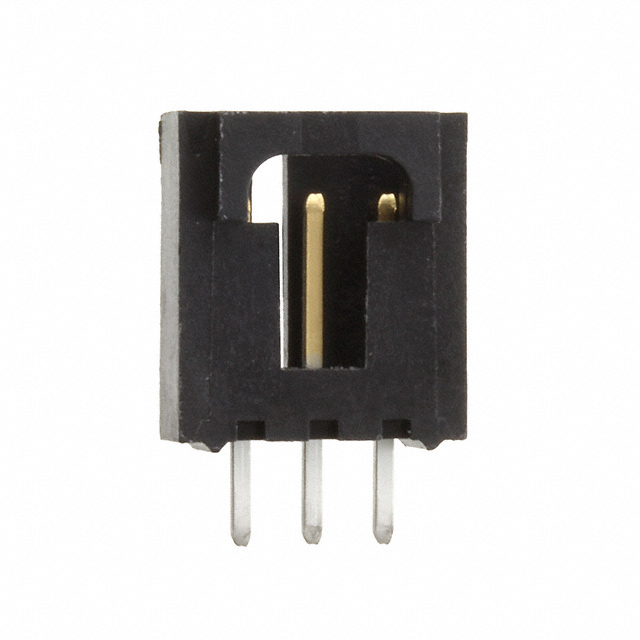

Molex 0705430002	Solder		250 VDC	6.1 mm	0.24 in	-40 °C	105 ░C	0.13 in	3.3 mm	11.94 mm	0.47 "	Male Pin	Automotive General Purpose Industrial Medical	Phosphor Bronze	Black	74.8 Áin	1.9 Ám	UL94 V-0	Through Hole	Square	Shrouded - 4 Wall	Header	Polyester Glass Filled	All	0.1 in	2.54 mm	15 µin	0.38 µm	1	Board to Cable/Wire	Tin	Latch Holder	Gold	0.465 in	11.8 mm
