YB16WR Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSHBUTTON SPDT 3A 125V
| Part | Electrical Life | Mechanical Life | Type | Current Rating (Amps) | Illumination Voltage (Nominal) | Features | Color - Actuator/Cap | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Actuator Type | Termination Style | Switch Function | Illumination Type, Color | Mounting Type | Circuit | Actuator Marking | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

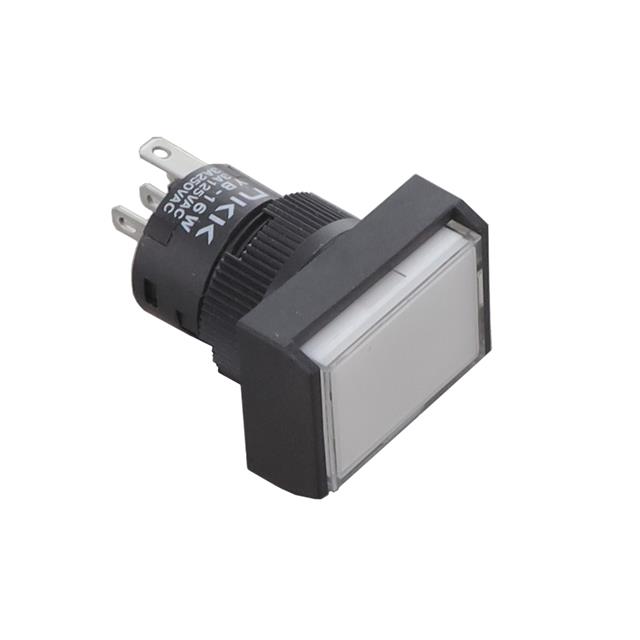

 NKK Switches | 100000 Cycles | 200000 Cycles | Illuminated Standard | 3 A | 3.3 VDC | Tactile Feedback | Clear | 16 mm | 125 V | Button Rectangular | Solder Quick Connect - 0.110" (2.8mm) | On-On | LED White | Panel Mount Front | SPDT | No Marking | 30 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant |

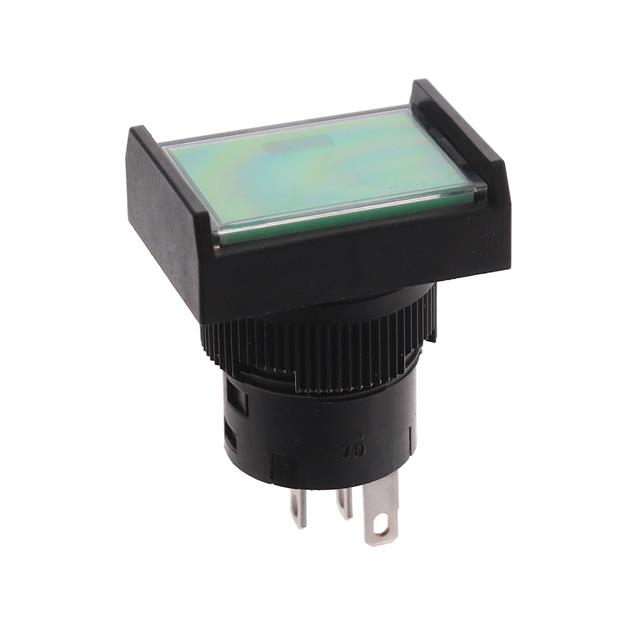

 NKK Switches | 100000 Cycles | 200000 Cycles | Illuminated Standard | 3 A | 12 VDC | Tactile Feedback | Clear | 16 mm | 125 V | Button Rectangular | Solder Quick Connect - 0.110" (2.8mm) | On-On | Green LED | Panel Mount Front | SPDT | No Marking | 30 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant |
 NKK Switches | 100000 Cycles | 200000 Cycles | Illuminated Standard | 3 A | 3.6 VDC | Tactile Feedback | Clear | 16 mm | 125 V | Button Rectangular | Solder Quick Connect - 0.110" (2.8mm) | On-On | Blue LED | Panel Mount Front | SPDT | No Marking | 30 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant |
NKK Switches | 100000 Cycles | 200000 Cycles | Illuminated Standard | 0.4 VA | 12 VDC | Tactile Feedback | Clear | 16 mm | 28 V | Button Rectangular | Solder Quick Connect - 0.110" (2.8mm) | On-On | Green/Red LED | Panel Mount Front | SPDT | No Marking | 28 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant |
 NKK Switches | 100000 Cycles | 200000 Cycles | Illuminated Standard | 0.4 VA | 5 VDC | Tactile Feedback | Clear | 16 mm | 28 V | Button Rectangular | Solder Lug | On-On | Green/Red LED | Panel Mount Front | SPDT | No Marking | 28 V | 70 °C | -25 °C | IP65 - Dust Tight Water Resistant |
NKK Switches | 100000 Cycles | 200000 Cycles | Illuminated Standard | 0.4 VA | 24 V | Tactile Feedback | Clear | 16 mm | 28 V | Button Rectangular | Solder Quick Connect - 0.110" (2.8mm) | On-On | Amber LED | Panel Mount Front | SPDT | No Marking | 28 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant |
NKK Switches | 100000 Cycles | 200000 Cycles | Illuminated Standard | 3 A | 24 V | Tactile Feedback | Clear | 16 mm | 125 V | Button Rectangular | Solder Quick Connect - 0.110" (2.8mm) | On-On | Amber LED | Panel Mount Front | SPDT | No Marking | 30 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant |
NKK Switches | 100000 Cycles | 200000 Cycles | Illuminated Standard | 0.4 VA | 2.2 VDC | Tactile Feedback | Clear | 16 mm | 28 V | Button Rectangular | Solder Quick Connect - 0.110" (2.8mm) | On-On | Green LED | Panel Mount Front | SPDT | No Marking | 28 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant |
NKK Switches | 100000 Cycles | 200000 Cycles | Illuminated Standard | 3 A | 12 VDC | Tactile Feedback | Clear | 16 mm | 125 V | Button Rectangular | Solder Quick Connect - 0.110" (2.8mm) | On-On | LED Red | Panel Mount Front | SPDT | No Marking | 30 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant |
NKK Switches | 100000 Cycles | 200000 Cycles | Standard | 0.4 VA | Tactile Feedback | 16 mm | 28 V | Plunger for Cap | Solder Quick Connect - 0.110" (2.8mm) | On-On | Panel Mount Front | SPDT | No Marking | 28 V | 70 °C | -25 °C | IP65 - Dust Tight Water Resistant |
