Ksc10 Series Series

Sealed Tact Switch for SMT

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Sealed Tact Switch for SMT

Part	Mechanical Life	Circuit	Switch Function	Switch Travel [custom]	Actuator Height off PCB, Vertical [z]	Ingress Protection	Actuator Orientation	Termination Style	Illumination	Mounting Type	Actuator Type	Outline [y]	Outline [x]	Operating Force	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel

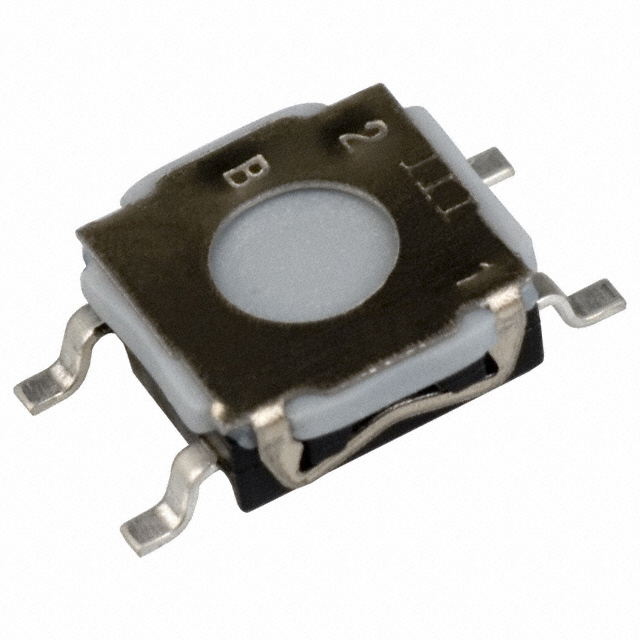

Littelfuse/Commercial Vehicle Products KSC121G	200000 Cycles	SPST-NO	Off-Mom	0.3 mm	2.5 mm	IP67 - Dust Tight Waterproof	Top Actuated	Gull Wing	Non-Illuminated	Surface Mount	Without	6.2 mm	6.2 mm	180 gf	0.05 A	85 °C	-40 °C

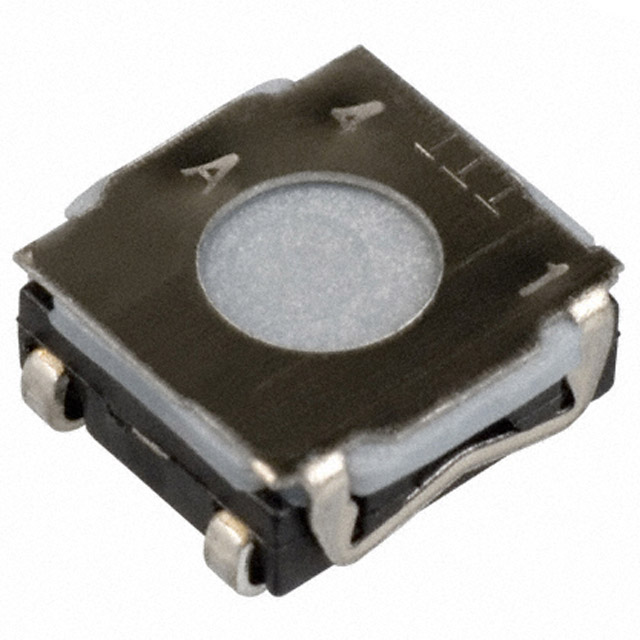

Littelfuse/Commercial Vehicle Products KSC141J	200000 Cycles	SPST-NO	Off-Mom	0.3 mm	2.5 mm	IP67 - Dust Tight Waterproof	Top Actuated	J Lead	Non-Illuminated	Surface Mount	Without	6.2 mm	6.2 mm	300 gf	0.05 A	85 °C	-40 °C
Littelfuse/Commercial Vehicle Products KSC151G	100000 Cycles	SPST-NO	Off-Mom		2.5 mm	IP67 - Dust Tight Waterproof	Top Actuated	Gull Wing	Non-Illuminated	Surface Mount	Without	6.2 mm	6.2 mm	550 gf	0.05 A	85 °C	-40 °C	0.35 mm
Littelfuse/Commercial Vehicle Products KSC121GLFS	200000 Cycles	SPST-NO	Off-Mom	0.3 mm	2.5 mm	IP67 - Dust Tight Waterproof	Top Actuated	Gull Wing	Non-Illuminated	Surface Mount	Without	6.2 mm	6.2 mm	180 gf	0.05 A	85 °C	-40 °C
Littelfuse/Commercial Vehicle Products KSC151JLFS	100000 Cycles	SPST-NO	Off-Mom		2.5 mm	IP67 - Dust Tight Waterproof	Top Actuated	J Lead	Non-Illuminated	Surface Mount	Without	6.2 mm	6.2 mm	550 gf	0.05 A	85 °C	-40 °C	0.35 mm
Littelfuse/Commercial Vehicle Products KSC141JLFS	200000 Cycles	SPST-NO	Off-Mom	0.3 mm	2.5 mm	IP67 - Dust Tight Waterproof	Top Actuated	J Lead	Non-Illuminated	Surface Mount	Without	6.2 mm	6.2 mm	300 gf	0.05 A	85 °C	-40 °C
Littelfuse/Commercial Vehicle Products KSC141G	200000 Cycles	SPST-NO	Off-Mom	0.3 mm	2.5 mm	IP67 - Dust Tight Waterproof	Top Actuated	Gull Wing	Non-Illuminated	Surface Mount	Without	6.2 mm	6.2 mm	300 gf	0.05 A	85 °C	-40 °C

Catalog

Sealed Tact Switch for SMT

Key Features

• without actuator 2,5mm high

• Positive tactile feeling

• IP67

Description

C&K’s KSC1 Series Sealed Tact Switch for SMT is a 2.5mm high switch, designed to give users a positive tactile feeling when used. Perfect for industrial electronics, consumer products, instrumentation or automotive applications, the KSC1 Series is IP67 rated and built to be highly responsive and long-lasting, even when used in the harshest of environments.
