34EWMSP Series

Catalog

TOGGLE SWITCHES TOGGLE SWITCH SPDT ON-NONE-ON

Part	Electrical Life	Actuator Material	Actuator Length [x]	Voltage Rating - AC	Current Rating (Amps)	Termination Style	Ingress Protection	Actuator Type	Features	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Switch Function	Voltage Rating - DC	Illumination	Bushing Thread

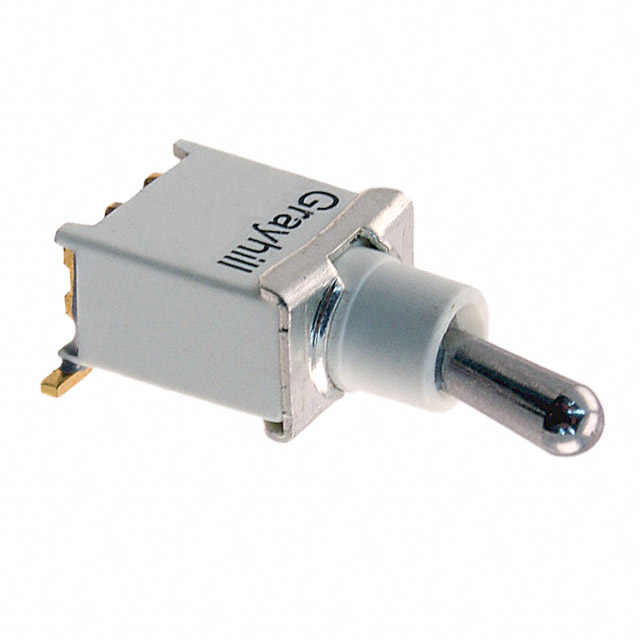

Grayhill Inc. 34EWMSP12M6RT	30000 Cycles	Brass Chrome Plated	6.1 mm	20 V	0.4 VA	Gull Wing	IP67 - Dust Tight Waterproof	Standard Round	Epoxy Sealed Terminals	SPDT	85 °C	-30 ░C	Right Angle Surface Mount	On-On	20 V	Non-Illuminated	Unthreaded
Grayhill Inc. 34EWMSP31M6RT	30000 Cycles	Brass Chrome Plated	10.8 mm	20 V	0.4 VA	Gull Wing	IP67 - Dust Tight Waterproof	Standard Round	Epoxy Sealed Terminals	SPDT	85 °C	-30 ░C	Right Angle Surface Mount	On-Off-On	20 V	Non-Illuminated	Unthreaded
Grayhill Inc. 34EWMSP34M7RT	30000 Cycles	Brass Chrome Plated	6.7 mm	20 V	0.4 VA	Gull Wing	IP67 - Dust Tight Waterproof	Standard Round	Epoxy Sealed Terminals	SPDT	85 °C	-30 ░C	Right Angle Surface Mount Vertical	On-Off-On	20 V	Non-Illuminated	Unthreaded
Grayhill Inc. 34EWMSP33M6RT	30000 Cycles	Brass Chrome Plated	10.8 mm	20 V	0.4 VA	Gull Wing	IP67 - Dust Tight Waterproof	Standard Round	Epoxy Sealed Terminals	SPDT	85 °C	-30 ░C	Right Angle Surface Mount	On-Off-On	20 V	Non-Illuminated	Unthreaded

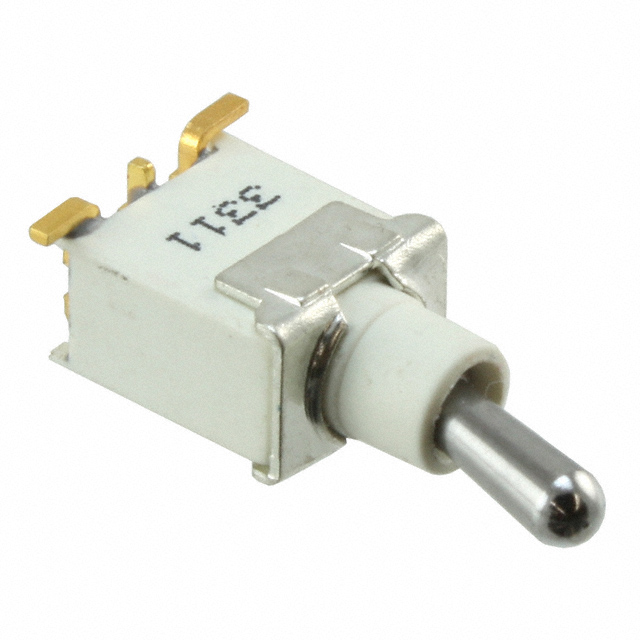

Grayhill Inc. 34EWMSP22M6RT	30000 Cycles	Brass Chrome Plated	6.1 mm	20 V	0.4 VA	Gull Wing	IP67 - Dust Tight Waterproof	Standard Round	Epoxy Sealed Terminals	SPDT	85 °C	-30 ░C	Right Angle Surface Mount	On-Mom	20 V	Non-Illuminated	Unthreaded
