LCM-S04002 Series

Catalog

LCD MOD 80 DIG 40 X 2 REFLECTIVE

Part	Outline L x W x H [z]	Outline L x W x H [x]	Outline L x W x H [y]	Character Size [y]	Character Size [z]	Display Format [y]	Display Format [x]	Operating Temperature [Max]	Operating Temperature [Min]	Viewing Area [x]	Viewing Area [y]	Backlight	Display Mode	Interface	Dot Size [custom]	Dot Size [custom]	Number of Characters	Character Format [x]	Character Format [y]	Display Type	Background Color
Lumex Opto/Components Inc. LCM-S04002DSR	8.8 mm	182 mm	33.5 mm	3.2 mm	5.55 mm	2	40	50 °C	0 °C	154 mm	15.3 mm		Reflective	Parallel	0.65 mm	0.6 mm	80	5 Dots	8 Dots	STN - Super-Twisted Nematic

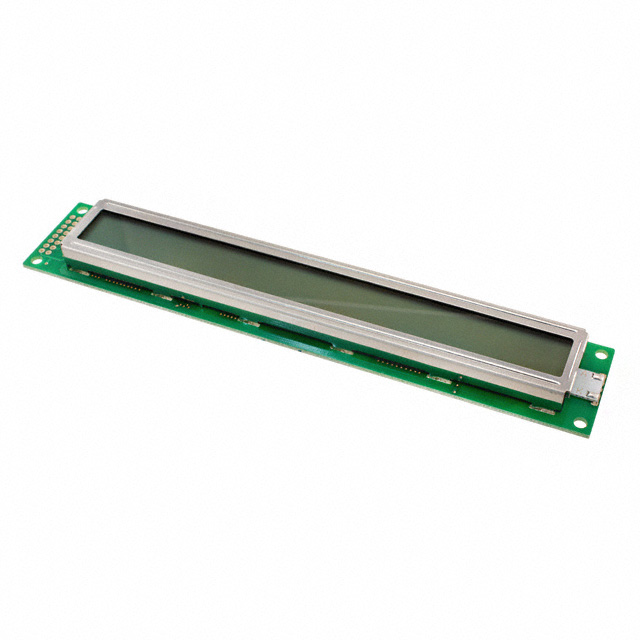

Lumex Opto/Components Inc. LCM-S04002DSF	12.7 mm	182 mm	33.5 mm	3.2 mm	5.55 mm	2	40	50 °C	0 °C	154 mm	15.3 mm		Transflective	Parallel	0.65 mm	0.6 mm	80	5 Dots	8 Dots	STN - Super-Twisted Nematic	Green
