C146 10N006 Series

Catalog

CONN BASE SIDE ENTRY SZE6 M25

Part	Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Ingress Protection	Thread Size	Housing Material	Connector Type	Lock Location	Operating Temperature [Min]	Operating Temperature [Max]	Features

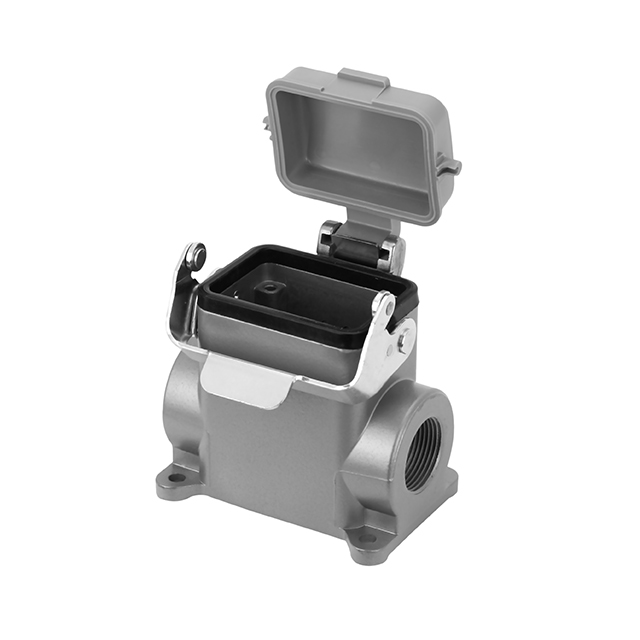

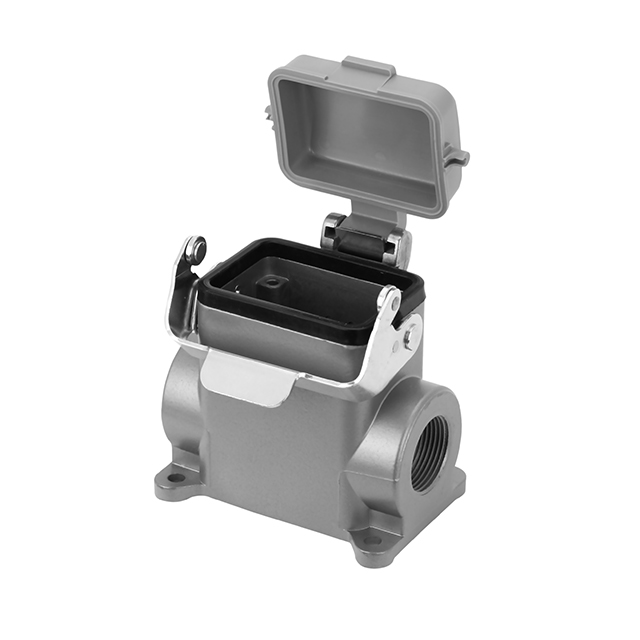

Amphenol Tuchel Industrial C146 10N006 807 2	Side Entry	84 mm	74 mm	2.126 in	54 mm	3.307 "	2.913 in	IP65 - Dust Tight Water Resistant	M25	Aluminum Alloy Die Cast	Base - Box Mount	Locking Clip (1) on Base Bottom	-40 C	100 °C	Cover
Amphenol Tuchel Industrial C146 10N006 507 1	Side Entry	84 mm	54 mm	2.126 in	54 mm	3.307 "	2.126 in	IP65 - Dust Tight Water Resistant	M20	Aluminum Alloy Die Cast	Base - Box Mount	Locking Clip (1) on Base Bottom	-40 C	100 °C	Cover

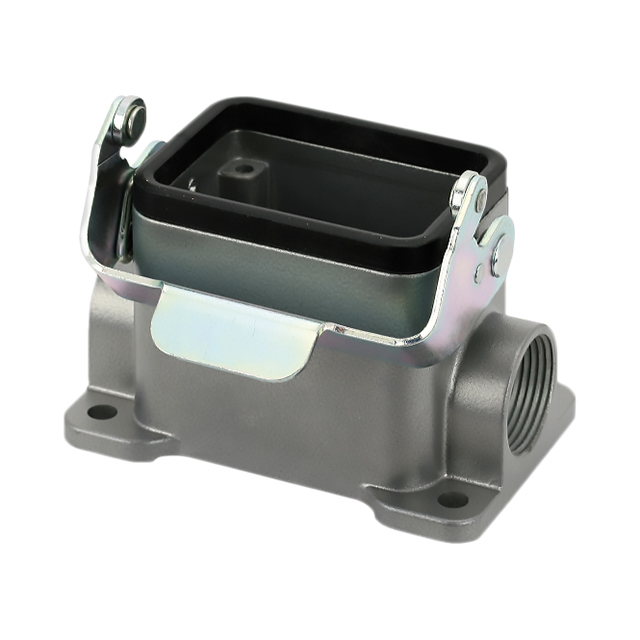

Amphenol Tuchel Industrial C146 10N006 603 1	Side Entry	84 mm	54 mm	2.126 in	54 mm	3.307 "	2.126 in	IP65 - Dust Tight Water Resistant	M20	Aluminum Alloy Die Cast	Base - Box Mount	Locking Clip (1) on Base Bottom	-40 C	100 °C	Feed Through
Amphenol Tuchel Industrial C146 10N006 806 1	Side Entry	84 mm	54 mm	2.126 in	54 mm	3.307 "	2.126 in	IP65 - Dust Tight Water Resistant	M25	Aluminum Alloy Die Cast	Base - Box Mount	Locking Clip (1) on Base Bottom	-40 C	100 °C	Cover
