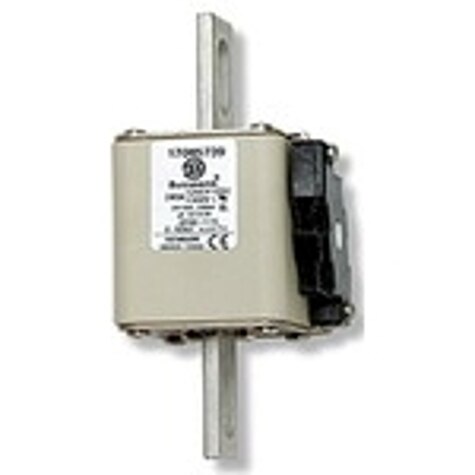

170M Type FKE Series
Specialty Fuses 700A 690V 3FKE/90 AR UC
Manufacturer: Eaton - Electronics Division
Catalog
Specialty Fuses 700A 690V 3FKE/90 AR UC
Beta
⌘K
Specialty Fuses 700A 690V 3FKE/90 AR UC
Specialty Fuses 700A 690V 3FKE/90 AR UC
Specialty Fuses 700A 690V 3FKE/90 AR UC
| Part | Mounting Type | Current Rating (Amps) | Breaking Capacity @ Rated Voltage | Voltage Rating - AC | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Applications | Approval Agency | Size / Dimension [z] | Size / Dimension [y] | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | Bolt Mount | 1000 A | 100 kA | 1 kVAC | Rectangular Blade | 61 mm | 74 mm | 2.402 " | 3.032 " | 77 mm | 2.913 in | Electrical Industrial | CSA UR | |||
 Eaton - Electronics Division | Bolt Mount | 700 A | 200 kA | 700 VAC | Rectangular Blade | 53 mm | 50 mm | 2.087 " | 2.717 in | 69 mm | 1.969 " | Electrical Industrial | CE CSA UR | |||
Eaton - Electronics Division | Bolt Mount | 400 A | 200 kA | 700 VAC | Rectangular Blade | 61 mm | 50 mm | 2.402 " | 3.031 " | 77 mm | 1.969 " | Electrical Industrial | CE CSA UR | |||
Eaton - Electronics Division | Bolt Mount | 700 A | 200 kA | 700 VAC | Rectangular Blade | 51 mm | 2.992 in | 3.622 in | 2.008 " | Electrical Industrial | CE CSA UR | 92 mm | 76 mm | |||
 Eaton - Electronics Division | Bolt Mount | 250 A | 100 kA | 1.3 kVAC | Rectangular Blade | 45 mm | 74 mm | 1.772 in | 2.323 in | 59 mm | 2.913 in | Electrical Industrial | CSA UR | 9200 |
