DEUTSCH DT Highspeed Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

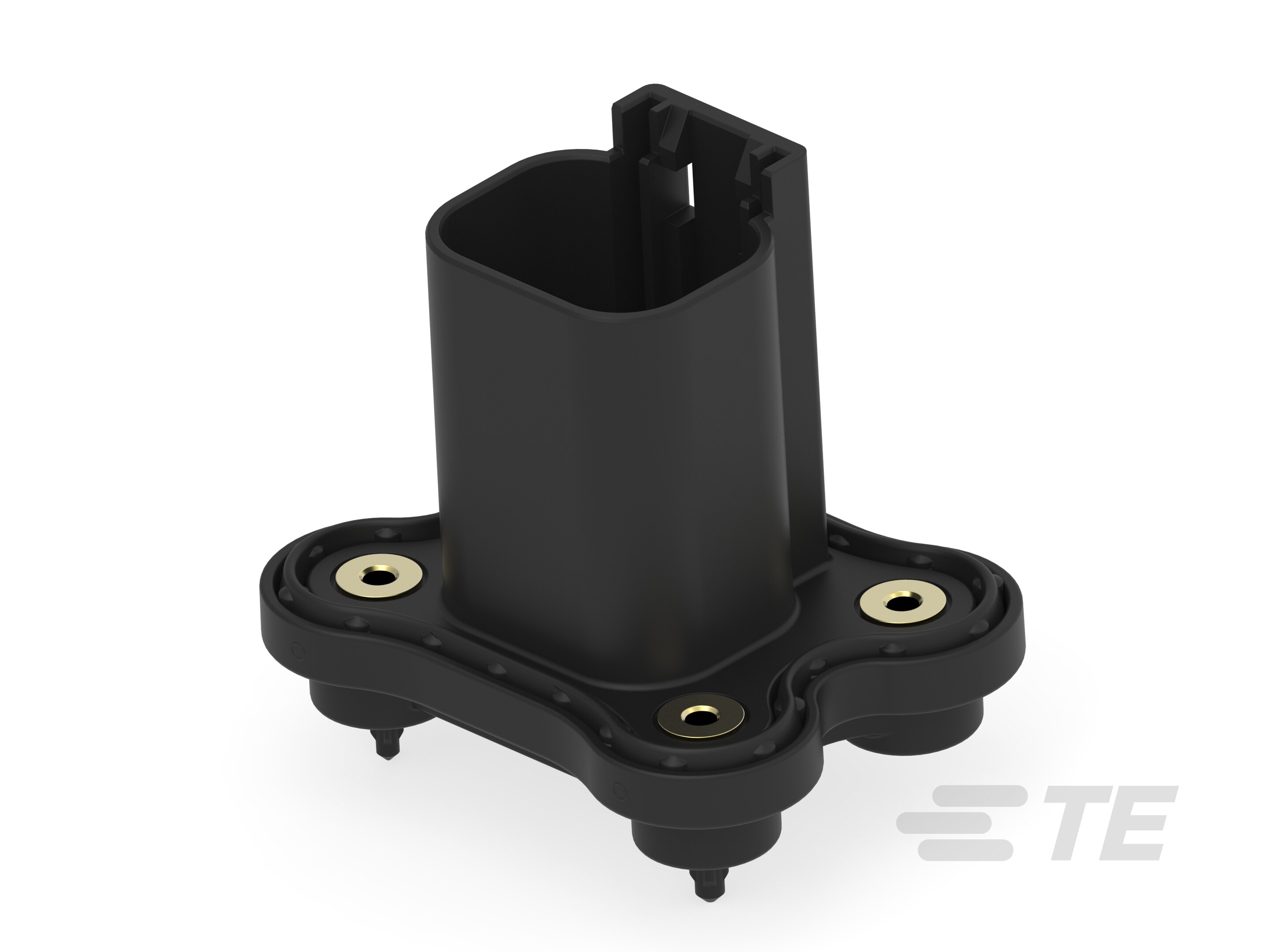

2POS,PIN CSS SIZE 20,HDR ASSY,180DEG
| Part | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Number of Positions | Contact Finish - Post | Insulation Material | Contact Finish - Mating | Termination | Contact Shape | Contact Material | Fastening Type | Insulation Color | Shrouding | Number of Rows | Connector Type | Mounting Type | Current Rating (Amps) | Contact Type | Style | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Features | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 4 mm | 0.157 in | All | 2 | Tin | Polybutylene Terephthalate (PBT) Glass Filled | Gold | Solder | Circular | Brass | Push-Pull | Black | Shrouded - 4 Wall | 1 | Header | Through Hole | 7.5 A | Male Pin | Board to Cable/Wire | 125 °C | -40 C | UL94 V-0 | Board Guide Mounting Flange | |

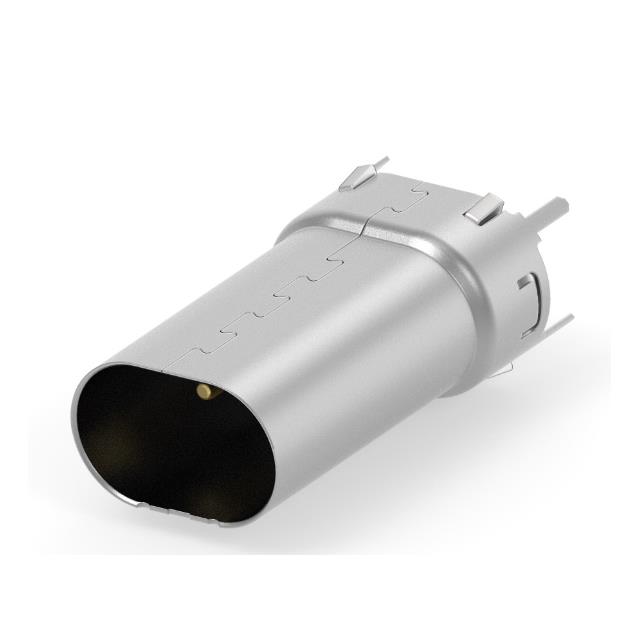

 TE Connectivity AMP Connectors | 2 | Shield | ||||||||||||||||||||||

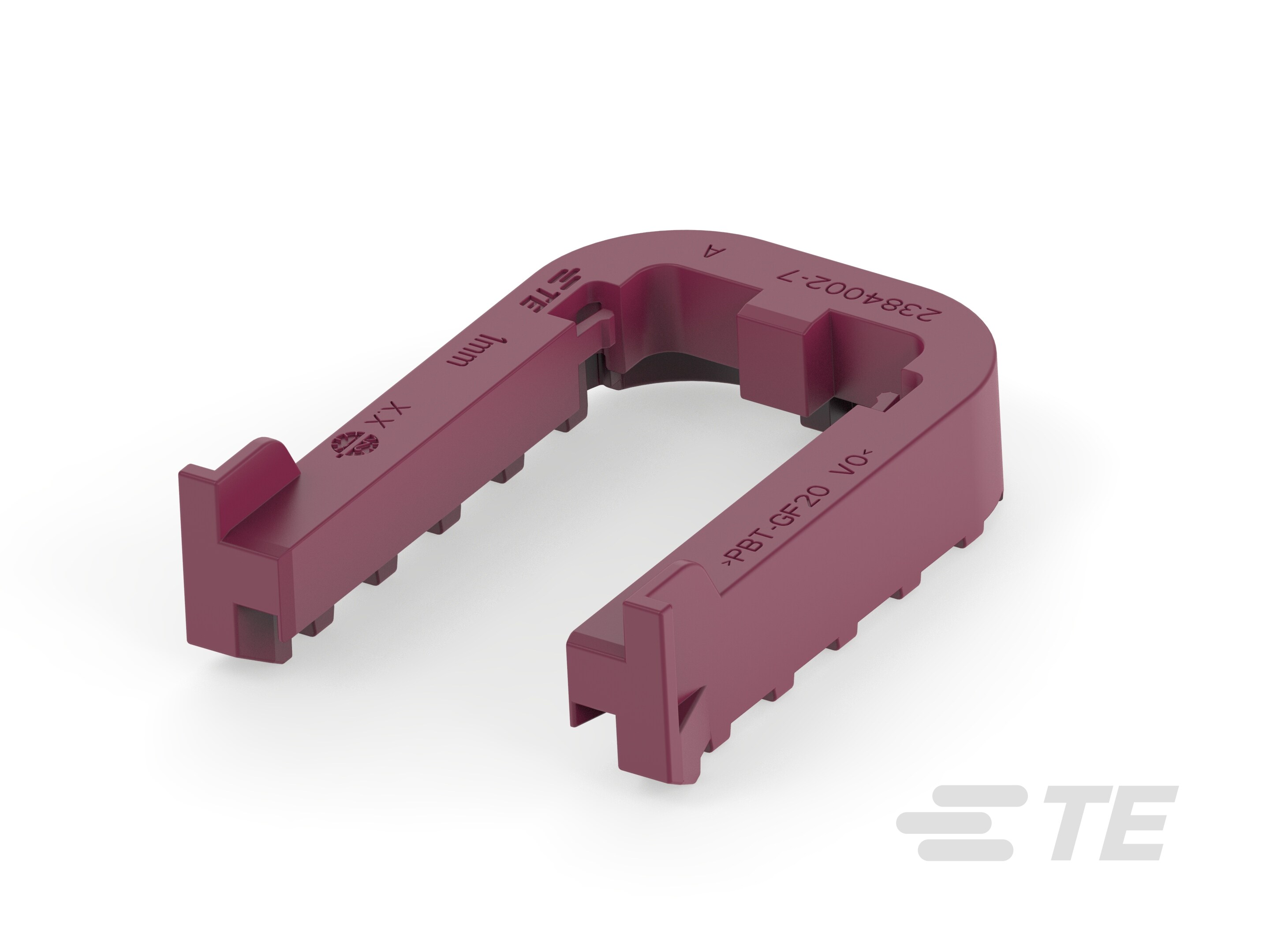

 TE Connectivity AMP Connectors | Locking Slide |
