2314938 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

2P,2MM,BB,REC,SRHZ,2.8,0.76AU,TU

Part	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Type	Contact Finish - Post	Material Flammability Rating	Contact Shape	Number of Rows	Insulation Color	Number of Positions Loaded	Number of Positions	Connector Type	Mounting Type	Voltage Rating	Fastening Type	Insulation Material	Termination	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]

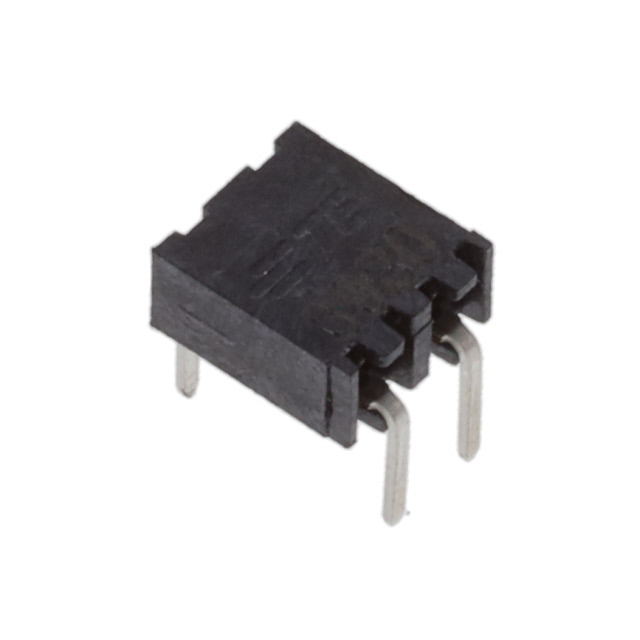

TE Connectivity Raychem Cable Protection 2314938-2	2.1 mm	0.083 "	0.11 in	2.79 mm	125 °C	-40 °C	0.3 µm	12 µin	Phosphor Bronze	Female Socket	Tin	UL94 V-0	Square	1	Black	All	2	Receptacle	Through Hole Right Angle	125 VDC	Push-Pull	Liquid Crystal Polymer (LCP)	Solder	2 A	0.079 in	2 mm	30 Áin	0.76 Ám	Gold

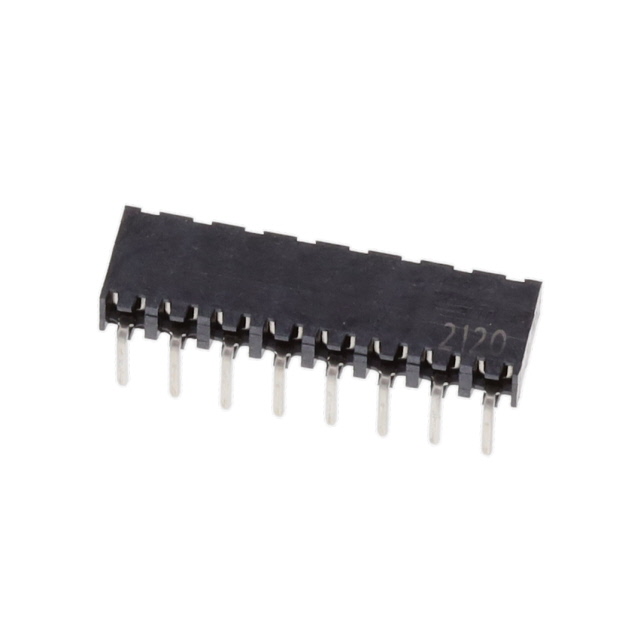

TE Connectivity Raychem Cable Protection 2314938-8	2.1 mm	0.083 "	0.11 in	2.79 mm	125 °C	-40 °C	0.3 µm	12 µin	Phosphor Bronze	Female Socket	Tin	UL94 V-0	Square	1	Black	All	8	Receptacle	Through Hole Right Angle	125 VDC	Push-Pull	Liquid Crystal Polymer (LCP)	Solder	2 A	0.079 in	2 mm	30 Áin	0.76 Ám	Gold

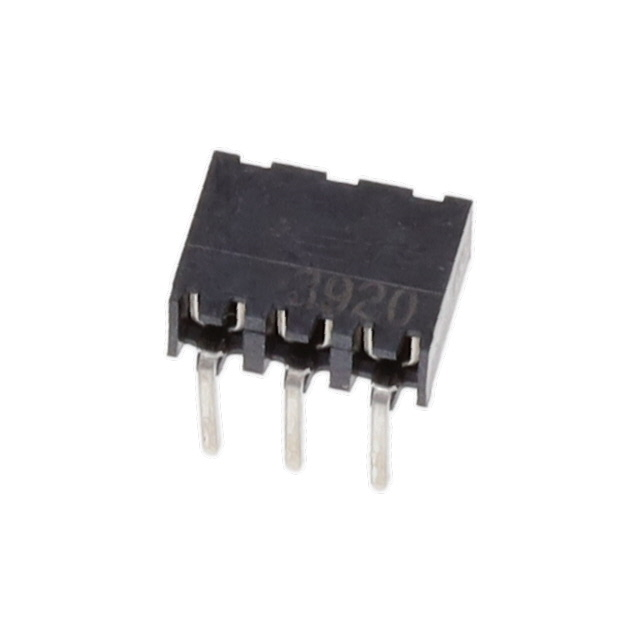

TE Connectivity Raychem Cable Protection 2314938-3			0.11 in	2.79 mm	125 °C	-40 °C	3 µm	118.1 µin	Phosphor Bronze	Female Socket	Tin	UL94 V-0	Square	1	Black	All		Receptacle	Through Hole Right Angle	125 VDC	Push-Pull	Liquid Crystal Polymer (LCP)	Solder	2 A	0.079 in	2 mm	30 Áin	0.76 Ám	Gold	0.08 in	2.03 mm

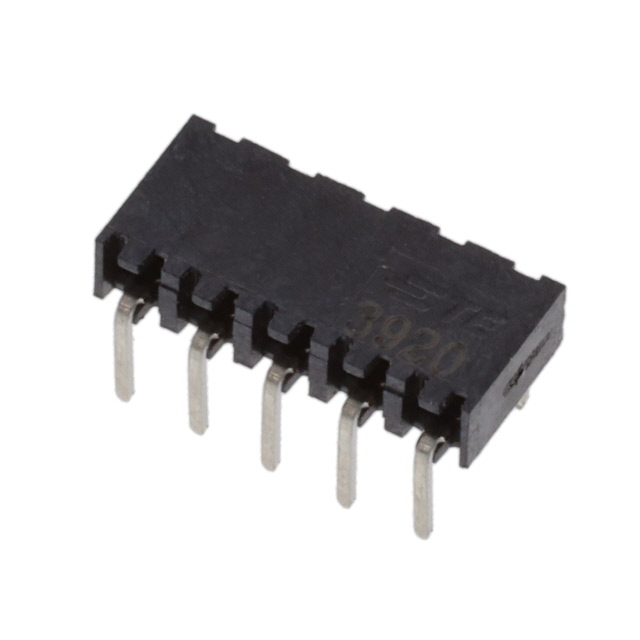

TE Connectivity Raychem Cable Protection 2314938-5	2.1 mm	0.083 "	0.11 in	2.79 mm	125 °C	-40 °C	0.3 µm	12 µin	Phosphor Bronze	Female Socket	Tin	UL94 V-0	Square	1	Black	All		Receptacle	Through Hole Right Angle	125 VDC	Push-Pull	Liquid Crystal Polymer (LCP)	Solder	2 A	0.079 in	2 mm	30 Áin	0.76 Ám	Gold

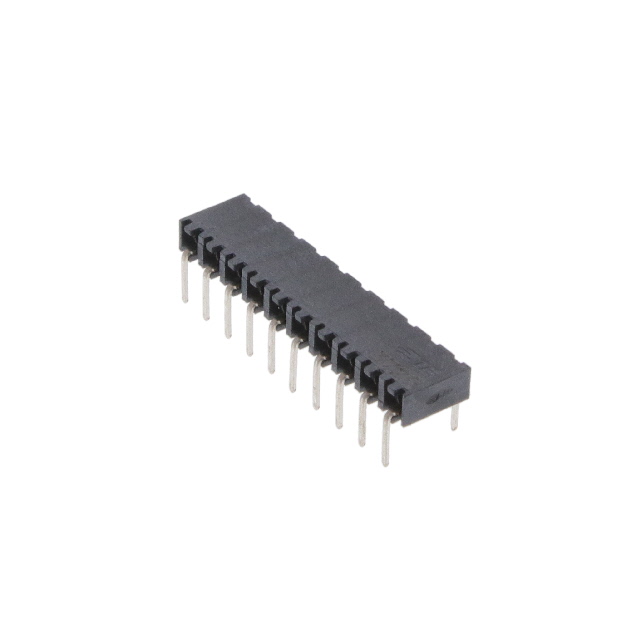

TE Connectivity Raychem Cable Protection 1-2314938-0			0.11 in	2.79 mm	125 °C	-40 °C	0.3 µm	12 µin	Phosphor Bronze	Female Socket	Tin	UL94 V-0	Square	1	Black	All	10	Receptacle	Through Hole Right Angle	125 VAC	Push-Pull	Liquid Crystal Polymer (LCP)	Solder	2 A	0.079 in	2 mm	30 Áin	0.76 Ám	Gold	0.08 in	2.03 mm
